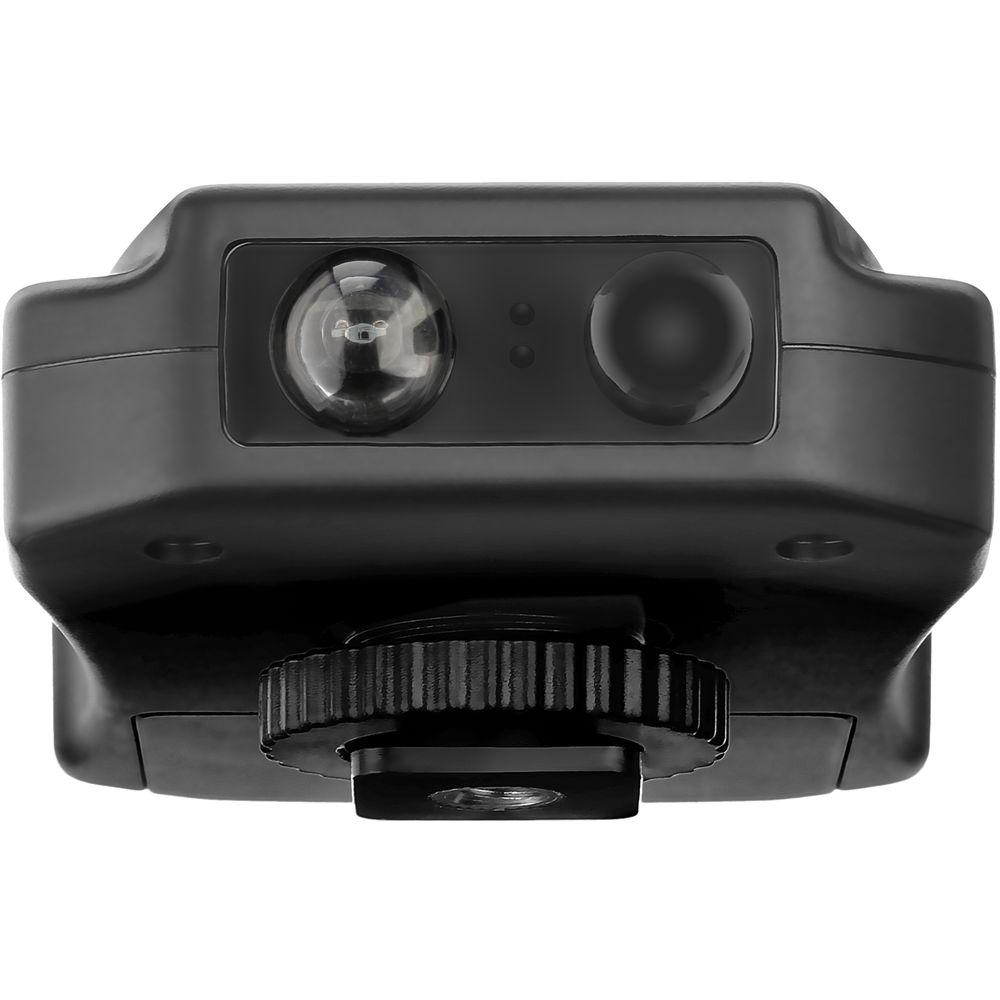

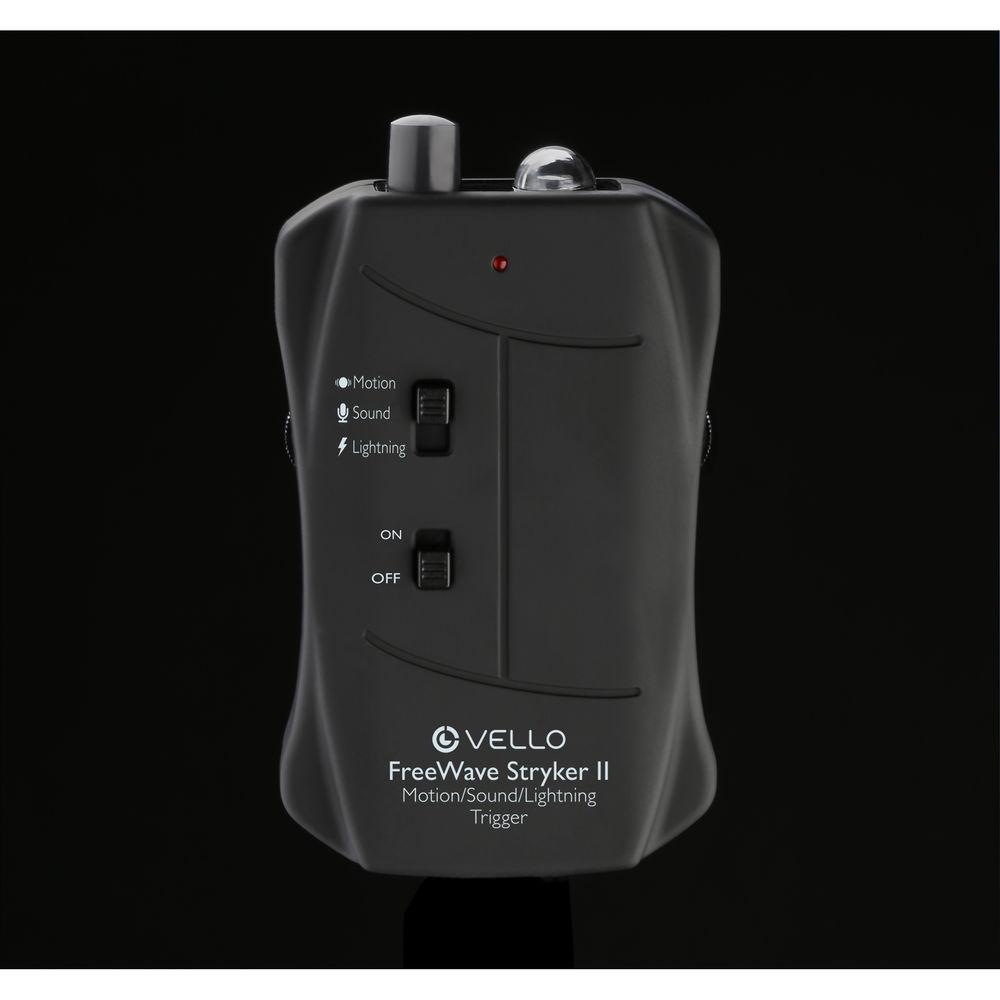

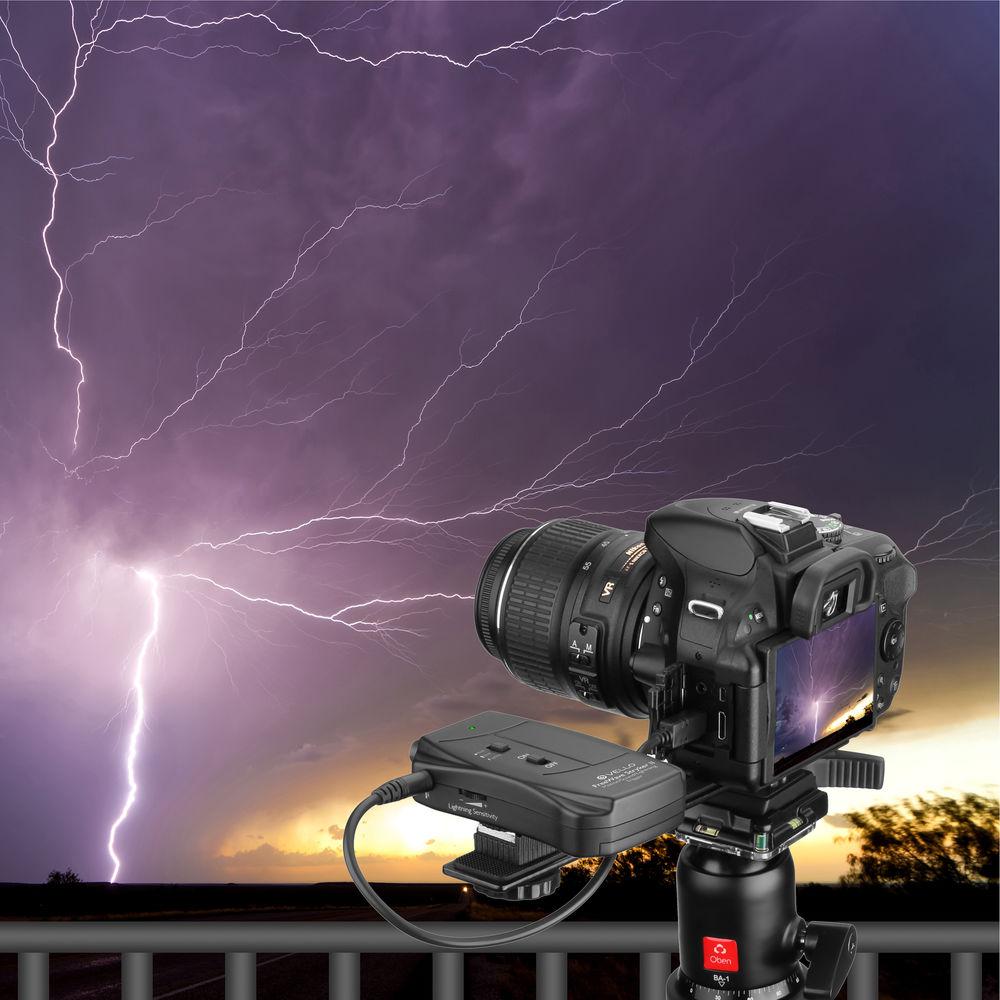

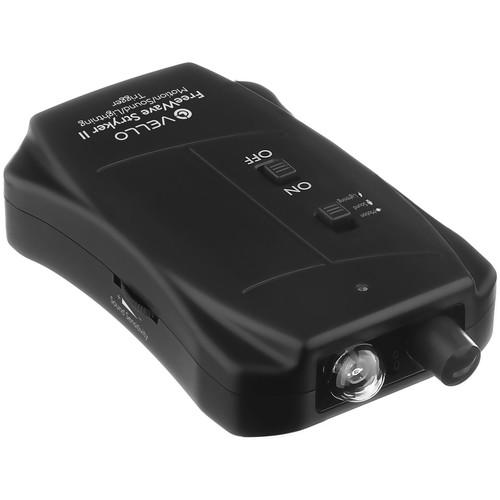

Product description For capturing short-lived scenes and unpredictable objects, a dedicated device such as the FreeWave Stryker II Motion/Sound/Lightning Trigger from Vello will help photographers by triggering a Nikon camera after detecting motion, sound, or a lightning flash. The portable unit features a passive IR sensor with a 16.4' range to detect motion and has an angle of view of 94° H x 82° V, allowing fast-moving subjects to be captured with ease. Also, for items that make a distinct noise, like a popping balloon, a microphone is incorporated into the unit to detect sound from up to 6.5' away when outdoors. Along with this, a light sensor can be used to help capture lightning by registering bright flashes of light and triggering within 0.1 ms.

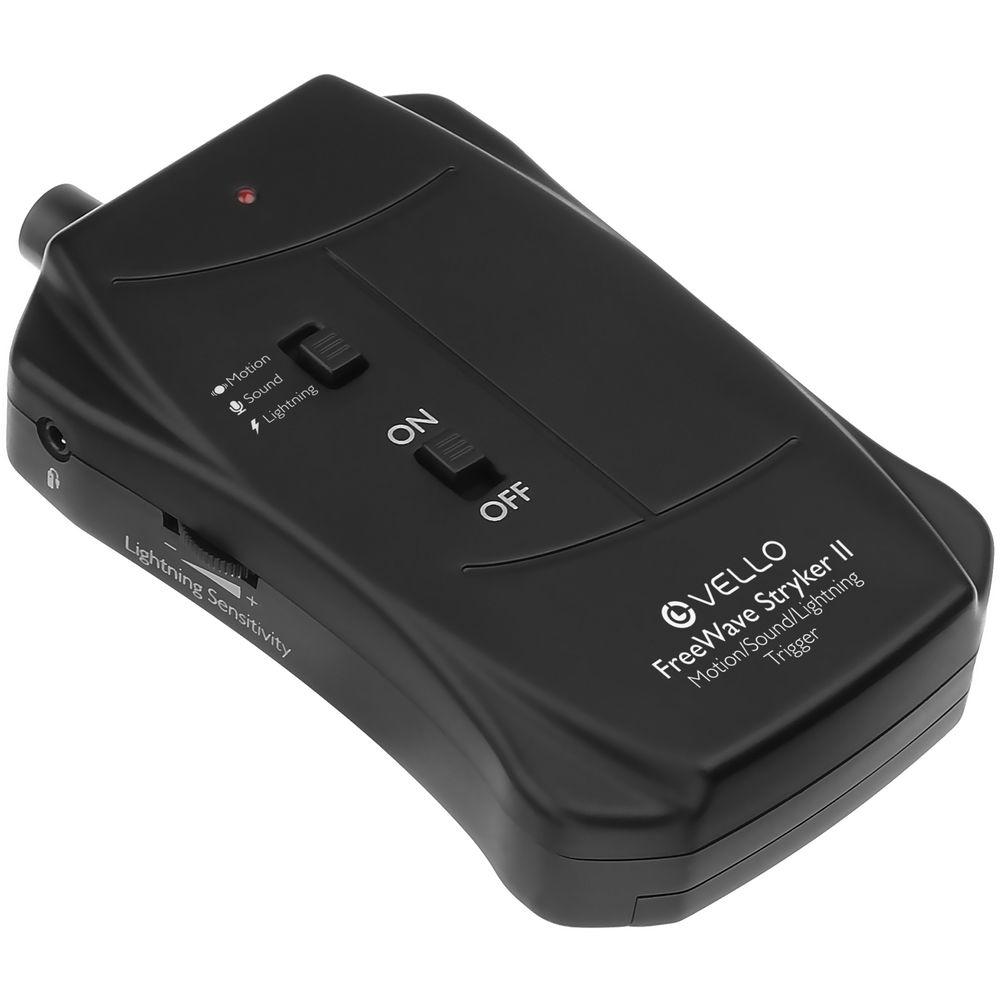

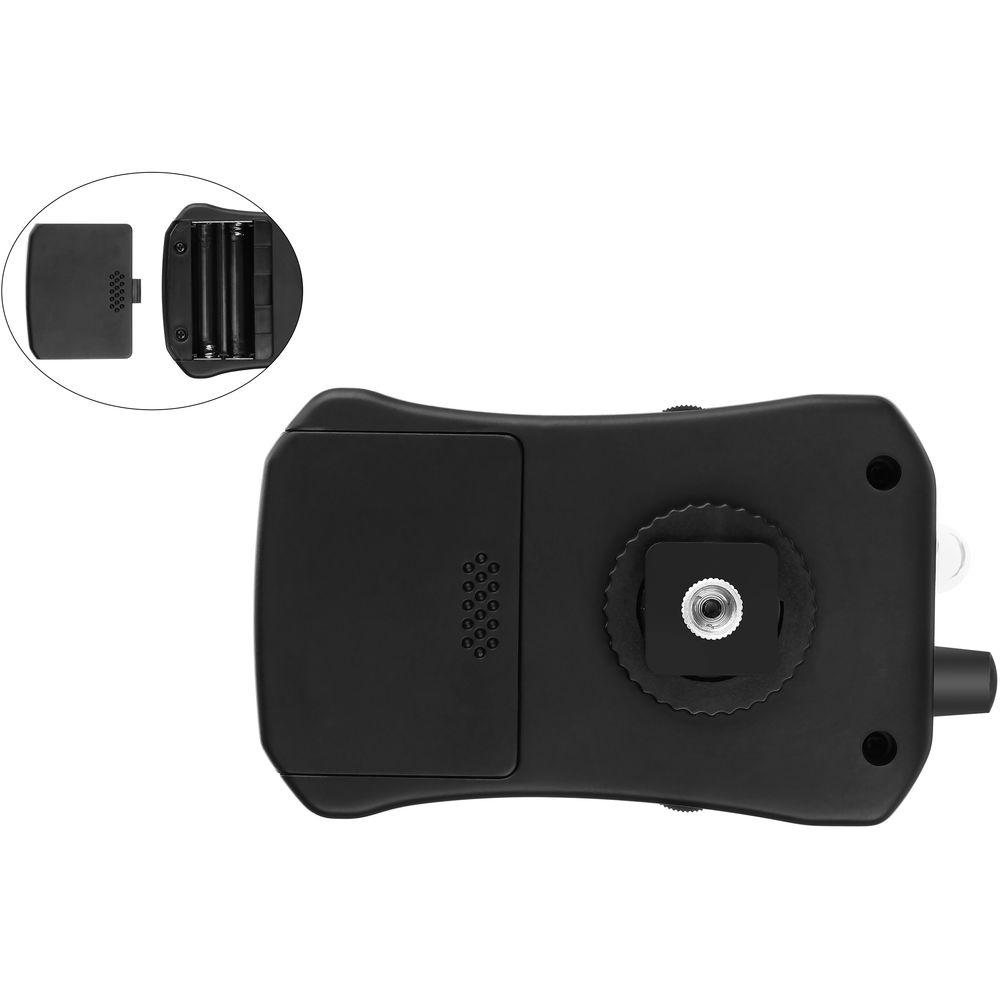

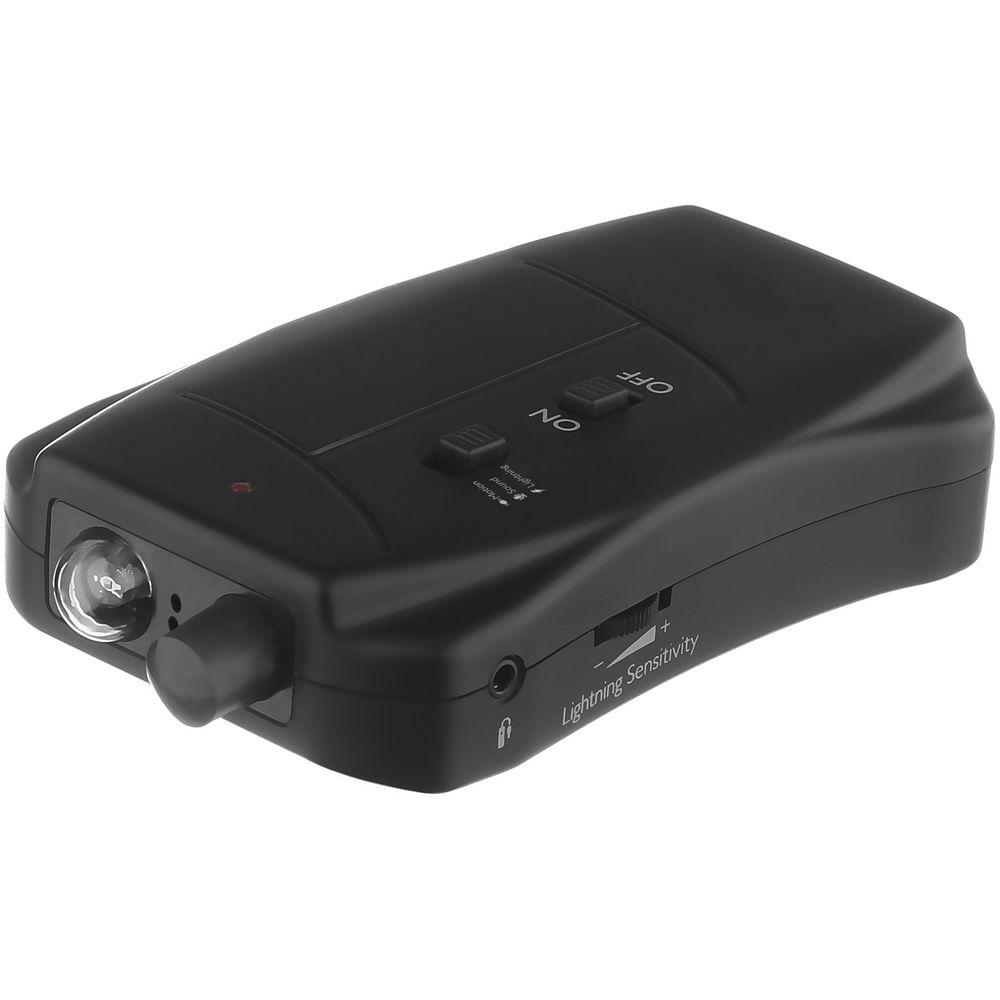

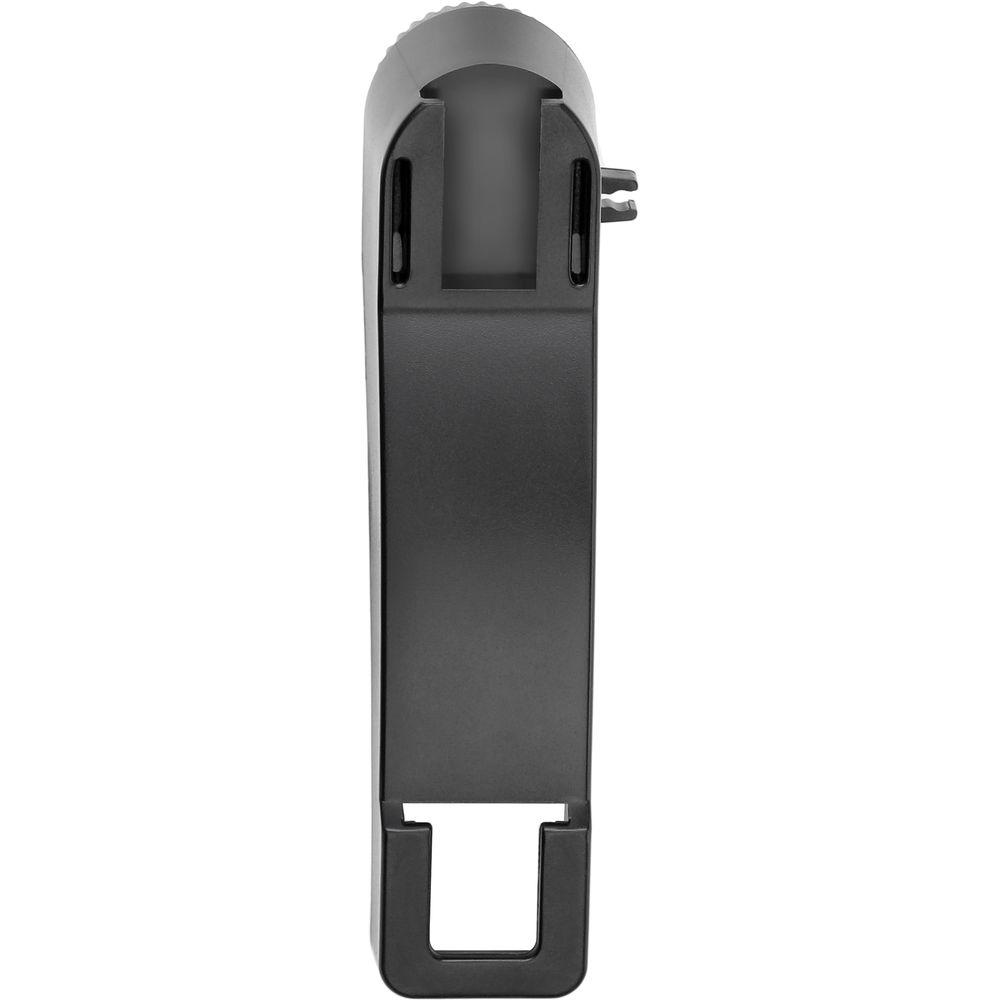

In order to adjust sensitivity, dials for lightning and sound are available on each side of the unit. It easily connects to a camera using the included 2.5mm remote cables. Also, it mounts via a locking foot or a 1/4"-20 thread, permitting use on camera, stand, or other support system. Included with the camera is a mounting arm, which slides into the camera's hot shoe and extend the trigger's sensors to avoid interference. Additionally, it runs on two AAA batteries. - Detects motion, sound, and lightning
- Light sensor response time of just 0.1 ms
- Motion sensor has an effective range of 16.4' and field of view of 94° H x 82° V
- Sensitivity dials for lightning and sound
- Microphone is rated to pick up sounds from up to 6.5' away when outdoors or up to 11.5' indoors
- LED indicator lights up when sensitivity is set too high for current environment
- Uses 2.5mm remote cables to connect to camera
- Compatible Cameras
- Nikon: D1, D1H, D1X, D2, D2H, D2Hs, D2X, D2Xs, D3, D3s, D3x, D4, D4s, D5, D200, D300, D300s, D500, D700, D800, D800e, D810 and D850
Df, D90, D600, D610, D750, D3100, D3200, D3300, D5000, D5100, D5200, D5300, D7000 and D7100; CoolPix A, P7700, P7800
Fuji: S3 and S5

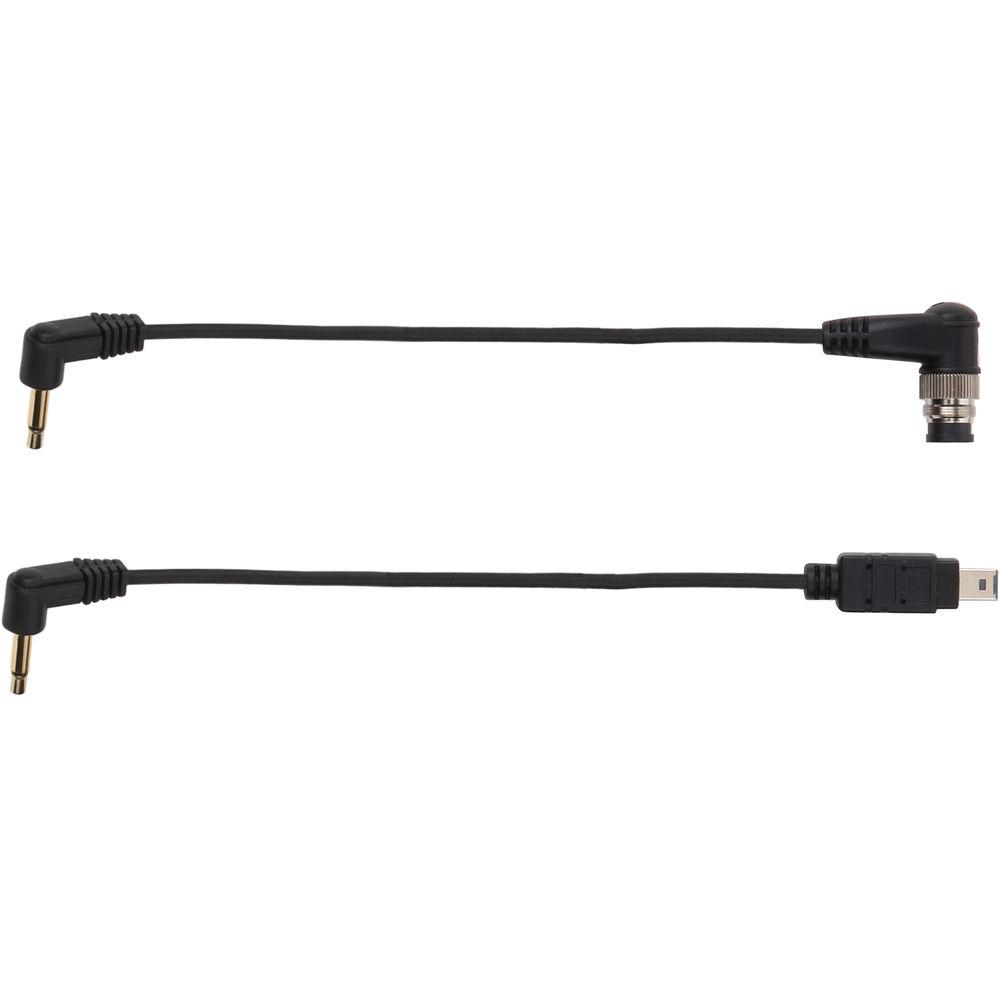

Kodak: DCS-14N UPC: 847628594715 In the Box Vello FreeWave Stryker II Motion/Sound/Lightning Trigger for Select Nikon Cameras 2.5mm Remote Shutter Release Cable for Nikon 10-Pin Cameras trsqfbqbaezabxatweaxufbqdrfb 2.5mm Remote Shutter Release Cable for Nikon DC-2 Cameras Mounting Arm Limited 1-Year Warranty User Manual PDF 695.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FreeWave Stryker II Motion Sound Lightning Trigger for Select Nikon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVello RC-LMNII Specs | Motion Detection Range | 16.4' / 5 m | | PIR Detection Area | Horizontal: 94°
Vertical: 82°
64 zones | | IR Temperature Detection | 39.2°F / 4°C | | Response Time | Lightning: 0.1 ms | | Sound Level | Volume: 0 dB
Range: 6.5' / 2 m outdoors; 11.5' / 3.5 m indoors | | Power Source | 2 x AAA batteries | | Dimensions | 1.2 x 4.1 x 2.4" / 3 x 10.4 x 6.1 cm | | Weight | 1.9 oz / 54 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.6 x 5.8 x 1.8" |
