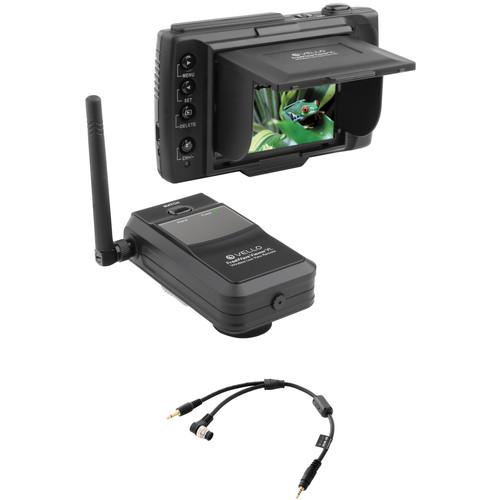

User Manual for Vello FreeWave Viewer VL Wireless Live View Remote Kit with AV Shutter Cable for Select Nikon Cameras Click to enlarge the picture
Contents of the user manual for the Vello FreeWave Viewer VL Wireless Live
- Product category: Shutter Releases Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Shutter Releases
|
User manual for the Vello FreeWave Viewer VL Wireless Live contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More The Vello FreeWave Viewer VL Wireless Live View Remote Kit with AV/Shutter Cable for Select Nikon Cameras from is a transmitter and 3.5" monitor kit that includes a FreeWave Viewer VL Data Cable designed for use with the Nikon D200, D300, D700, D2X, D2Xs, D2H, & D2Hs for attaching the transmitter to the camera for proper operation. This system allows for wireless viewing and remote shutter triggering of your compatible DSLR camera. The Vello FreeWave Viewer VL Wireless Live View Remote consists of a 2.4GHz radio transmitter, and a monitor receiver with a 3.5" Live View TFT-LCD screen. Together, the transmitter and receiver provide a wireless viewing system that enables remote shutter control from a distance of up to 328'/100m. The live view monitor features a 3.5" display with a 320 x 240 resolution that is able to provide a view of what your camera is seeing. A removable pop-up shade allows for improved viewing when shooting in direct sunlight or brightly lit situations. The monitor's design integrates a remote shutter release button that supports half-press control for pre-focusing. A dedicated button allows switching between AV (live view) and CCTV modes for different perspectives of monitoring, and a channel switch button permits changing between different transmitter channels. A 1/4"-20 tripod mount is located on the bottom of the unit for hands free viewing. Both the brightness and contrast of the display can be manually controlled. The transmitter can be attached to the camera via its hot shoe, and connects to the camera using the included Y-cable. The AV connection provides the live view signal for remote viewing on the monitor, and the shutter release connection allows for wirelessly triggering the shutter from the monitor. A CCTV camera is integrated into the transmitter's design and incorporates a 45mm lens (35mm equivalent focal length) to provide another perspective for viewing subjects in front of the camera. The CCTV camera is especially useful to monitor when a moving subject is about to enter the frame for situations when you're using a telephoto or long lens to photograph. Additionally this camera's functionality is ideal for use when the connected camera does not support live view or if trying to conserve the camera's battery life for extended viewing sessions. The 2.4GHz radio transmitter has four selectable channels for greater control when more than one unit is being used within 328' proximity. - Vello FreeWave Viewer VL Wireless Live View Remote The Vello FreeWave Viewer VL Wireless Live View Remote consists of a 2.4GHz radio transmitter, and a monitor receiver with a 3.5" Live View TFT-LCD screen. Together, the transmitter and receiver provide a wireless viewing system that enables remote shutter control from a distance of up to 328'/100m. The main feature of this unit is that it can also start and stop video recording on select Canon cameras by means of the optional FW-IRC IR cable.
The live view monitor features a 3.5" display with a 320 x 240 resolution that is able to provide a view of what your camera is seeing. A removable pop-up shade allows for improved viewing when shooting in direct sunlight or brightly lit situations. The monitor's design integrates a remote shutter release button that supports half-press control for pre-focusing. A dedicated button allows switching between AV (live view) and CCTV modes for different perspectives of monitoring, and a channel switch button permits changing between different transmitter channels. A 1/4"-20 tripod mount is located on the bottom of the unit for hands free viewing. Both the brightness and contrast of the display can be manually controlled.
The transmitter can be attached to the camera via its hot shoe, and connects to the camera using a required data cable. The AV connection provides the live view signal for remote viewing on the monitor and the shutter release connection allows for wirelessly triggering the shutter from the monitor. A CCTV camera is integrated into the transmitter's design and incorporates a 45mm lens (35mm equivalent focal length) to provide another perspective for viewing subjects in front of the camera. The CCTV camera is especially useful to monitor when a moving subject is about to enter the frame for situations when you're using a telephoto or long lens to photograph. Additionally this camera's functionality is ideal for use when the connected camera does not support live view or if trying to conserve the camera's battery life for extended viewing sessions. The 2.4GHz radio transmitter has four selectable channels for greater control when more than one unit is being used within 328' proximity.
In order to use the FreeWave Viewer VL, the purchase of the correct camera-compatible data cable for your camera is required. - The remote viewer allows you to shoot in single shot, continuous, bulb, self timer, or video modes, when the camera is set to that mode as well.
- The screen's brightness and contrast can be controlled in five incremental adjustments.
- The viewer has a built-in memory that can hold up to 100 images taken with the transmitter's camera.
UPC: 847628571419 - Vello FreeWave Viewer VL AV & Shutter Release Cable for Nikon Cameras with 10 Pin Connection The FreeWave Viewer VL AV & Shutter Release Cable for Nikon Cameras with 10 Pin Connection from Vello will connect your camera to the FreeWave Viewer VL transmitter and allow the transmitter to send a live preview feed to the viewer. One end of the cable connects to the transmitter, and the other end to the camera. The side of the cable that connects to the camera splits in two; one side is a 3.5mm AV connection for sending the video signal to your viewer, and the other is a 10 pin connection for the shutter release to fire the camera.
- Compatible with the following Nikon cameras: D200, D300, D700, D2X, D2Xs, D2H, D2Hs
UPC: 847628573093 In the Box - FreeWave Viewer VL Wireless Live View Remote tqtawrrrttac
- Transmitter
- Viewer
- Removable Pop-Up Shade
- USB Wall Charger
- 2 x NP-60 (Fuji type) Li-ion Batteries
- AV Cable
- Wrist Strap
- Limited 1-Year Warranty
- FreeWave Viewer VL AV & Shutter Release Cable for Nikon Cameras with 10 Pin Connection
User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FreeWave Viewer VL Wireless Live View Remote Kit with AV Shutter Cable for Select Nikon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vello FreeWave Viewer VL Wireless Live View Remote
| Radio Frequency | 2.4 GHz | | Wireless Range | 328' (100 m) | | Monitor | 3.5" (8.9 cm) TFT LCD | | Monitor Resolution | 320 x 240 | | Number of Channels | 4 | | CCTV Lens Focal Length | 45mm (35mm equivalent) | | Transmitter Input/Output | Mini in, IR out, Mini USB | | Viewer Input/Output | Mini composite video out, Mini USB | | Power Source | Fuji-type NP-60 rechargeable Li-ion batteries (1 for transmitter, 1 for viewer) | | Dimensions | Transmitter: 3.4 x 2.0 x 1.6" (8.6 x 5.1 x 4.1 cm)
Viewer: 5.0 x 3.1 x 1.2" (12.7 x 7.9 x 3.0 cm) | | Weight | Transmitter: 4 oz (113.4 g)
Viewer: 7.2 oz (204.1 g) | | | | Box Dimensions (LxWxH) | 9.0 x 7.3 x 2.4" | - Vello FreeWave Viewer VL AV & Shutter Release Cable for Nikon Cameras with 10 Pin Connection
| | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 0.5" |
