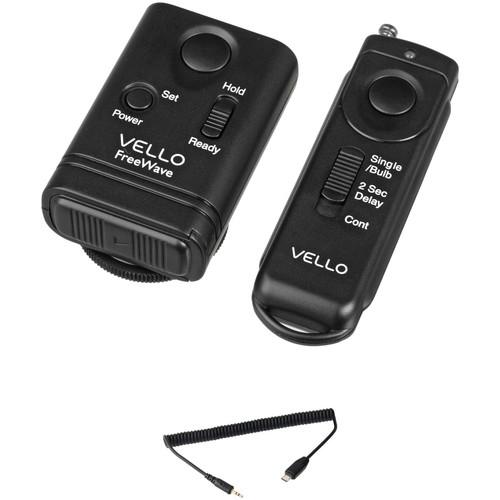

User Manual for Vello FreeWave Wireless Remote Shutter Release Kit for Select Sony Cameras Click to enlarge the picture
Contents of the user manual for the Vello FreeWave Wireless Remote Shutter Release
- Product category: Shutter Releases Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Shutter Releases
|
User manual for the Vello FreeWave Wireless Remote Shutter Release contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More The Vello FreeWave Wireless Remote Shutter Release Kit for Select Sony Cameras from B&H combines the versatile FreeWave Wireless Remote Shutter Release with the release cables that enable the remote to work with most Sony cameras that will accept a remote shutter release. The Freewave Wireless Remote allows you to shoot your camera from a distance of up to 320' and because it uses radio frequency technology a direct line of sight is not necessary. Shooting with a remote is beneficial for numerous photographic applications from shooting wildlife, where getting too close is a problem, to macro shooting, when even touching the camera poses difficulties, to working with a model where constant eye contact is important. This remote model includes the release cables needed for most Canon cameras and provides compatibility as such. However, because the remote also fits on Sony's Multi-Interface shoe and because this kit also includes a Sony Multi-Terminal type shutter release cables, this kit is now compatible with the following Sony cameras:
Sony: Alpha a58, a77 II, a99 II, a3000, a5000, a6000, a6300, a6500, a7, a7 II, a7R, a7R II, a7R III, a7S, a7S II, a9; DSC-RX1R II, RX10, RX10 II, RX10 III, RX10 IV, RX100 II, RX100 III, RX100 IV, RX100 V, HX50V, HX90V, HX300, HX400, HX400V - Vello FreeWave Wireless Remote Shutter Release (Canon Sub-Mini Connection) Whether capturing images in the studio or on location, the Vello FreeWave Wireless Remote Shutter Release adds flexibility and versatility to your shooting style. Photography unplugged - shooters can interact with a model, view the scene or set from alternate angles, or set a camera by a stream to capture an image of a bear hunting while you remain at a safe distance away - all this and more without missing a beat, a shot, or a moment. This particular FreeWave unit is compatible with cameras with a sub-mini connection, e.g. Canon EOS Rebel series, R and RP, 80D, PowerShot G15 and G1 X, Contax N and 645, Hasselblad H, Pentax K and DS, Sigma SD and Samsung GX series cameras.This versatile shutter release features Smart Code technology which allows it to be configured to operate on up to 16 million possible radio channels. You can easily switch channels to "zero in" on a frequency that provides optimal range and functionality.The FreeWave operates with radio frequency (RF) technology, therefore a direct line of sight is not necessary; radio waves pass through objects such as windows and walls. It is unlike other wireless remotes on the market that operate on an Infrared (IR) system and require a direct line of sight between transmitter and receiver to make things work.Since touching the camera even lightly while capturing an image can create a blurred image, the FreeWave eliminates this by tripping the shutter without any disturbances. This is critical when photographing subjects close up, and for long-exposures and macros. It is also extremely valuable when photographing nature, wildlife and other subjects that are difficult for you to get close to.
- Compatibility
- Canon EOS: R, RP, M6, M5, 80D, 70D, 60D, 77D (9000D), T7i (800D), T7 (2000D), T6s (760D), T6i (750D), T6 (1300D), T5i (700D), T5 (1200D), T4i (650D), T3i (600D), T3 (1100D), T2i (550D), T1i (500D), XSi (450D), XTi (400D), XT (350D), XS (1000D), Digital Rebel (300D), SL2 (200D), SL1 (100D), Elan series
PowerShot G1 X Mark III, G1 X Mark II, G1 X, G16, G15, G12, G11, G10, G3 X, G5 X, SX70 HS, SX60 HS, SX50 HS
Contax: N and 645
Fujifilm: X-T3, X-T1, X-E2, X-E1, X100T, X30
Hasselblad: H series
Olympus: OM-D E-M1 Mark II
Pentax: K10D, K20D, K100D, K110D, K200D, K-3, K-5, K-5 II, K-7, K30, K-50, K-500, *istDS, DS2, DS, DL2, DL, and D
Samsung: NX10 & NX100; GX-1S, GX-1L, GX-10 & GX-20
Sigma: SD1, SD9, SD10, SD14 & SD15 - Smart Code
- The FreeWave's Smart Code feature allows you to operate on 16,000,000 possible radio channels. No DIP switches need to be set, and one transmitter can trigger multiple receivers. The units have been synchronized at the factory, so your system can work right out of the box. However, to maximize signal quality and range, it is best to use the Smart Code technology to sense the "quiet" frequencies in your environment and re-synchronize on that channel.
- Extended Range
- The FreeWave can fire the camera's shutter from distances up to 320 feet (100 meters).
- Multi-function
- Trigger your camera wirelessly or wired. Wired triggering even works if the receiver battery is dead or missing.
- Dual-Function Release
- Press the transmitter's button half way to focus; press it fully to trigger the shutter.
- Delayed Release
- The two-second delay function gives you extra time to get into position.
- Multi-exposure
- You can take multiple shots with one press of the trigger.
- Long Exposures
- With the FreeWave you can control the length of the exposure remotely.
- LED Indicators
- Two LED indicators confirm pre-focus and exposure when in the wireless mode.
- Versatile
- The FreeWave includes a camera release cable that works with your particular camera model. By simply changing to another cable (additional purchase required) a single receiver can work with many other cameras as well.
UPC: 847628029484 - Vello 2.5mm Remote Shutter Release Cable for Select Sony Cameras with Multi-Terminal This Vello 2.5mm Remote Shutter Release Cable is a coiled cable for connecting a Vello remote shutter release receiver or other remote receiver with a 2.5mm jack to select Sony cameras.
- Compatibility
- Sony: Alpha: a9, a7, a7 II, a7 III, a7R, a7R II, a7R III, a7S, a7S II, a6500, a6400, a6300, a6000, a5100, a5000, a3000, a99 II, a77 II, a68, a58
Cyber-shot: RX1R II, RX10 IV, RX10 III, RX10 II, RX10, RX100 VI, RX100 VA, RX100 V, RX100 IV, RX100 III, RX100 II, HX90V, HX50V, HX400V, HX400, HX300 UPC: 847628582040 In the Box - FreeWave Wireless Remote Shutter Release (Canon Sub-Mini Connection) uuczsxuvswdsabvfrwvecayb
- Wireless RF Receiver
- Wireless RF Transmitter
- 23A 12V Battery for Transmitter
- CR2 3V Battery for Receiver
- 2.5mm Remote Shutter Release Cable for Cameras with 2.5mm Sub-Mini Connections
- Lanyard
- Clip
- User's Manual
- Limited 1-Year Warranty
- 2.5mm Remote Shutter Release Cable for Select Sony Cameras with Multi-Terminal uuczsxuvswdsabvfrwvecayb
User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FreeWave Wireless Remote Shutter Release Kit for Select Sony Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vello FreeWave Wireless Remote Shutter Release (Canon Sub-Mini Connection)
| Release Type | Wireless: RF (Radio Frequency) | | Camera Connection | Canon 2.5mm Sub-mini | | Wireless Frequency | 433 MHz | | Interval Timer/Programmable | No | | Live View | No | | Mobile Device/App-enabled | No | | Shutter Modes | Bulb, Continuous, Single Shot, 2-Second Delay | | Wireless Range | 328'; / 100 m | | Receiver Dimensions | 2.3 x 1.5 x 1.1" / 59.0 x 38.0 x 29.0 mm | | Receiver Power Source | Battery | | Receiver Battery Requirements | 1 x CR2 | | Transmitter Power Source | Battery | | Transmitter Battery Requirements | 1 x 23A | | Transmitter Dimensions | 3.2 x 1.1 x 0.6" / 82.0 x 27.0 x 14.0 mm | | | | Box Dimensions (LxWxH) | 8.4 x 2.8 x 1.3" | - Vello 2.5mm Remote Shutter Release Cable for Select Sony Cameras with Multi-Terminal
| Length | Coiled: Approximately 16" / 40.6 cm
Stretched: Approximately 36" / 91.4 cm | | Connections | 2.5 mm jack to select Sony cameras | | | | Box Dimensions (LxWxH) | 5.0 x 3.0 x 0.3" |
