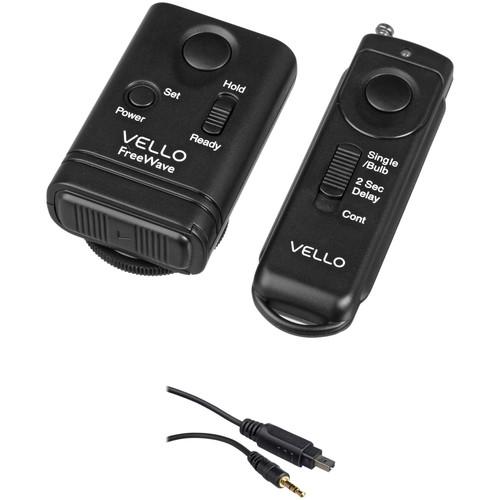

User Manual for Vello FreeWave Wireless Shutter Release Remote for Nikon, Select Fuji & Kodak Kit Click to enlarge the picture
Contents of the user manual for the Vello FreeWave Wireless Shutter Release Remote
- Product category: Shutter Releases Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Shutter Releases
|
User manual for the Vello FreeWave Wireless Shutter Release Remote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More Vello's FreeWave Wireless Shutter Release Remote for Nikon, Select Fuji & Kodak Kit allows you to trip your camera's shutter without disturbing the camera--ideal for wildlife photography, or when you don't want to risk unwanted vibrations creating a less-than-sharp image caused by touching the shutter release button (for very long exposures or macro photography, for instance). A 2-second delay mode is ideal for self-portraits. 16,000,000 possible radio channels ensure that you'll always have a clear signal (there are no dip switches to set--the device configures at the push of a button).
Because this is a radio remote, it can trigger your camera up to 320' (100 m) away, even when it's not in the line of sight of the transmitter (unlike infrared remote controls). You can even trigger your camera from around a corner! Not only can you trigger your shutter with this set, you can set autofocus and trip the shutter using the dual-function release; take multiple shots with a single press of the trigger; control the length of a long exposure; delay the trigger for 2 seconds; trigger your camera either wirelessly or wired (wired triggering works even if the battery in the receiver is dead or missing!); and (with additional optional receivers) trigger multiple cameras at the same time.
LED indicators confirm pre-focus and exposure. The transmitter operates on a 23A 12V battery that will last 3 years under normal circumstances. The receiver uses a CR2 3V battery that's good for approximately 20,000 triggers. The included cable releases work with a wide variety of Nikon cameras, as well as select Fuji and Kodak cameras. By simply using other (optional) cable releases, you can use the transmitter and receiver with dozens of other camera models. Compatible cameras: Nikon: D1, D1H, D1X, D2, D3, D3x, D3s, D2H, D2Hs, D2X, D2Xs, D70s, D80, D200, D300, D300x, D300s, and D700
Fuji: S3 pro and S5 pro
Kodak: DCS-14N - Vello FreeWave Wireless Remote Shutter Release for Nikon w/10-Pin Connection Whether capturing images in the studio or on location, the Vello FreeWave Wireless Remote Shutter Release adds flexibility and versatility to your shooting style. Photography unplugged - shooters can interact with a model, view the scene or set from alternate angles, or set a camera by a stream to capture an image of a bear hunting while you remain at a safe distance away - all this and more without missing a beat, a shot, or a moment. This particular FreeWave unit is compatible with cameras with a 10-pin connection, i.e. Nikon D1, D2, D3 and D4 series DSLRs.This versatile shutter release features Smart Code technology which allows it to be configured to operate on up to 16 million possible radio channels. You can easily switch channels to "zero in" on a frequency that provides the optimal range and functionality.The FreeWave operates with radio frequency (RF) technology, therefore a direct line of sight is not necessary; radio waves pass through objects such as windows and walls. It is unlike other wireless remotes on the market that operate on an Infrared (IR) system and require a direct line of sight between transmitter and receiver to make things work.Since touching the camera even lightly while capturing an image can create a blurred image, the FreeWave eliminates this by tripping the shutter without any disturbances. This is critical when photographing subjects close up, and for long-exposures and macros. It is also extremely valuable when photographing nature, wildlife and other subjects that are difficult for you to get close to.
- Compatibility
- Nikon: D1, D1H, D1X, D2, D2H, D2Hs, D2X, D2Xs, D3, D3s, D3x, D4, D4s, D5, D200, D300, D300s, D500, D700, D800, D800e, D810 and D850
Fuji: S3 and S5
Kodak: DCS-14N - Smart Code
- The FreeWave's Smart Code feature allows you to operate on 16,000,000 possible radio channels. No DIP switches need to be set, and one transmitter can trigger multiple receivers. The units have been synchronized at the factory, so your system can work right out of the box. However, to maximize signal quality and range, it is best to use the Smart Code technology to sense the "quiet" frequencies in your environment and re-synchronize on that channel.
- Extended Range
- The FreeWave can fire the camera's shutter from distances up to 320 feet (100 meters).
- Multi-Function
- Trigger your camera wirelessly or wired. Wired triggering even works if the receiver battery is dead or missing.
- Dual-Function Release
- Press the transmitter's button half way to focus; press it fully to trigger the shutter.
- Delayed Release
- The two-second delay function gives you extra time to get into position.
- Multi-Exposure
- You can take multiple shots with one press of the trigger.
- Long Exposures
- With the FreeWave you can control the length of the exposure remotely.
- LED Indicators
- Two LED indicators confirm pre-focus and exposure when in the wireless mode.
- Versatile
- The FreeWave includes a camera release cable that works with your particular camera model. By simply changing to another cable (additional purchase required) a single receiver can work with many other cameras as well.
UPC: 847628029521 - Vello 2.5mm Remote Shutter Release Cable for Nikon D70s & D80 Cameras The Vello Remote Shutter Release system works with a wide variety of camera models just by swapping out the camera release cable. This Vello 2.5mm Remote Shutter Release Cable will allow you to use your Vello FreeWave, FreeWave Plus, FreeWave Fusion, Wireless ShutterBoss, Captain, and MicroSync series remote with the following cameras:Nikon: D70s and D80 UPC: 847628029286
In the Box - FreeWave Wireless Remote Shutter Release for Nikon w/10-Pin Connection vxctdqrbef
- Wireless RF Receiver
- Wireless RF Transmitter
- 23A 12V Battery for Transmitter
- CR2 3V Battery for Receiver
- 2.5mm Remote Shutter Release Cable for Nikon 10-Pin Cameras
- Lanyard
- Clip
- User's Manual
- Limited 1-Year Warranty
- 2.5mm Remote Shutter Release Cable for Nikon D70s & D80 Cameras
User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FreeWave Wireless Shutter Release Remote for Nikon, Select Fuji & Kodak Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vello FreeWave Wireless Remote Shutter Release for Nikon w/10-Pin Connection
| Release Type | Wireless: RF (Radio Frequency) | | Camera Connection | Nikon 10-pin | | Wireless Frequency | 433 MHz | | Interval Timer/Programmable | No | | Live View | No | | Mobile Device/App-enabled | No | | Shutter Modes | Bulb, Continuous, Single Shot, 2-Second Delay | | Wireless Range | 328'; / 100 m | | Receiver Dimensions | 2.3 x 1.5 x 1.1" / 59.0 x 38.0 x 29.0 mm | | Receiver Power Source | Battery | | Receiver Battery Requirements | 1 x CR2 | | Transmitter Power Source | Battery | | Transmitter Battery Requirements | 1 x 23A | | Transmitter Dimensions | 3.2 x 1.1 x 0.6" / 82.0 x 27.0 x 14.0 mm | | | | Box Dimensions (LxWxH) | 7.3 x 2.8 x 1.3" | - Vello 2.5mm Remote Shutter Release Cable for Nikon D70s & D80 Cameras
| Length | Coiled: 1.5' (0.45 m)
Stretched: 4' (1.2 m) | | Remote Connection | 2.5mm Sub-mini | | | | Box Dimensions (LxWxH) | 4.5 x 3.0 x 0.25" |
