User Manual for Vello Nikon F Lens to Micro Four Thirds Camera Accelerator Lens Adapter Click to enlarge the picture
Contents of the user manual for the Vello Nikon F Lens to Micro
- Product category: Lens Mount Adapters Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Lens Mount Adapters
 |
User manual for the Vello Nikon F Lens to Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|

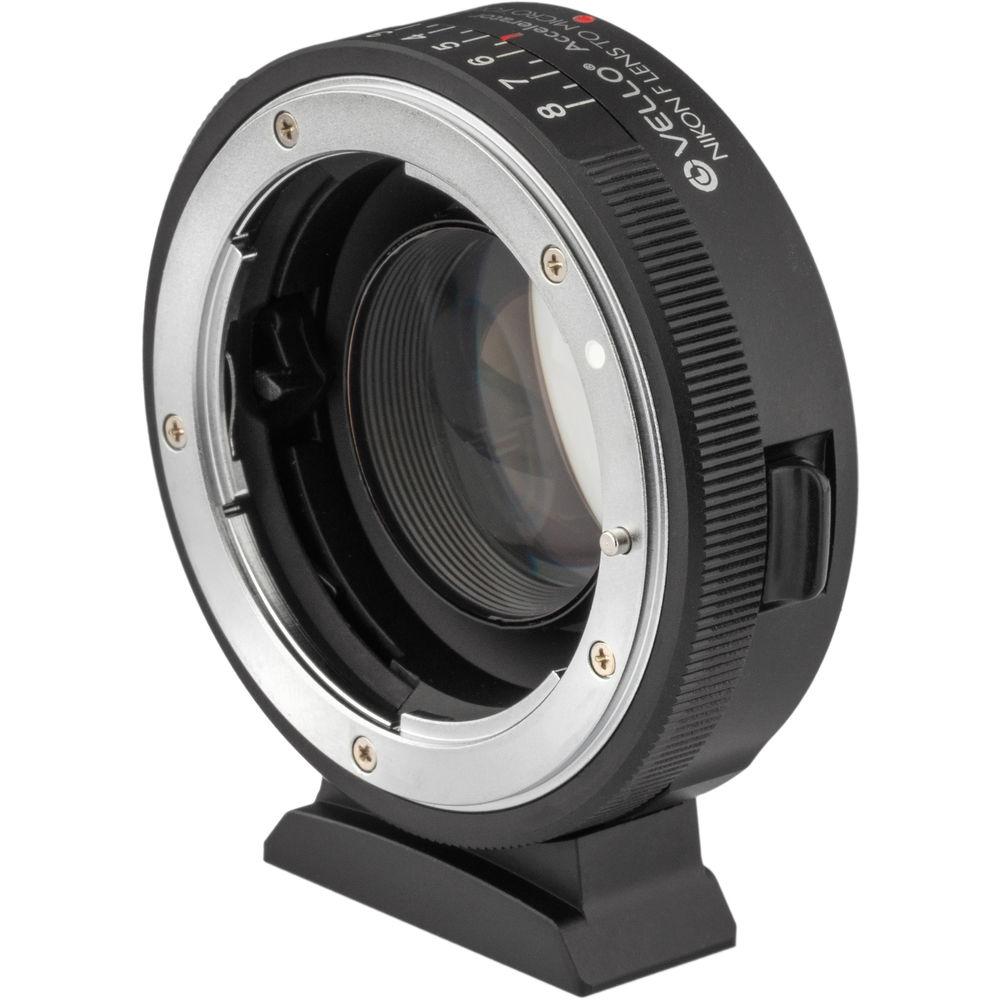

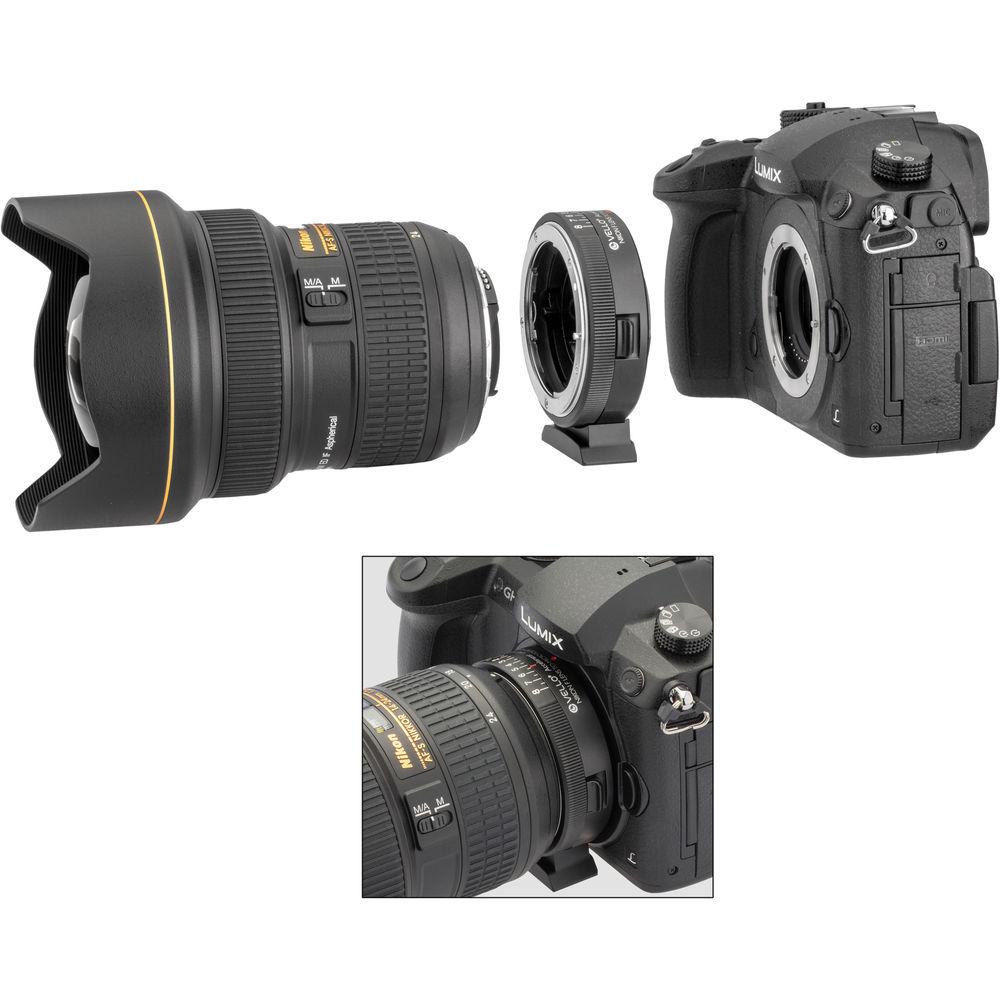

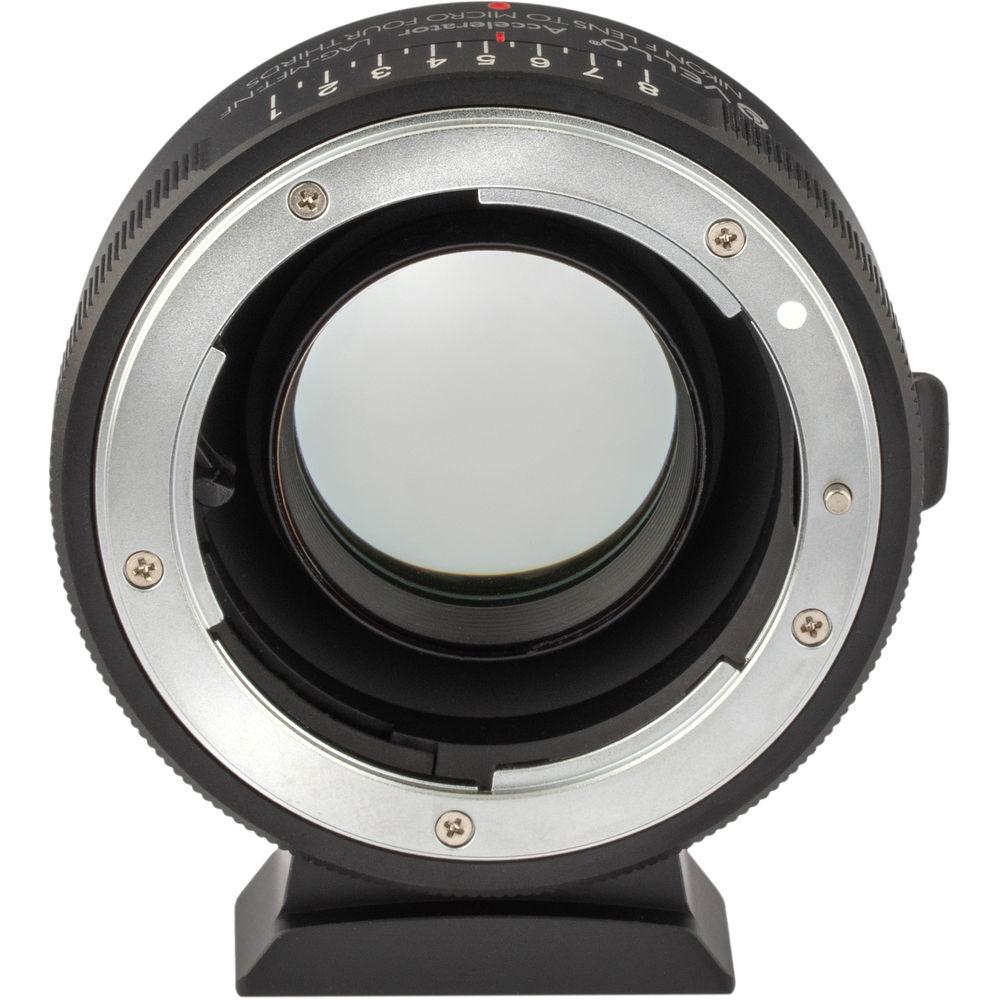

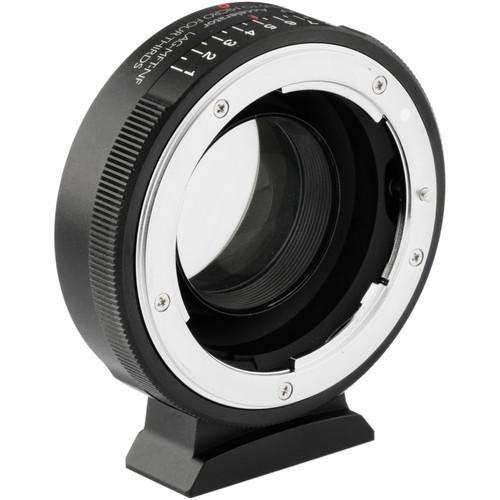

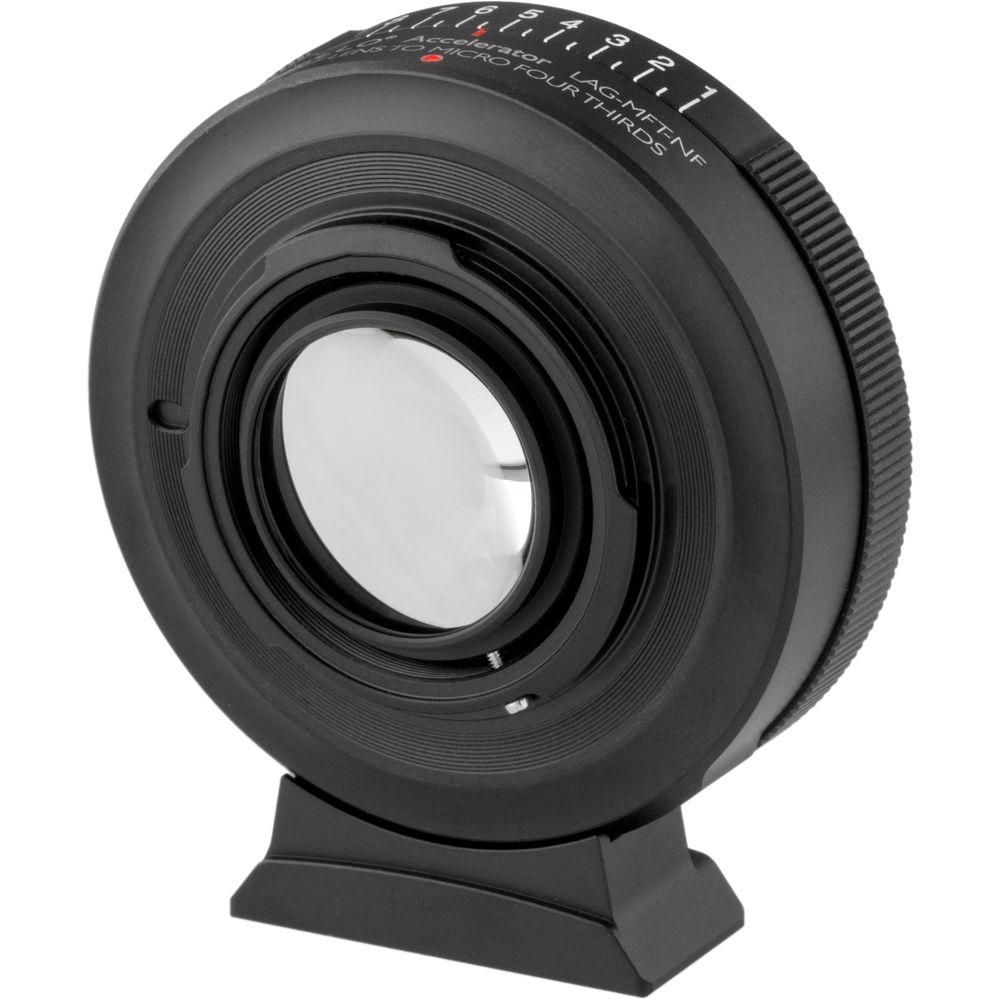

Product description Pair your existing Nikon F-mount full-frame lenses with a Micro Four Thirds mirrorless camera with this Accelerator Lens Adapter from Vello. By using a specialized optical design with 5 elements in 4 groups, the adapter is able to increase a lens' angle of view by a factor of 0.71x while simultaneously increasing the maximum aperture by one whole stop. This allows a 50mm f/1.4 lens on an MFT camera to achieve an equivalent focal length of 71mm while providing it with a f/1.0 equivalent aperture. Along with this, the adapter features a manual aperture ring with an 8-stop range in 1/2-stop increments. The durable metal adapter features a removable tripod foot with 1/4"-20 socket for use on a tripod or support system, alleviating strain on the lens mount. Additionally, the product has a matte black interior to prevent reflections from interfering with image quality. Please note that Nikon E-type lenses, though they will physically fit, will not have aperture control as they do not support the manual aperture ring of the adapter. -
- Adapts full-frame Nikon F-mount lenses to Micro Four Thirds mirrorless cameras
- Magnifies the lens' angle of view by a factor of 0.71x to reduce the effect of the camera's crop factor
- Increases the maximum aperture of the lens by one stop
- Optical design uses five elements in four groups to retain maximum image quality
- Manual aperture ring with 8 stops in 1/2-stop increments

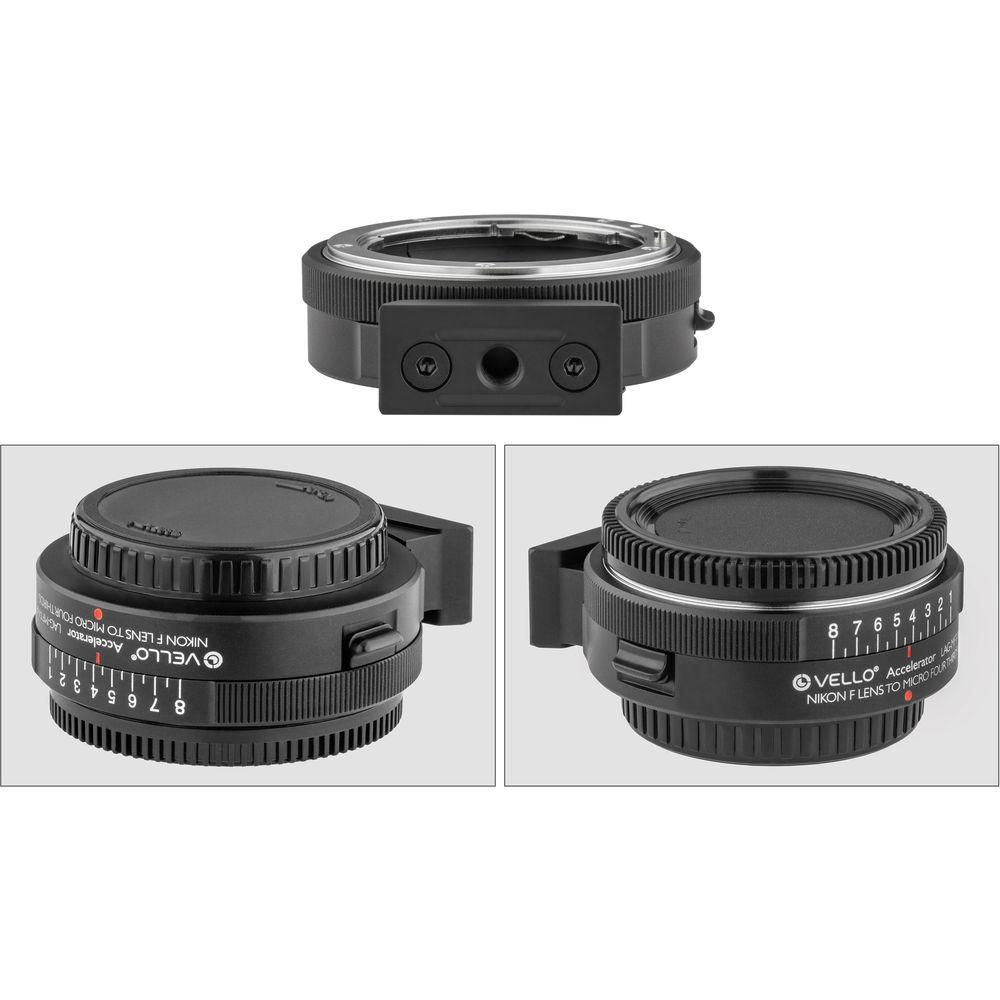

- Removable tripod foot has 1/4"-20 socket for direct mounting on a support system, eliminating unnecessary strain on the camera's lens mount
- Matte black interior helps reduce flare for optimal image quality
- Metal construction for long-term durability
- While Nikon E-type lenses will physically fit, the manual aperture ring function is not supported
UPC: 847628008465 In the Box Vello Nikon F Lens to Micro Four Thirds Camera Accelerator Lens Adapter - Front and Rear Lens Caps
- Removable Tripod Foot
- 2.5mm Hex Wrench
- Protective Case
- Limited 1-Year Warranty
User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello Nikon F Lens to Micro Four Thirds Camera Accelerator Lens Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVello LAG-MFT-NF Specs | | | Camera Mount | Micro Four Thirds | | Lens Mount | Nikon F | | Magnification | 0.71x | | Optical Design | 5 Elements in 4 Groups | | | | Material | Metal | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | H: 2.9 x W: 2.6 x D: 1.0" / H: 7.3 x W: 6.7 x D: 2.5 cm | | Weight | 6.00 oz / 170 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 4.2 x 4.0 x 2.5" |
