User Manual for Vello QuickDraw Rotating Flash Bracket Click to enlarge the picture
Contents of the user manual for the Vello QuickDraw Rotating Flash Bracket
- Product category: Brackets Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Brackets
 |
User manual for the Vello QuickDraw Rotating Flash Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|

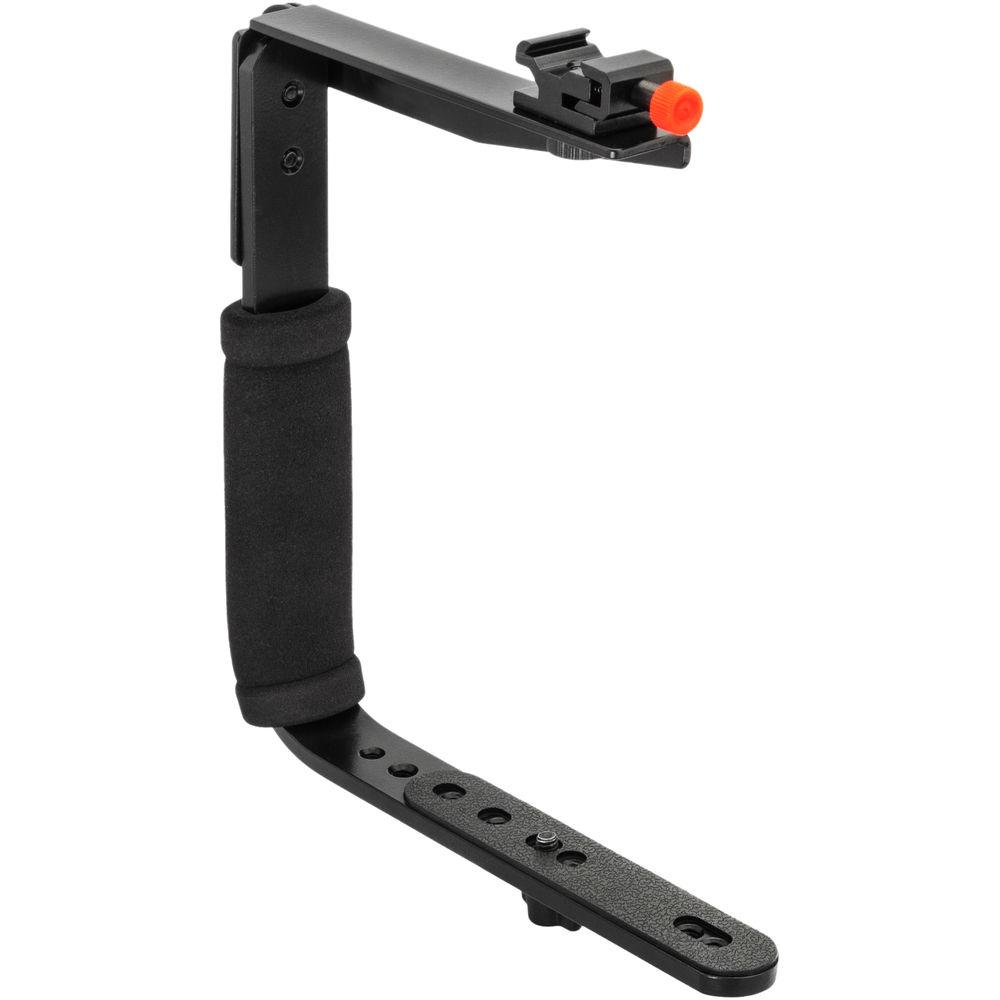

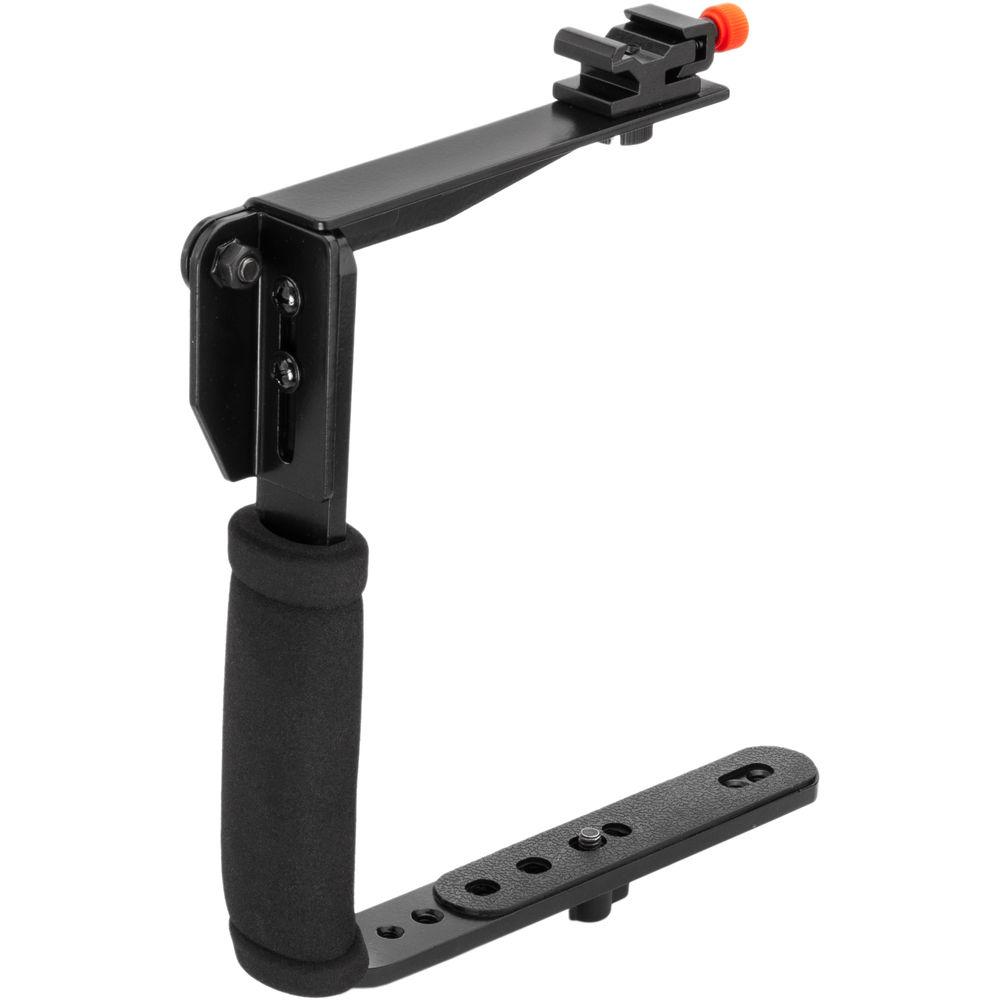

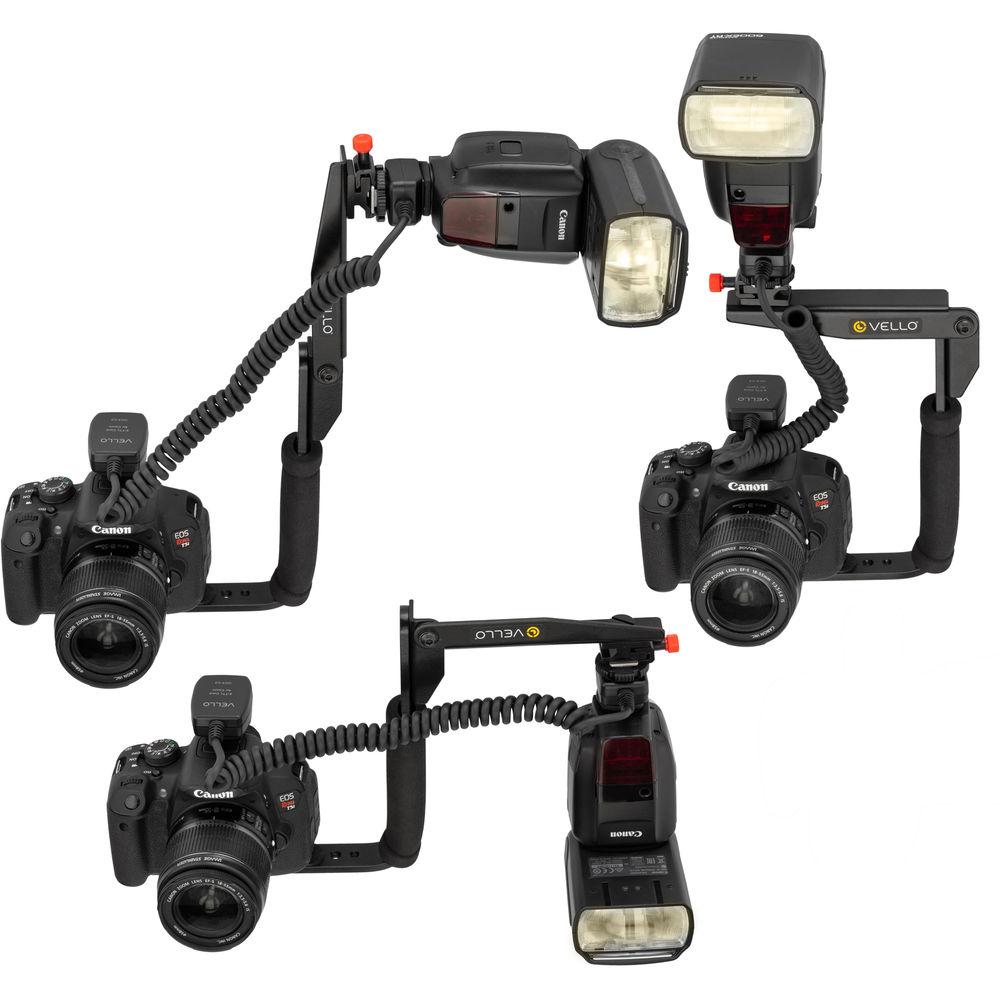

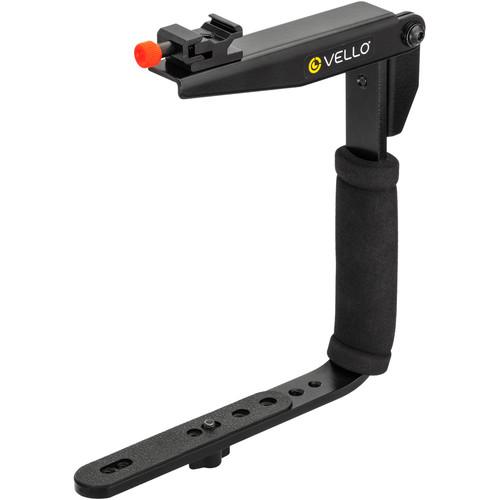

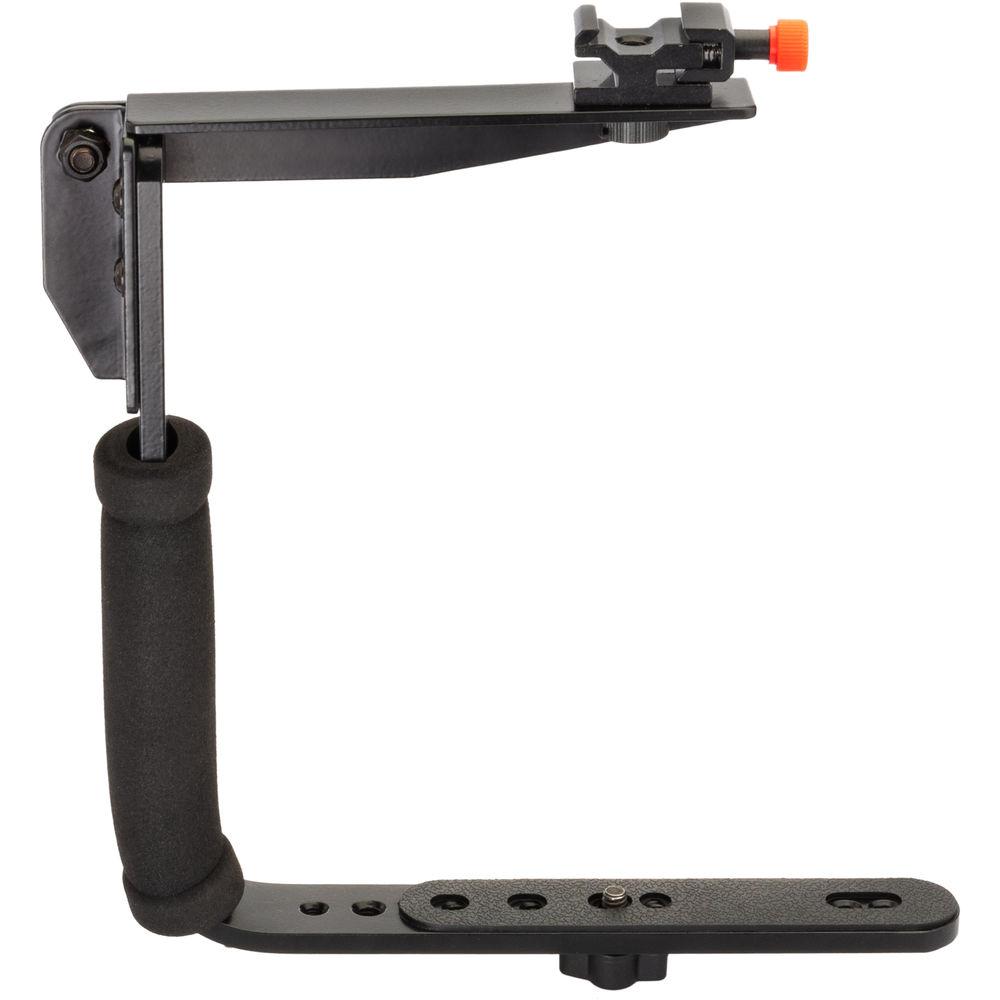

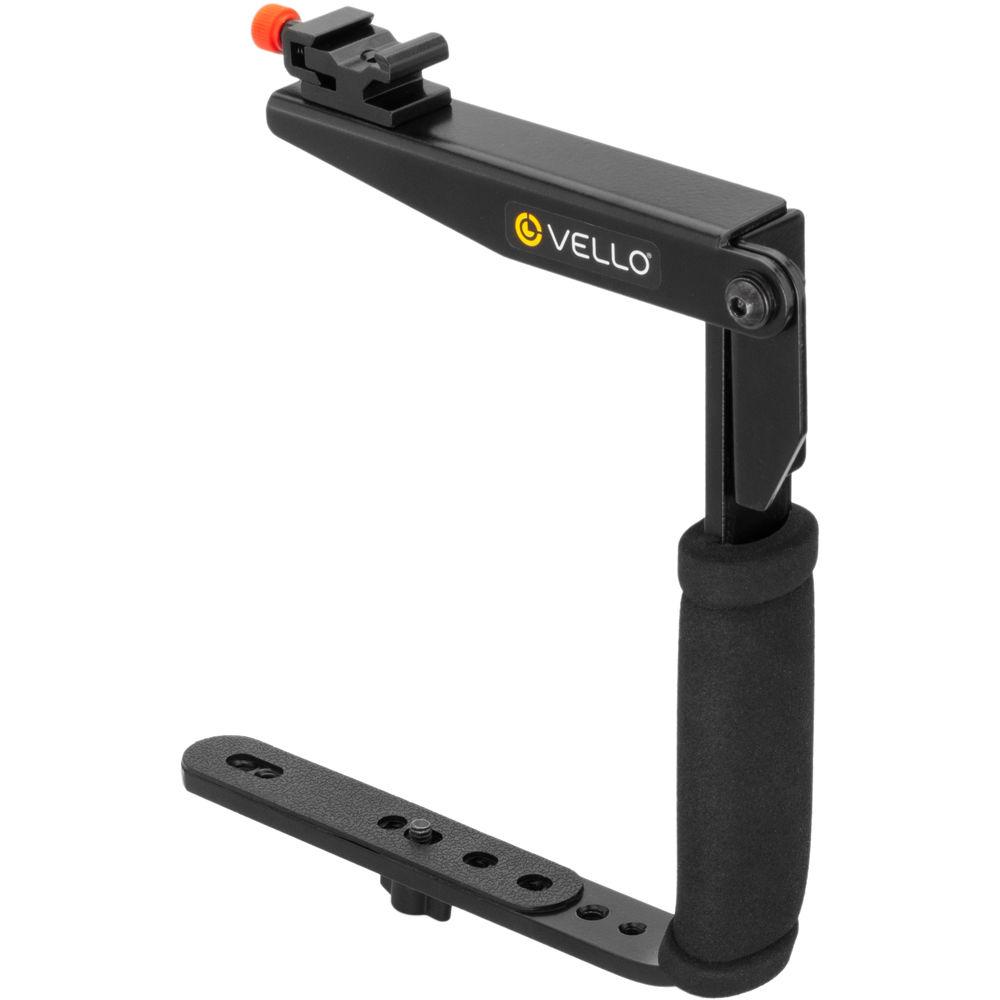

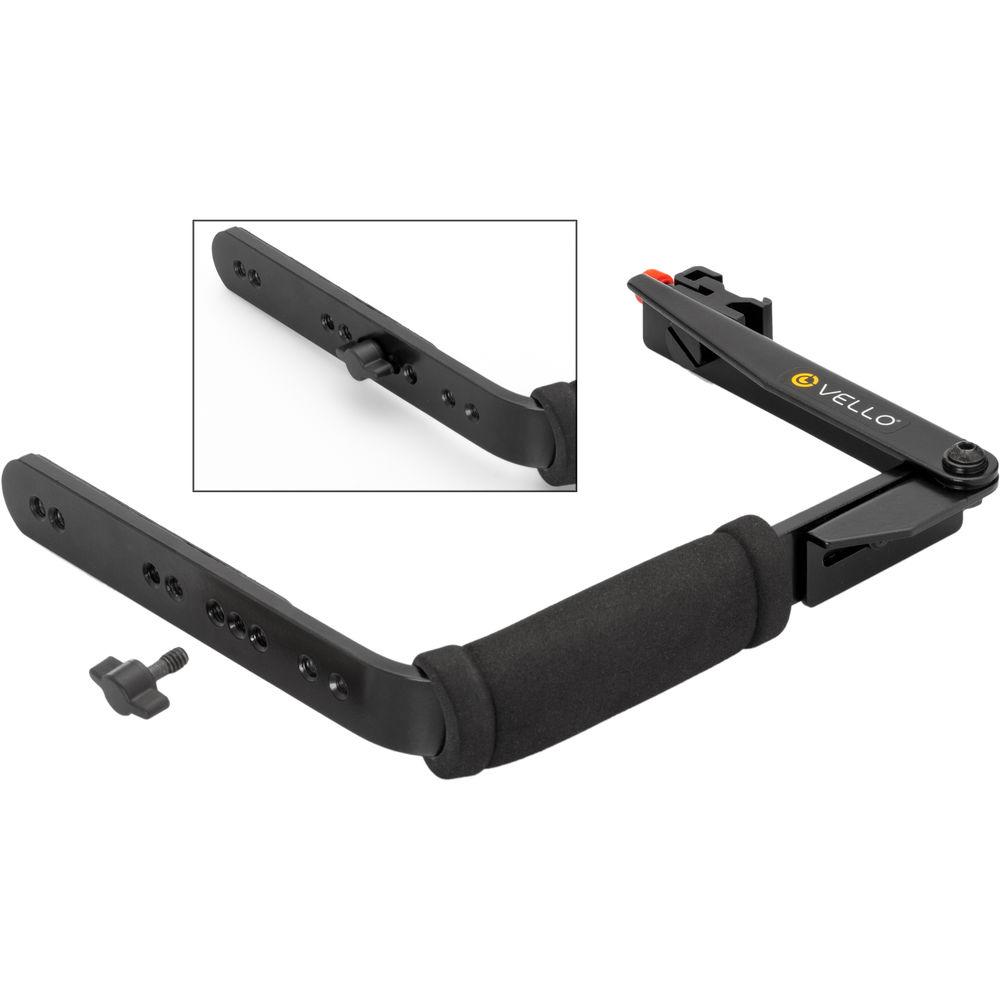

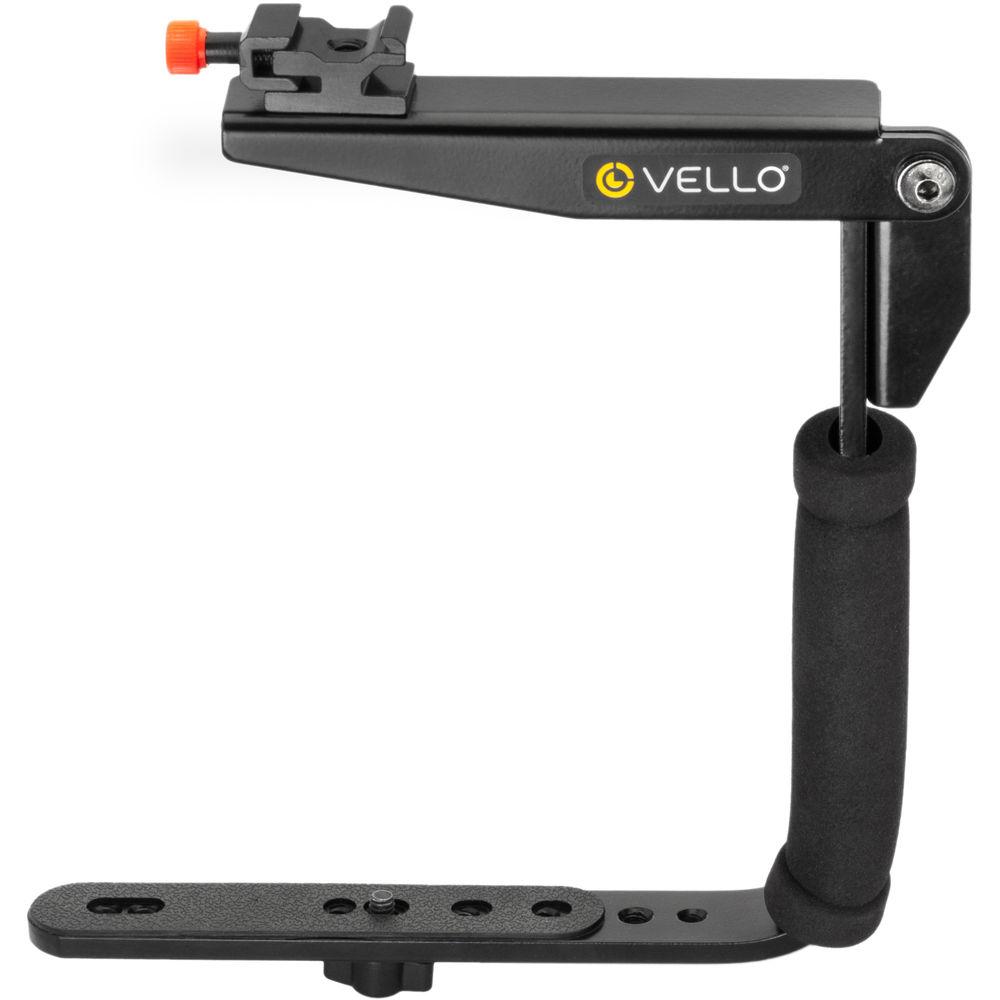

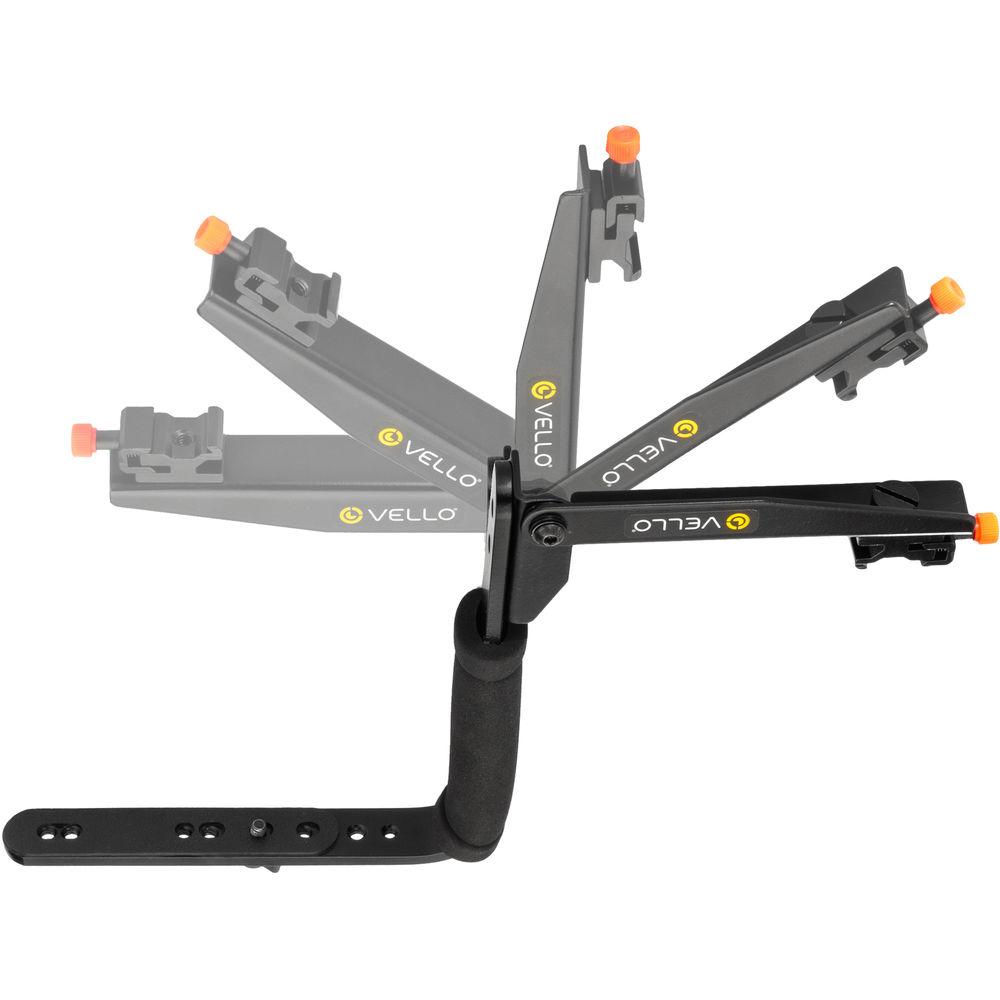

Product description The QuickDraw Rotating Flash Bracket from Vello positions your flash unit well above the camera body and can quickly and smoothly rotate the flash 90º as you switch from horizontal to vertical shooting. With the flash detached from the body you are less likely to get red-eye effect, and with the rotating mechanism the flash is always above the lens, eliminating side shadows and providing a balanced and effective illumination. Five mounting holes on the camera platform allow for almost any camera to utilize the bracket. Choose the hole that best balances your camera and tighten it in place with the mounting knob. Attach the flash unit to the bracket's accessory shoe by loosening the red knob, inserting the flash into the accessory shoe and tightening. Connect your flash cable to the flash unit and wrap it around or secure it to the bracket arm and you are ready to shoot. The flash arm rotates 180º with a smooth and easy flip for when you need to shoot vertical. The padded grip is a comfortable way to stabilize your camera when shooting and is strong enough to be used as a handle for the entire system when not shooting. The accessory shoe can be positioned in one of two locations or unscrewed and removed to accommodate the Nikon SC-28 and SC-29 or other off-camera shoe cords. - Adjustable cold shoe accepts almost any shoe-mount flash or accessory
- Comfortable, soft hand grip can be used as a carrying handle.
- Can be used with or without battery grip
- Sturdy, lightweight aluminum construction
- Sockets for mounting unto tripod
UPC: 847628028814 In the Box Vello QuickDraw Rotating Flash Bracket 5-Year Limited Warranty User Manual PDF 877.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello QuickDraw Rotating Flash Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVello CB-100 Specs | Lens-to-Flash Distance | 11" (27.9 cm) | | Bracket Height | 8" (20.3 cm) | | Width | 8" (20.3 cm) | | Weight | 10.4 oz (295 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 12.5 x 10.0 x 1.8" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
