User Manual for Vello V-Rig 5" Triple Shoe Bracket Click to enlarge the picture
Contents of the user manual for the Vello V-Rig 5" Triple Shoe Bracket
- Product category: Shoe Mount Adapters Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Shoe Mount Adapters
 |
User manual for the Vello V-Rig 5" Triple Shoe Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|

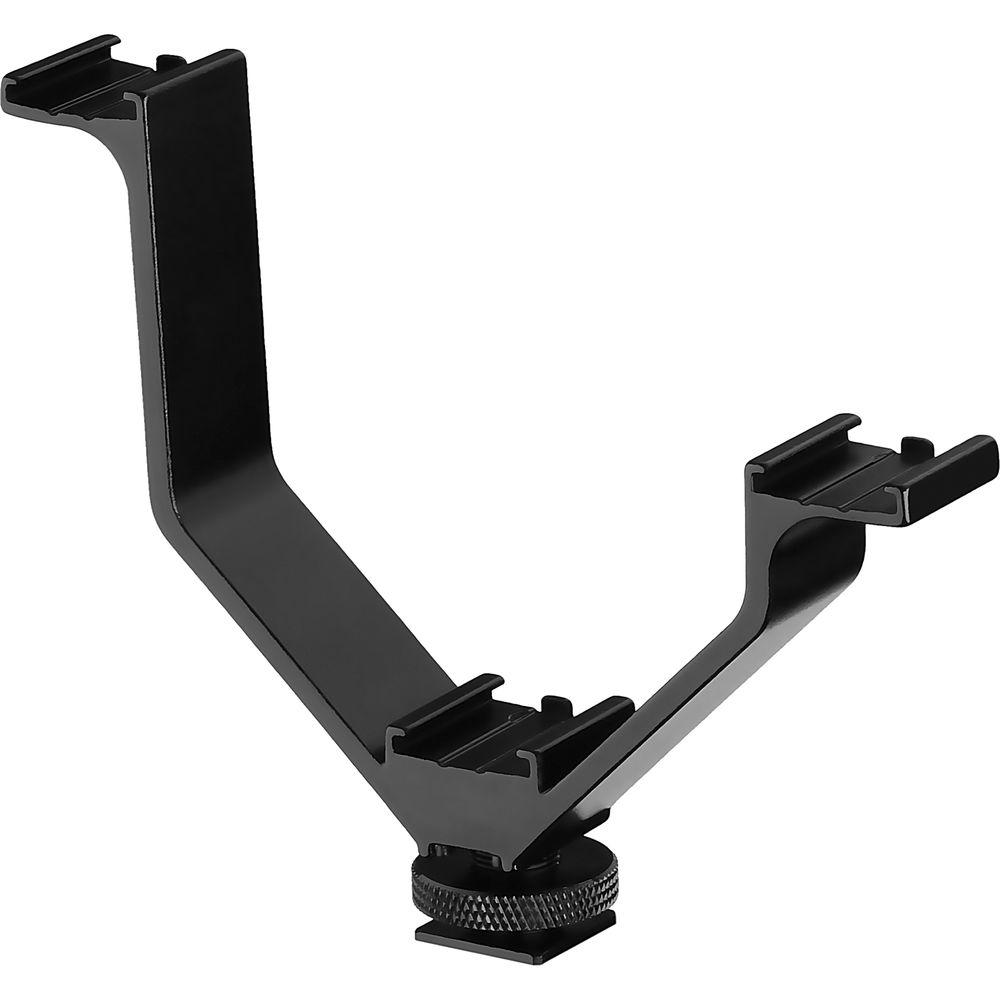

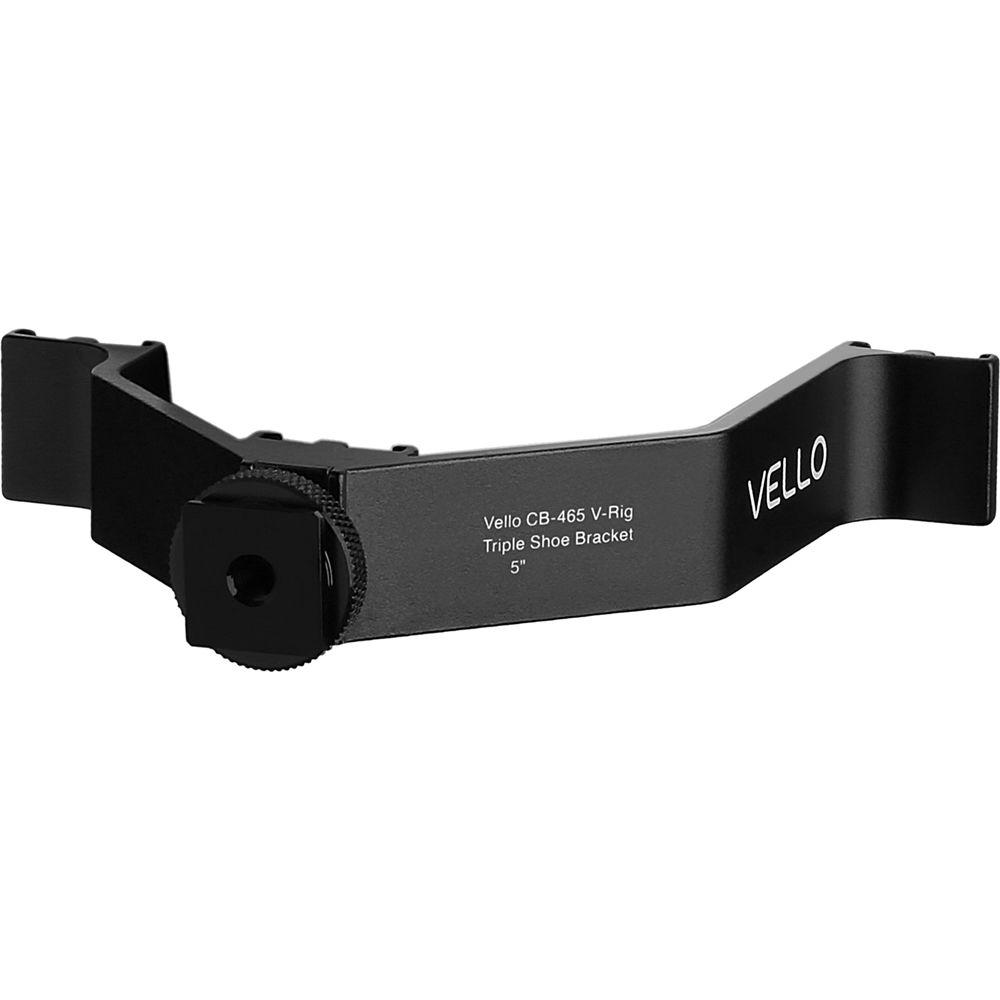

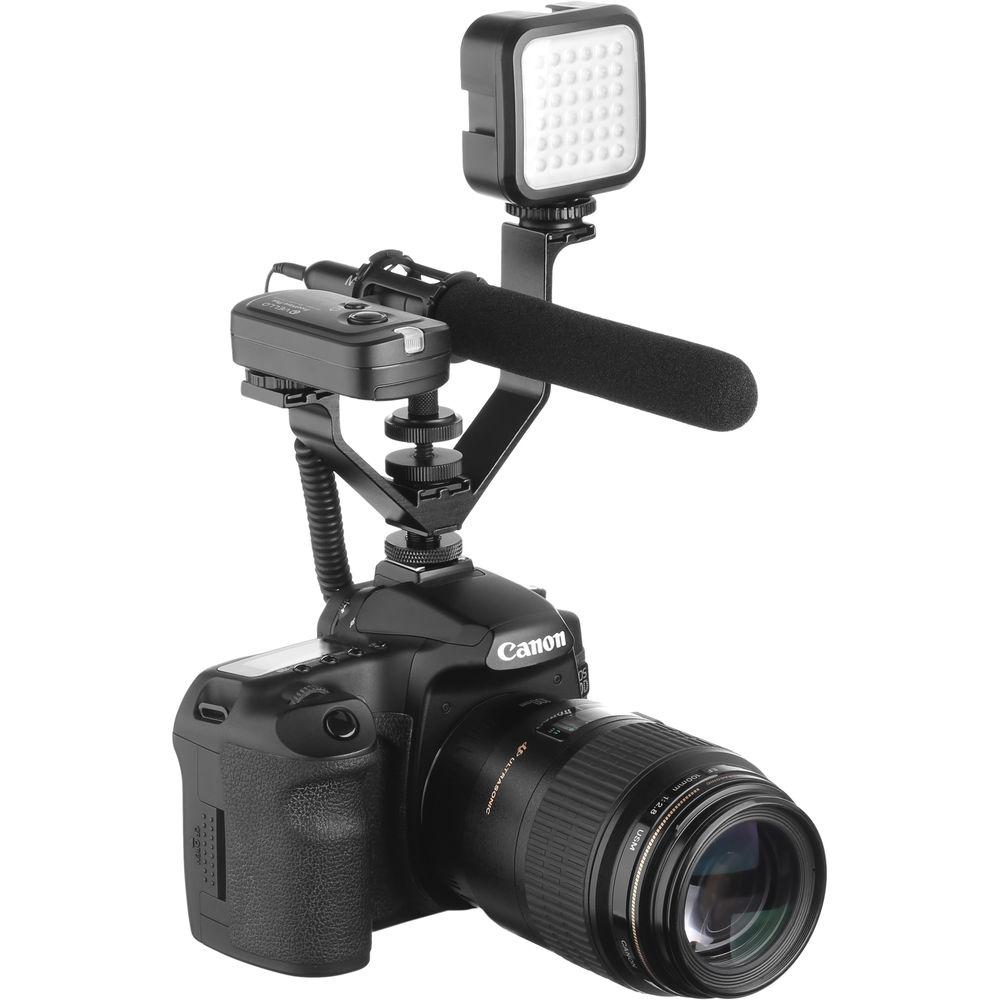

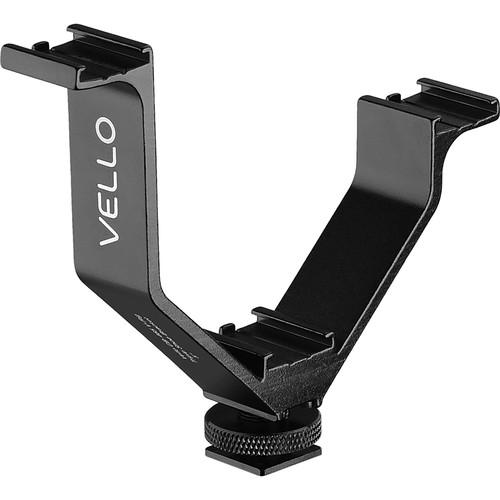

Product description The Vello V-Rig 5" Triple Shoe Bracket mounts onto a camera's accessory shoe in order to provide three additional accessory shoes for mounting lights, monitors, microphones, or other accessories. The entire bracket, including shoe mounts, is machined from a single piece of aluminum alloy for durability and strength. Also, in addition to the shoe mount, a 1/4"-20 thread is available for attaching the bracket to a tripod, rig, or another bracket featuring a 1/4"-20-threaded stud.
The accessory shoes each feature backstops for greater security when attaching accessories. The bottom shoe that attaches to the camera features a locking pin which keeps it in place and prevents the shoe from rotating during use. - 5"-Wide Bracket
- This V-Bracket's width spans 5" and has a tiered design for mounting up to three additional accessories. The wider expanse of the 5" bracket allows for the attachment of larger monitors and other accessories.
- Machined Aluminum Alloy
- The bracket is machined out of a single piece of aluminum alloy, which provides greater strength to the three shoes.
- Accessory Shoe and 1/4"-20 Socket Mounts
- The bracket can attach directly to a camera via the accessory shoe or, additionally, it features a 1/4"-20 socket for attaching to threaded mounts such as a tripod.
- Locking Pin
- The bottom shoe that mounts on to the camera features a locking pin, which prevents the bracket from rotating.
UPC: 847628580176 In the Box Vello V-Rig 5" Triple Shoe Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello V-Rig 5" Triple Shoe Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVello CB-465 Specs | Bottom Mount | 1 x Accessory Foot | | Top Mount | 3 x Accessory Shoe | | Material | Aluminum | | Dimensions | 5 x 8 x 1.2" / 12.5 x 20.3 x 3 cm | | Weight | 4.8 oz / 136 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 2.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
