User Manual for Vello Wireless ShutterBoss II Remote Switch with Digital Timer for Sony Multi-Terminal Click to enlarge the picture
Contents of the user manual for the Vello Wireless ShutterBoss II Remote Switch
- Product category: Shutter Releases Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Shutter Releases
 |
User manual for the Vello Wireless ShutterBoss II Remote Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More - Vello ShutterBoss
- Mastering the Intervalometer: Time-lapse & Long Exposure Photography with Vello Shutterboss

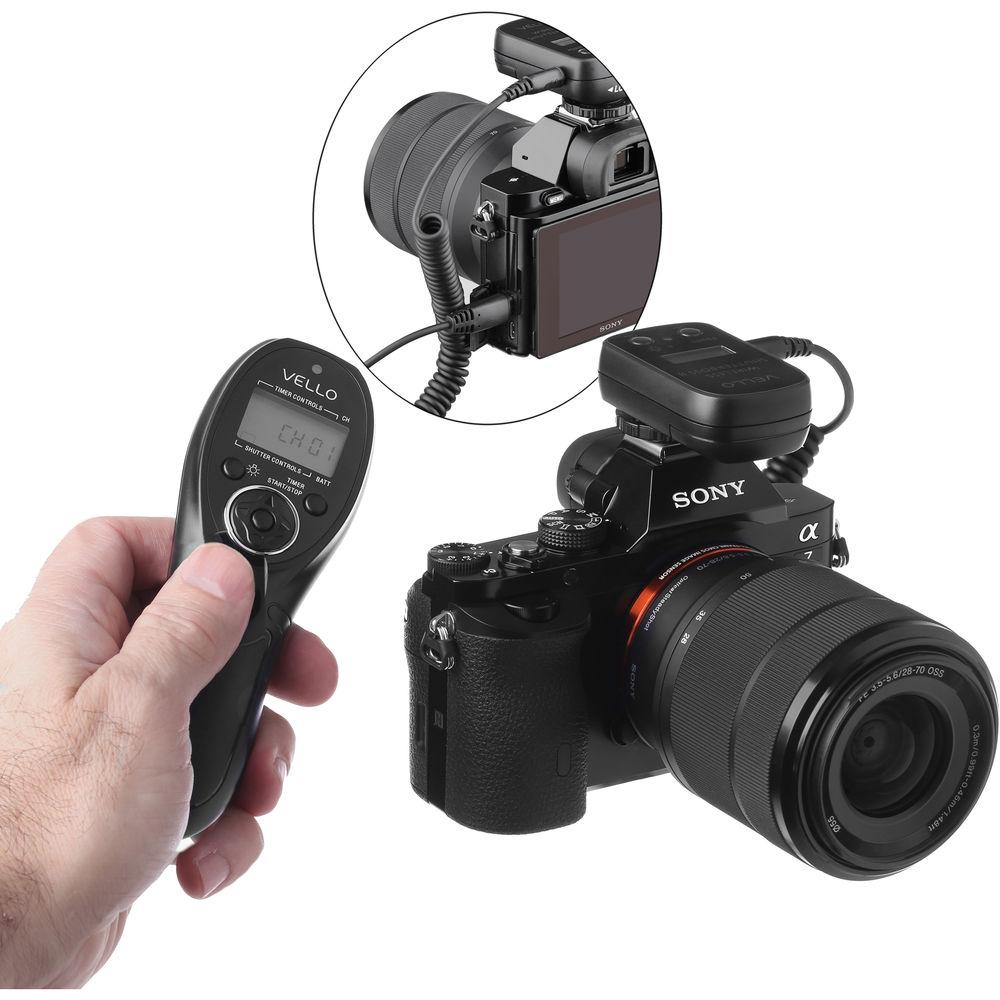

Set up elaborate time-lapses, perform long exposures, or simply trigger your camera remotely with the Wireless ShutterBoss II Remote Switch with Digital Timer from Vello. This version is compatible with Sony's Multi-Terminal connection found on the latest Alpha-series mirrorless and DSLR cameras, and it features a 2.4 GHz frequency along with a 250' range. The transmitter also has access to 99 channels and features specialized functionality such as continuous shooting, self-timer, long time exposures, and interval shooting.

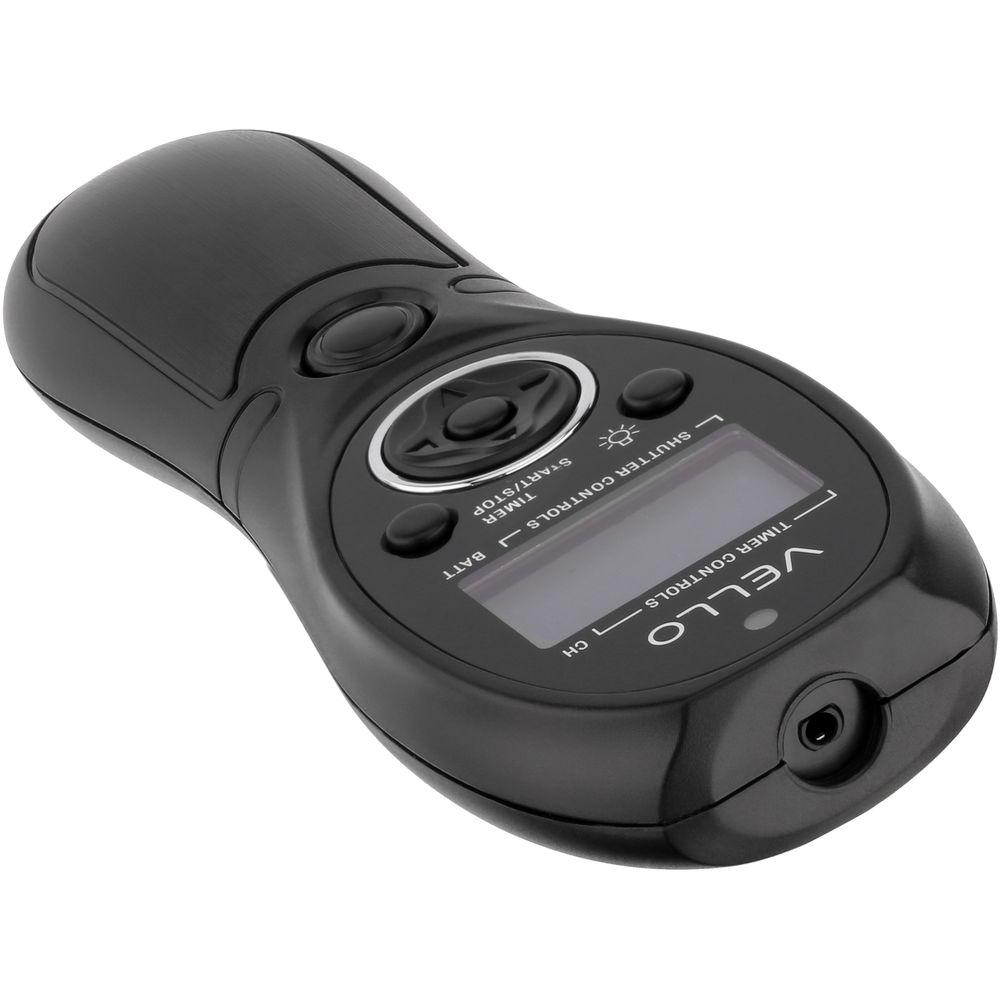

Multiple time settings can be accessed from the transmitter's backlit LCD screen, such as the ability to set a number of shots from 1-999 or to infinitely take photos. The duration of an exposure can also be set all the way up to 99 hours 59 minutes and 59 seconds in one-second increments.

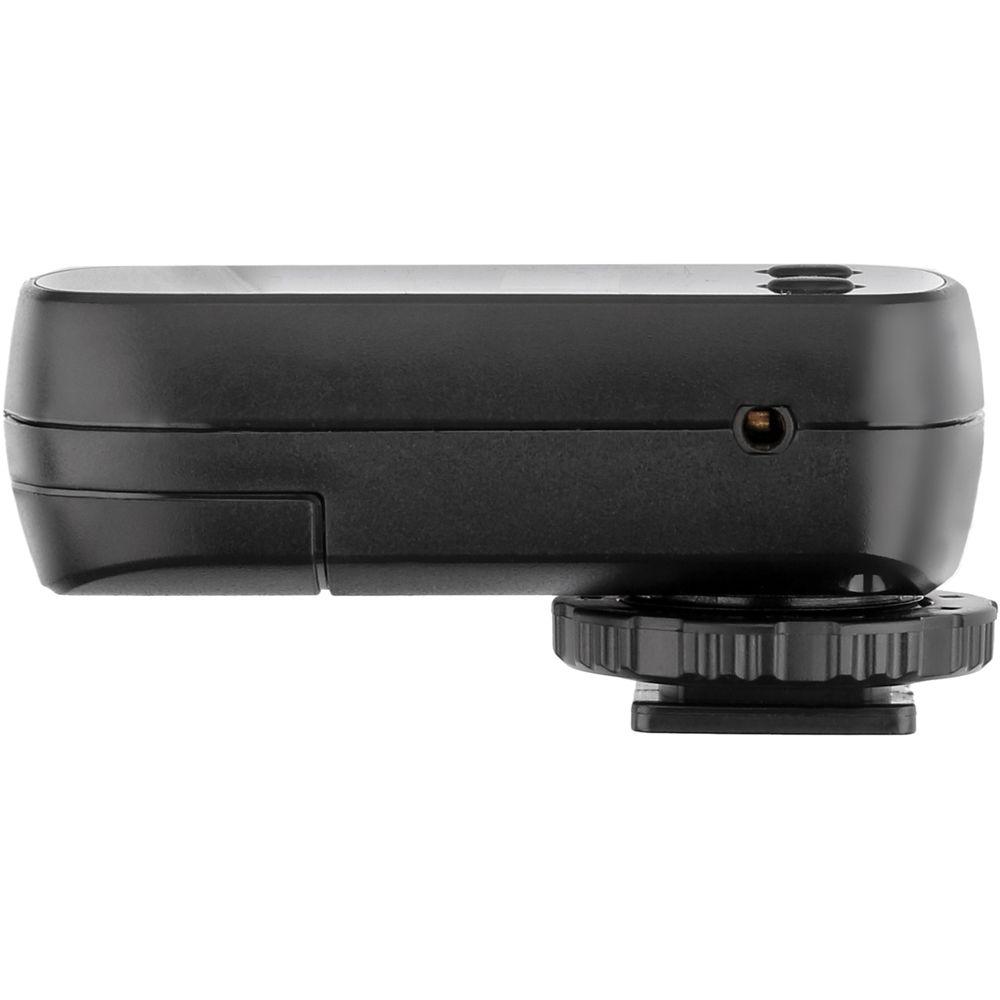

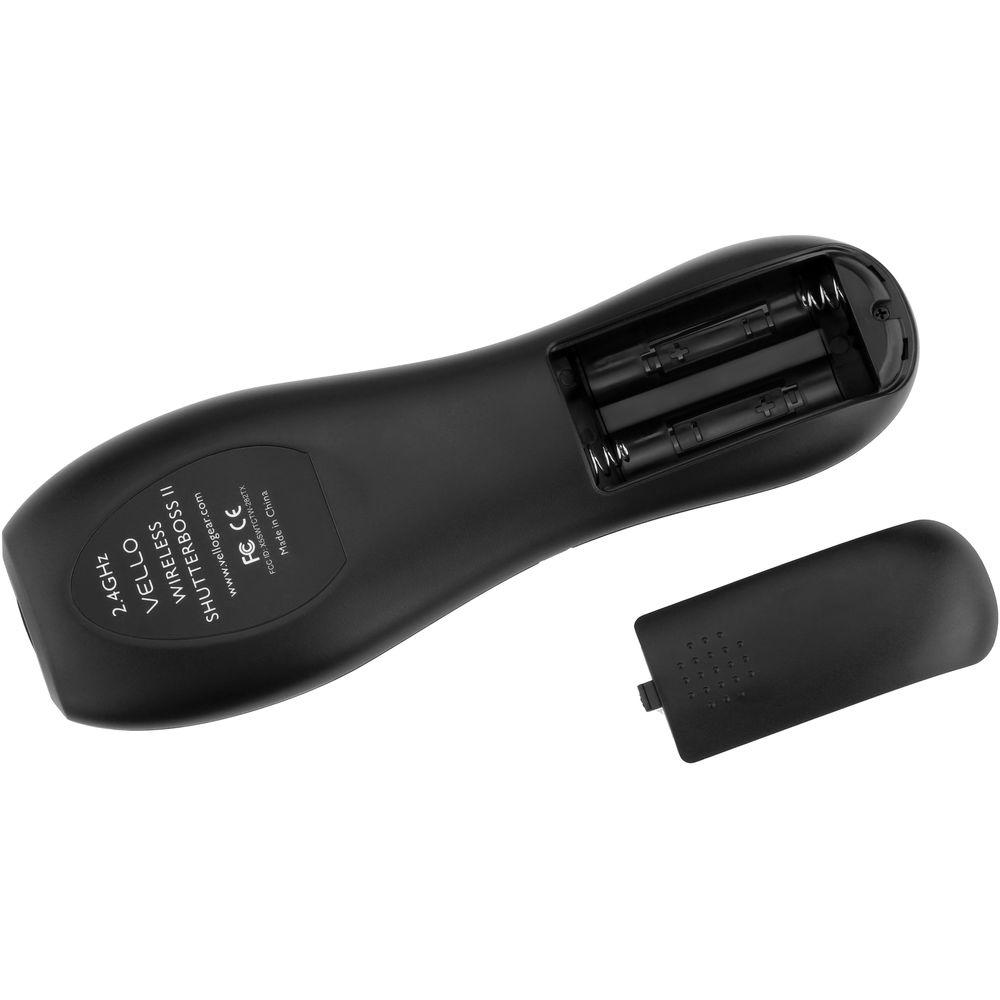

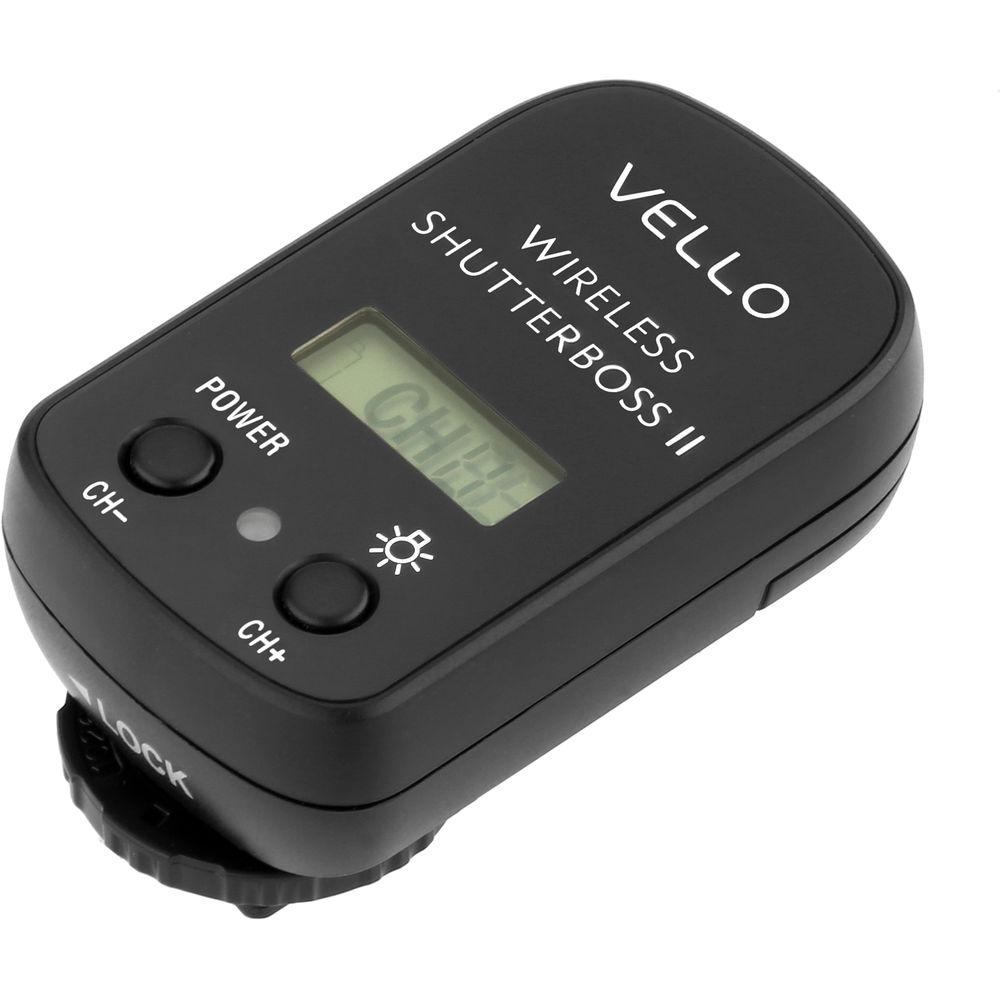

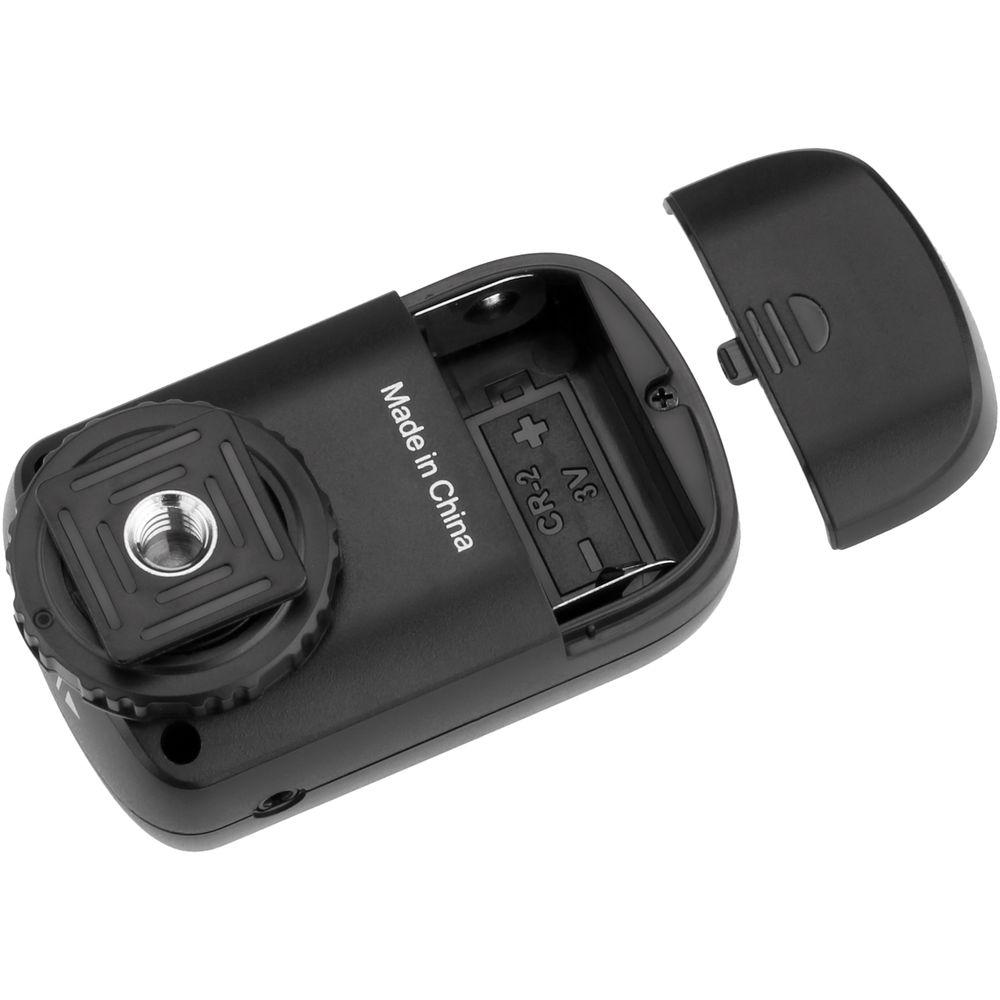

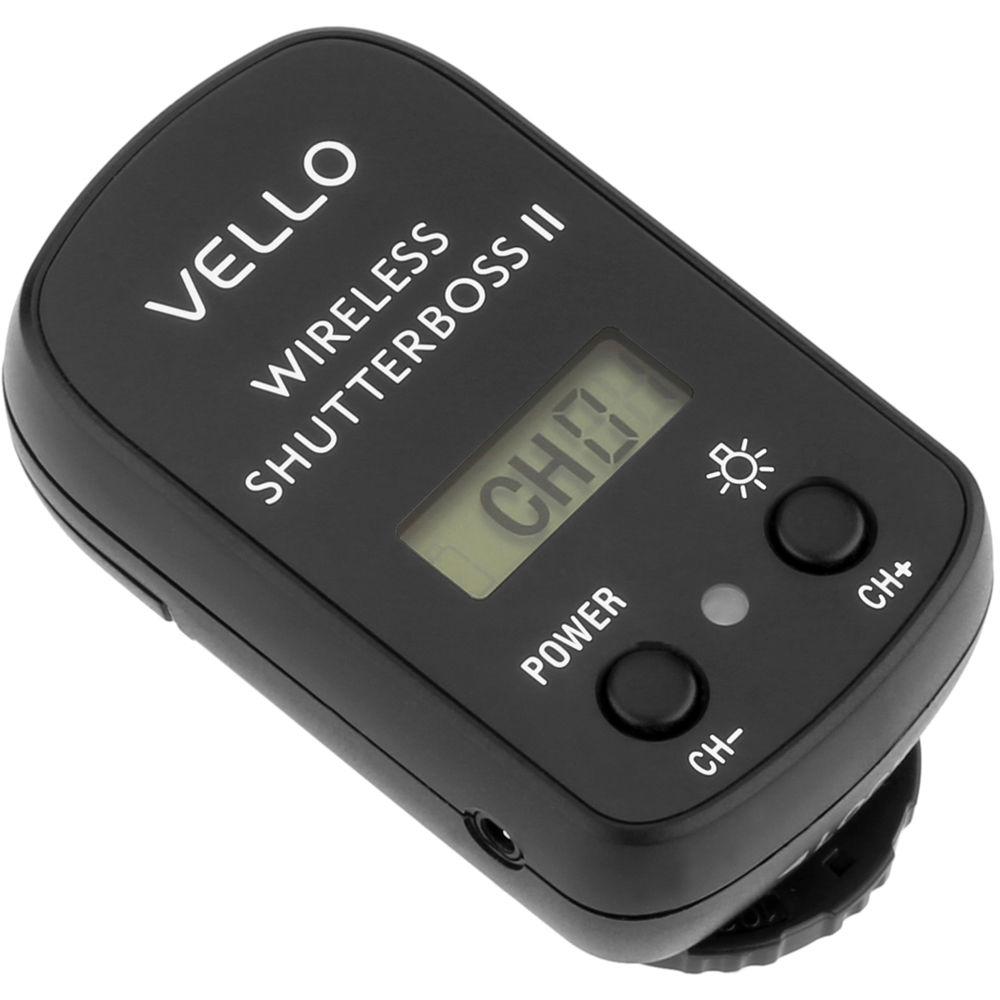

The ShutterBoss II does work as a dual-function release, allowing users to press halfway to focus or press full to trigger the shutter. It can also be set to take multiple photos with a single press of the shutter and has LED indicators to confirm pre-focus and exposure. The ShutterBoss II can also function both wired or wirelessly to better fit your particular setup. Additionally, the receiver runs on one 3V CR2 battery and the transmitter operates with two AAA batteries. - Compatible Cameras
- Sony: Alpha a58, a77 II, a3000, a5000, a6000, a7, a7 II, a7R, a7R II, a7S, a7S II; DSC-RX1, RX1R, RX1R II, RX10, RX10 II, RX100 II, RX100 III, RX100 IV, HX50V, HX90V, HX300, HX400, HX400V

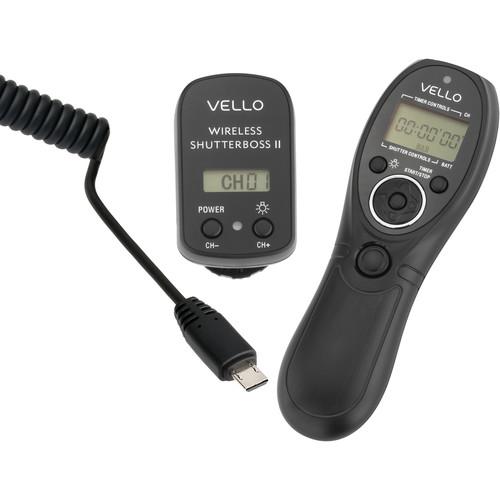

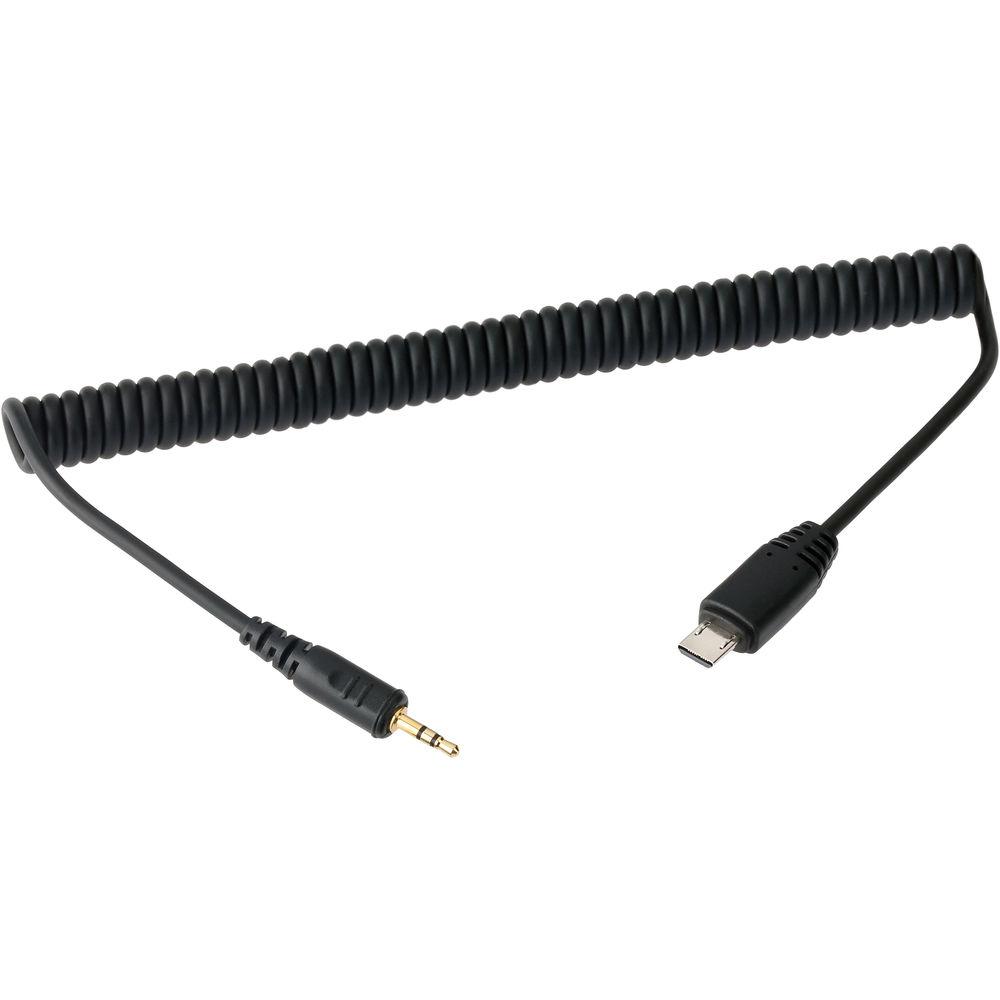

UPC: 847628583368 In the Box Vello Wireless ShutterBoss II Remote Switch with Digital Timer for Sony Multi-Terminal Transmitter Receiver 2.5mm Remote Shutter Release Cable for Select Sony Cameras with Multi-Terminal 3V CR2 Battery 2 x AAA Batteries Limited 1-Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello Wireless ShutterBoss II Remote Switch with Digital Timer for Sony Multi-Terminal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVello RCW-II-S2 Specs | Release Type | Wireless: RF (Radio Frequency) | | Camera Connection | Sony Multi-Terminal | | Channels | 99 | | Wireless Frequency | 2.4 GHz | | Interval Timer/Programmable | Yes | | Live View | No | | Max Timer Delay | 99 h, 59 min, 59 sec | | Maximum Exposure | 99 h, 59 min, 59 sec | | Maximum Interval | 99 h, 59 min, 59 sec | | Mobile Device/App-enabled | No | | Wireless Range | 250' / 76.2 m | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Receiver Dimensions | 2.5 x 1.5 x 1.2" / 63.0 x 38.0 x 31.0 mm | | Receiver Power Source | Battery | | Receiver Battery Requirements | 1 x CR2 | | Transmitter Power Source | Battery | | Transmitter Battery Requirements | 2 x AAA | | Transmitter Dimensions | 5.9 x 2.0 x 1.0" / 14.9 x 5.0 x 24.0 mm | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 11.102 x 3.78 x 1.417" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
