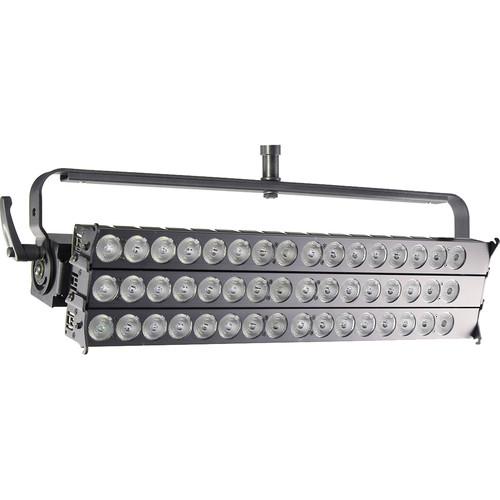

Product description Composed of 144 individual LEDs that are evenly arranged between three articulated strips, the 3Long-Studio Bi-Color LED Fixture from VELVETlight offers directional lighting in a slim form factor. By manually bending the strips into a concave or convex shape, you can adjust the beam angle between 30 and 60 degrees to find the ideal setting for each scene. Included barndoors and a softbox diffuser also help with shaping your light, which can be dimmed in 1/2 stop increments and is flicker-free at up to 3000 frames per second. The 3Long-Studio offers a notable color temperature range from 2500 to 6500K plus green/magenta correction from quarter plus to quarter minus green, allowing you to easily match other light sources and avoid complex post-processing. A CRI rating of 90 promises a high degree of tonal fidelity across the entire color range, while the LEDs are rated to last for approximately 50,000 hours. Adjustments can be made on-board via buttons on the back panel or with an optional DMX board thanks to 5-pin XLR in and out ports. Made of anodized aluminum with a passive cooling system, the 3Long-Studio runs on 90 to 264 VAC power provided via a 6.6' powerCON cable. - Articulated Strips
- The 3Long-Studio is composed of three strips with 144 LEDs total, which can be articulated to vary the beam angle between 30 and 60 degrees
- Color Control
- Wide color temperature range of 2500 to 6500K covers both daylight and tungsten, with the fixture also offering green/magenta correction from -1/4 to +1/4 green in 1/8 increments
- DMX Support
- Works with optional DMX 512 controllers via 5-pin XLR in/out ports, offering 3 channels
- Construction
- Anodized aluminum housing with passive cooling, with LEDs lasting up to 50,000 hours
- Power
- Runs on 90-264 VAC universal power with provided 6.6' powerCON cable, features a maximum power draw of 145W
- Included Accessories
- Two barndoors for shaping light and softbox diffuser to help soften the output
In the Box VELVETlight 3Long-Studio Bi-Color LED Fixture Removable Barndoors for 3 and 4Long-Studio Bi-Color LED Fixtures (2-Pack) powerCON Power Cable (6.6') Softbox Diffuser Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VELVETlight 3Long-Studio Bi-Color LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVELVETlight 3Long-Studio Specs | | | Beam Angle | 30 to 60° | | Color Temperature | 2500 to 6500K | | Color Accuracy Standard | CRI 90 | | Cooling System | Passive | | Dimming | Yes | | Housing Material | Aluminum | | Photometrics | 1018 fc / 10,953.7 lux at 3' / 0.91 m
129 fc / 1388 lux at 10' / 3.05 m
41 fc / 441.2 lux at 20' / 6.1 m | | Number of LEDs | 144 | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 24.5 x 6.1 x 5.8" / 62.2 x 15.5 x 14.8 cm | | Fixture Weight | 14.33 lb / 6.5 kg (Including Yoke) | | | | Battery Plate | None | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR | | Power Output Connector | powerCON | | | | Fixture Mount | M6 Female Thread | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 3 | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 145 W | | Fuse | 2.5 A | | | | Certifications | CE, as per Manufacturer | | IP Rating | IP21 | | Operating Temperature | -4 to 104°F / -20 to 40°C |
