User Manual for VELVETlight MINI 1 Bundle with Gold Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the VELVETlight MINI 1 Bundle with Gold
- Product category: LED Lights VELVETlight
- Brand: VELVETlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VELVETlight LED Lights
 |
User manual for the VELVETlight MINI 1 Bundle with Gold contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VELVETlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VELVETlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VELVETlight product will considerably shorten its lifespan!
|

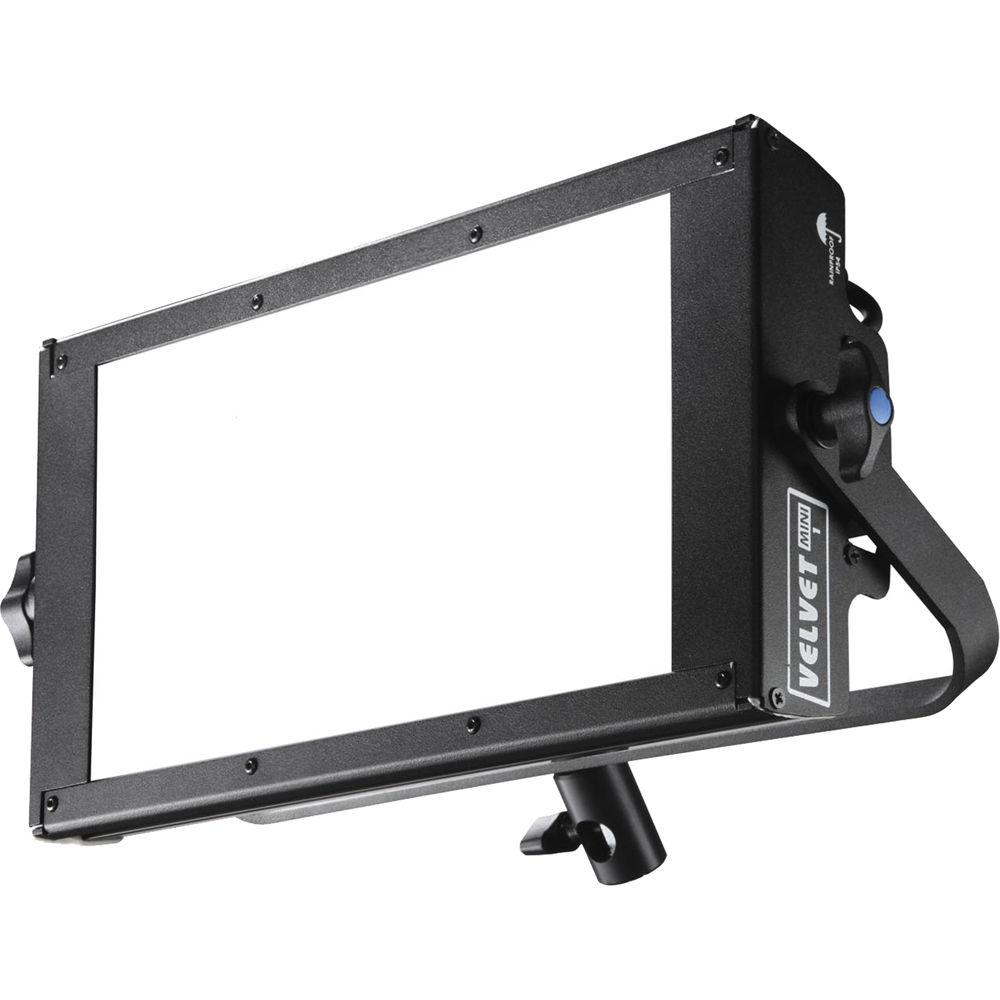

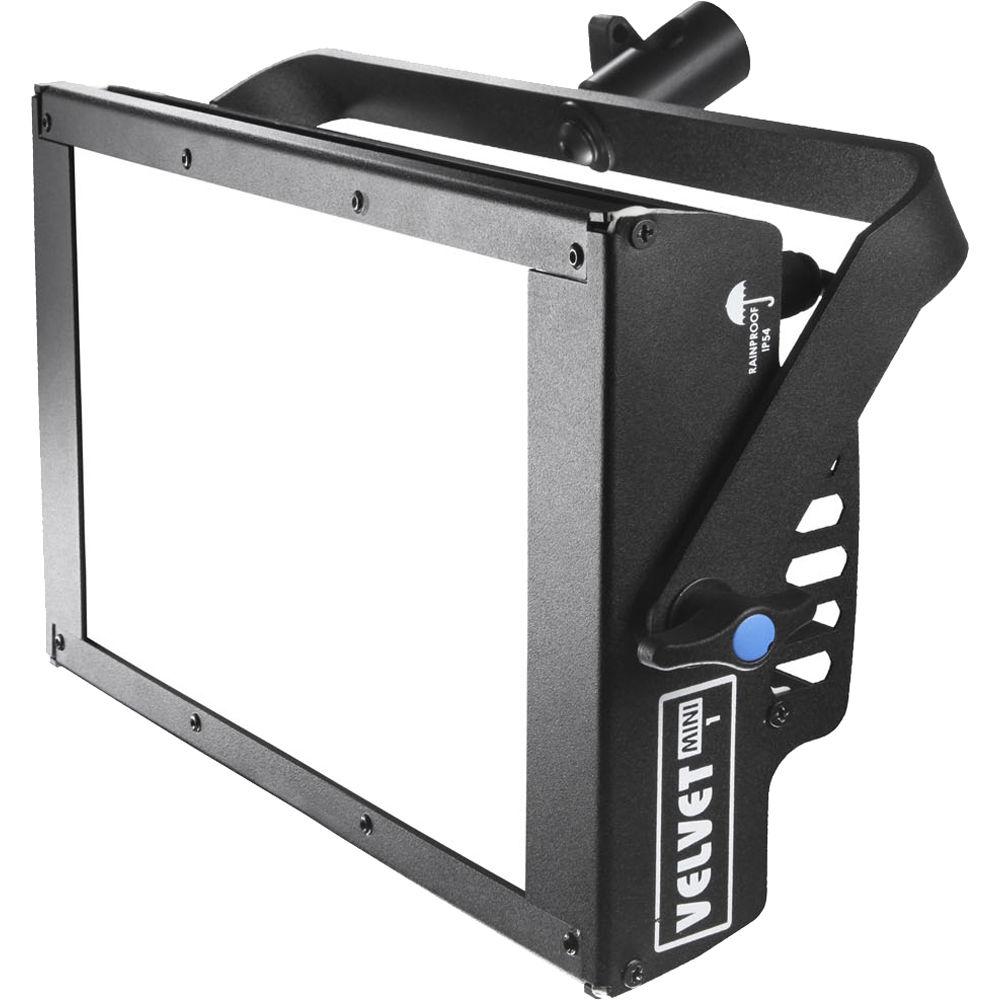

Product description The MINI 1 Bundle with Gold Mount Battery Plate from VELVETlight is built around a light source with an expansive 2700 to 6500K variable color range and a high CRI/TLCI rating of 95, indicating an accurate rendering of color. Light intensity is also variable from 0-100% with flicker-free performance at over 1000 frames per second. Both functions can be controlled locally on the fixture or remotely from a console via onboard DMX. The sturdy aluminum fixture has a compact form factor with an illuminated surface measuring 13.6 x 7.5" and has negligible generated heat, making it a wise choice for placement in tight spaces or for use close up to the talent without causing discomfort, while its tight 35-degree beam angle makes it an asset for long-throw use or selective lighting. A special feature of the MINI 1 is its IP54 weatherproof rating making it ideal for shooting outdoors in rainy or inclement conditions. The MINI 1 is ready for worldwide use thanks to its 90-264 VAC power supply but this version of the light comes with a battery plate for optional Gold mount batteries for situations where mains power is unavailable. - Robust, Portable, Ready Rig
- Slim, compact, and easily hidden in tight locations or on low ceiling sets, the panel is quick to rig up or handhold. It features a quickly removable yoke with a 5/8" baby receiver combined with a 1-1/8" Junior pin and sliding 1/4"-20 threads for rigging located on panel sides.
- Lighting Made Easy
- With the VELVETlight MINI 1 there is no need to use correction gels or replace diffusers to vary color temperature and light intensity. The soft beam produces open shadows and is easy on the talent's eyes.
- Extended Color Range
- The light goes beyond the 3200-5600K of most bi-color lights and offers a wide 2700-6500K color range.
- Sturdy Construction and IP54 Rainproof
- Constructed from shock-resistant aluminum, the panel is also rainproof for use in inclement weather.
- Smart AC- and DC-Powered
- The panel is ready for worldwide use thanks to its 90 to 264 VAC power supply. It can also run on optional Gold mount batteries when mains power is unavailable.
In the Box VELVETlight MINI 1 Bundle with Gold Mount Battery Plate Smart AC Power Supply MINI 1 (Gold Mount) MINI 1 IP54 Panel Yoke w/ Junior Pin Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VELVETlight MINI 1 Bundle with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVELVETlight Mini 1 Specs | | | Beam Angle | 100° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 90 | | Dimming | Yes, 0 to 100% (Stepped) | | Housing Material | Aluminum | | Photometrics | 14 fc / 150 lux at 10' / 3 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 13.6 x 7.5 x 3.5" / 34.5 x 19.1 x 8.9 cm | | Fixture Weight | 4.2 lb / 1.91 kg | | | | Battery Plate | 1 x Gold Mount | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | DC Input Power | 12 to 35 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 70 W | | Power Pass-Thru | Yes |
