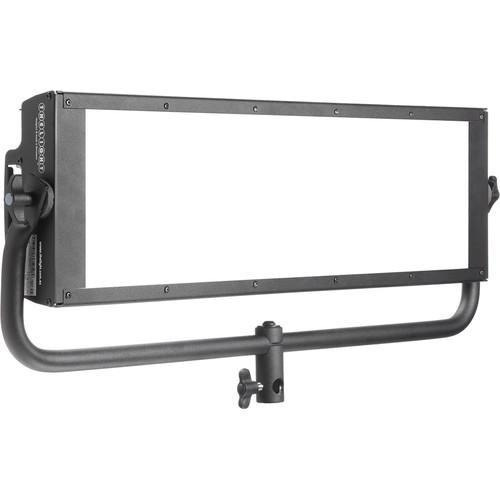

Product description The MINI 2 Bi-Color Rainproof LED Panel from VELVETlight is a light source with an expansive 2700 to 6500K variable color range and a high CRI/TLCI rating of 95, indicating an accurate rendering of color. Light intensity is also variable from 0-100% with flicker-free performance at over 1000 frames per second. You can make these adjustments locally on the fixture or remotely with a console via onboard DMX. The sturdy aluminum fixture has a compact form factor with an illuminated surface measuring 24 x 7.5" and has negligible generated heat, making it a wise choice for placement in tight spaces or for use close up to the talent without causing discomfort. Its 100-degree beam angle provides ample coverage and can be tightened to 40 degrees with an optional grid to control spill light or for selective lighting. A special feature of the MINI 2 is its IP54 weatherproof rating making it ideal for shooting outdoors in rainy or inclement conditions. Fan-free passive cooling means that the MINI is seen but not heard, a valuable feature in sound-sensitive locations. The MINI 2 is ready for worldwide use with the separate purchase of the 90-264 VAC power supply or a battery plate. It can also run on optional 12-35 VDC batteries when mains current is unavailable. - Robust, Portable, Ready Rig
- Slim, compact, and easily hidden in tight locations or on low ceiling sets, the panel is quick to rig up or handhold. It features sliding 1/4"-20 threads for rigging located on panel sides.
- Lighting Made Easy
- With the VELVETlight MINI 2 there is no need to use correction gels or replace diffusers to vary color temperature and light intensity. The soft beam produces open shadows and is easy on the talent's eyes.
- Extended Color Range
- The light goes beyond the 3200-5600K of most bi-color lights and offers a wide 2700-6500K color range.
- Sturdy Construction and IP54 Rainproof
- Constructed from shock-resistant aluminum, the panel is also rainproof for use in inclement weather. It can also run on optional 12-35 VDC batteries when mains current is unavailable.
In the Box VELVETlight MINI 2 Bi-Color Rainproof LED Panel (No Yoke) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VELVETlight MINI 2 Bi-Color Rainproof LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVELVETlight Mini 2 Specs | | | Beam Angle | 100° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Housing Material | Aluminum | | Photometrics | 28 fc / 301.3 lux at 10' / 3.05 m | | Expected Lamp Life | 50000 Hours (L70) | | Fixture Dimensions | 24.0 x 7.5 x 3.5" / 61.0 x 19.1 x 8.9 cm | | Fixture Weight | 6.5 lb / 2.95 kg | | | | Battery Plate | None | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | 1/4"-20 Female Thread | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | DC Input Power | 12 to 35 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Certifications | CE, as per Manufacturer | | IP Rating | IP54 |
