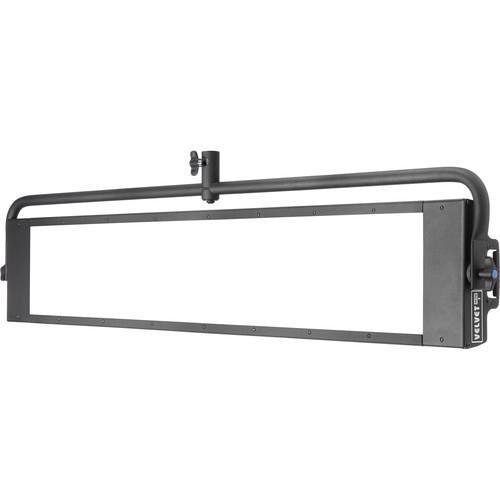

User Manual for VELVETlight MINI 3 Bi-Color Studio LED Panel Click to enlarge the picture
Contents of the user manual for the VELVETlight MINI 3 Bi-Color Studio LED
- Product category: LED Lights VELVETlight
- Brand: VELVETlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VELVETlight LED Lights
|
User manual for the VELVETlight MINI 3 Bi-Color Studio LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VELVETlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VELVETlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VELVETlight product will considerably shorten its lifespan!
|
Product description The MINI 3 Bi-Color Studio LED Panel from VELVETlight is a light source with an expansive 2700 to 6500K variable color temperature range and a high CRI/TLCI rating of 95, indicating accurate tonal rendering. Light intensity is also variable from 0-100% with flicker-free performance at over 3000 frames per second. You can make these adjustments locally on the fixture or remotely with a console via onboard DMX with separate in and out ports that allow for daisy-chaining equipment. The sturdy aluminum fixture has a compact form factor with an illuminated surface measuring 38" x 7.5" and has negligible generated heat, making it a wise choice for placement in tight spaces or for use close up to the talent without causing discomfort. Its 100-degree beam angle provides ample coverage and can be tightened to 40 degrees with an optional grid to control spill light or for selective lighting. Fan-free passive cooling means that the MINI is seen but not heard, a valuable feature in sound-sensitive locations. The MINI 3 is ready for worldwide use thanks to its 90-264 VAC power supply - Robust, Portable, Ready Rig
- Slim, compact, and easily hidden in tight locations or on low ceiling sets, the panel is quick to rig up or handhold. It features a quickly removable yoke with a 5/8" baby receiver combined with a 1 1/8" Junior pin and sliding 1/4"-20 threads for rigging located on panel sides.
- Lighting Made Easy
- With the VELVETlight MINI 3 there is no need to use correction gels or replace diffusers to vary color temperature and light intensity. The soft beam produces open shadows and is easy on the talent's eyes.
- Extended Color Range
- The light goes beyond the 3200-5600K of most bi-color lights and offers a wide 2700-6500K color range.
- Sturdy Construction and IP51 Dustproof
- Constructed from shock-resistant aluminum, the panel is rated to be dustproof for increased durability.
- Flexible Power
- The MINI 3 is ready for worldwide use thanks to its 90-264 VAC power supply
In the Box VELVETlight MINI 3 Bi-Color Studio LED Panel Yoke Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VELVETlight MINI 3 Bi-Color Studio LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVELVETlight Mini 3 Studio Specs | | | Beam Angle | 100° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Housing Material | Aluminum | | Photometrics | 296 fc / 3185 lux at 3' / 0.91 m
42 fc / 451.9 lux at 10' / 3.05 m | | Expected Lamp Life | 50000 Hours (L70) | | Fixture Dimensions | 38.0 x 7.5 x 3.5" / 96.5 x 19.1 x 8.9 cm | | Fixture Weight | 9.92 lb / 4.5 kg | | | | Battery Plate | None | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR | | Power Output Connector | powerCON | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | DC Input Power | 12 to 35 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 150 W | | | | IP Rating | IP51 | | Operating Temperature | -4 to 104°F / -20 to 40°C |
