User Manual for VELVETlight Velvet Light 2x2 Power Flood Bi-Color LED Panel Click to enlarge the picture
Contents of the user manual for the VELVETlight Velvet Light 2x2 Power Flood
- Product category: LED Lights VELVETlight
- Brand: VELVETlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VELVETlight LED Lights
|
User manual for the VELVETlight Velvet Light 2x2 Power Flood contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VELVETlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VELVETlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VELVETlight product will considerably shorten its lifespan!
|

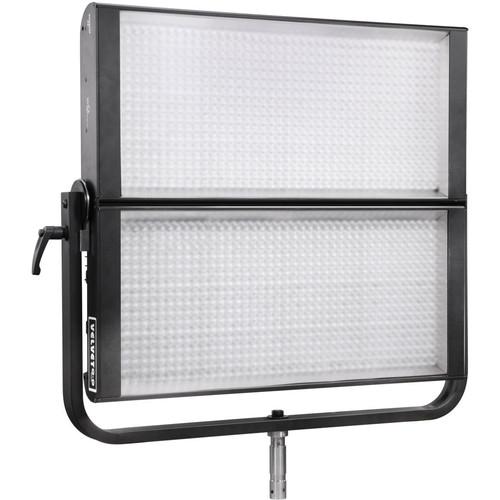

Product description The Velvet Light 2x2 Power Flood Bi-Color LED Panel from VELVETlight is a light source with an expansive 2700 to 6500K variable color range and a high CRI/TLCI rating of 95, indicating an accurate rendering of color. Light intensity is also variable from 0-100% with flicker-free performance. You can make these adjustments locally on the fixture or remotely with a console via onboard DMX. The sturdy aluminum fixture has a compact form factor with an illuminated surface measuring 27 x 24.5" and has negligible generated heat, making it a wise choice for placement in tight spaces or for use close up to the talent without causing discomfort. This listing is for the 2x2 only. The light requires the purchase of a 90 to 264 VAC power supply or battery plate for use. - Robust, Portable, Ready Rig
- Slim, compact, and easily hidden in tight locations or on low ceiling sets, the panel is quick to rig up or handhold. It features a quickly removable yoke with a 5/8" baby receiver combined with a 1 1/8" Junior pin and sliding 1/4"-20 threads for rigging located on panel sides.
- Lighting Made Easy
- With the Velvet Light 2x2 there is no need to use correction gels or replace diffusers to vary color temperature and light intensity. The soft beam produces open shadows and is easy on the talent's eyes.
- Extended Color Range
- The light goes beyond the 3200-5600K of most bi-color lights and offers a wide 2700-6500K color range.
- Powerful Soft Light
- Soft, wraparound light quality for simple beauty shots and natural portraits. The efficient Velvet Light Power 2
|
Upload User Manual
Have you got an user manual for the VELVETlight Velvet Light 2x2 Power Flood Bi-Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVELVETlight Power 2x2 Specs | | | Beam Angle | 30° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Housing Material | Aluminum | | Photometrics | 740 fc / 7962.4 lux at 10' / 3 m | | Expected Lamp Life | 50000 Hours (L70) | | Fixture Dimensions | Flood: 27.0 x 24.5 x 2.7" / 68.6 x 62.2 x 6.9 cm | | Fixture Weight | 31 lb / 14.06 kg | | | | Battery Plate | None | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | DC Input Power | 26 to 28 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 340 W | | | | Certifications | CE, as per Manufacturer | | IP Rating | IP51 |
