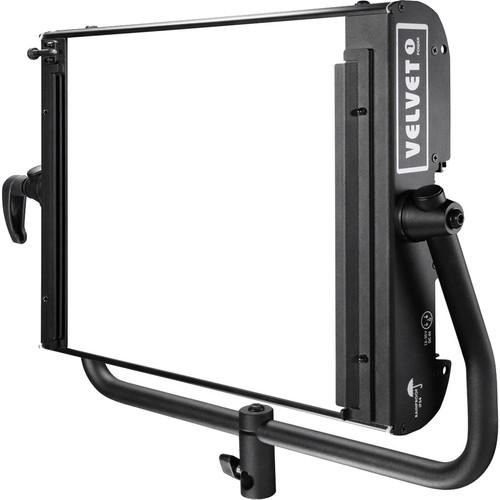

User Manual for VELVETlight VELVET Power 1 Flood Bi-Color LED Panel with Yoke Click to enlarge the picture
Contents of the user manual for the VELVETlight VELVET Power 1 Flood Bi-Color
- Product category: LED Lights VELVETlight
- Brand: VELVETlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VELVETlight LED Lights
|
User manual for the VELVETlight VELVET Power 1 Flood Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VELVETlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VELVETlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VELVETlight product will considerably shorten its lifespan!
|
Product description The VELVET Power 1 Flood Bi-Color LED Panel with Yoke from VELVETlight is a light source with an expansive 2700 to 6500K variable color range and a high CRI/TLCI rating of 95, indicating an accurate rendering of color. Light intensity is also variable from 0-100% with flicker-free performance at over 1000 frames per second. Both functions can be controlled locally on the fixture or remotely from a console via onboard DMX. The sturdy aluminum fixture has a compact form factor with an illuminated surface measuring 15 x 12" and has negligible generated heat, making it a wise choice for placement in relatively tight spaces or for use close up to the talent without causing discomfort, while its 30-degree beam angle makes it an asset for long-throw use or selective lighting. A special feature of the VELVET Power 1 is its IP54 weatherproof rating making ideal for shooting outdoors in rainy or inclement conditions. The Power 1 Flood ships without a power supply. Separate purchase of a 90-260 VAC power supply or a V-mount or Gold mount battery plate is required for use. - 30-Degree Beam Angle
- The fixture's tight 30-degree beam angle makes it an asset for long-throw use or selective lighting.
- Lighting Made Easy
- With the VELVET Power 1 there is no need to use correction gels or replace diffusers to vary color temperature and light intensity. The soft beam produces open shadows and is easy on the talent's eyes.
- Extended Color Range
- The light goes beyond the 3200-5600K of most bi-color lights and offers a wide 2700-6500K color range. The 3200/5600K quick-shift button gets you in the often-used color temperature range fast.
- Sturdy Construction and IP54 Rainproof
- Constructed from shock-resistant aluminum, the panel is also rainproof for use in inclement weather.
- Smart AC and DC Powered
- The panel is ready for worldwide use thanks to its 90 to 264 VAC power supply. It can also run on optional batteries when mains power is unavailable. 1
Please Note: A power supply must be purchased separately. close - Silent, Fan-Free Operation
- The Power 1 has none of the possible vulnerabilities of fan-based cooling. The VELVET's heat-dissipating structure gives the LED diodes a 50,000-hour lifespan and is completely silent, a valuable asset in sound-sensitive environments.
- Interior/Exterior Workhorse Performance
- The concentrated output is powerful enough to be bounced, shaped, or softened with traditional grip, VELVET hard diffusion, or foldable Snapgrids and Snapbags.
In the Box VELVETlight VELVET Power 1 Flood Bi-Color LED Panel with Yoke Yoke with Combination 1-1/8" Stud and 5/8" Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VELVETlight VELVET Power 1 Flood Bi-Color LED Panel with Yoke in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVELVETlight Power 1 Specs | | | Beam Angle | 30° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Stepped) | | Housing Material | Aluminum | | Photometrics | 185 fc / 1990.6 lux at 10' / 3 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 15.0 x 12.0 x 2.7" / 38.1 x 30.5 x 6.9 cm Illuminated Area of Panel | | Fixture Weight | 10 lb / 4.54 kg (Including Yoke) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | DC Input Power | 24 to 35 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | Power Pass-Thru | Yes |
