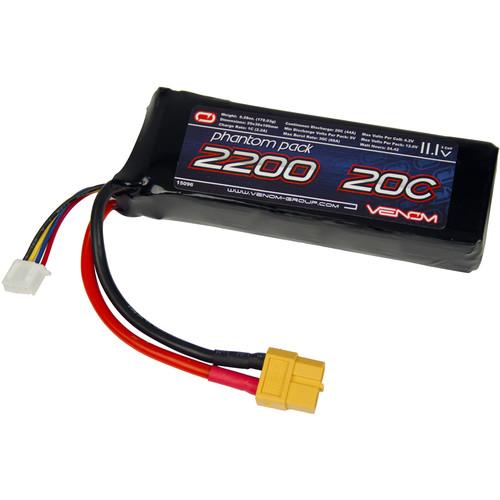

User Manual for Venom Group 11.1V 2200mAh LiPo Battery with XT60 Connector for Phantom 1 and FC40 Click to enlarge the picture
Contents of the user manual for the Venom Group 11.1V 2200mAh LiPo Battery
- Product category: DJI Accessories Venom Group
- Brand: Venom Group
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Venom Group DJI Accessories
|
User manual for the Venom Group 11.1V 2200mAh LiPo Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Venom Group product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Venom Group user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Venom Group product will considerably shorten its lifespan!
|
Product description Power various RC aerial vehicles and trucks with Venom's 11.1V 2200mAh LiPo Battery.
Featuring an XT60 connector and 11.1V of output power, this compact battery is compatible with the DJI Phantom 1 and FC40, as well as many other quadcopters, short course trucks, and 1:8 scale buggies. It offers 2200mAh and 24.4 watt hours of capacity. - Key Features
-
- 11.1V lithium-polymer battery with XT60 connector
- Compatible with DJI Phantom 1 and FC40
- Works with many quadcopters, short course trucks, and 1:8 scale buggies
- 2200 mAh
- 24.42 Wh
- Maximum continuous discharge rate of 20C (30C max burst rate)
- 3-cell configuration (3S)
- 14 AWG soft and flexible low-resistance silicone wire
UPC: 845623073730 In the Box Venom Group 11.1V 2200mAh LiPo Battery with XT60 Connector for Phantom 1 and FC40 Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Venom Group 11.1V 2200mAh LiPo Battery with XT60 Connector for Phantom 1 and FC40 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVenom Group 15096 Specs | Battery Type | Lithium-polymer (LiPo) | | Connector | XT60 | | Battery Cells | 3S | | Capacity | 2200 mAh | | Output Voltage | 11.1 V | | Maximum Continuous Discharge | 20 C (44 A)
30 C (66 A) (max burst rate) | | Charge Rate | 1 C (2.2 A)
3 C (6.6 A) (max approved charge rate) | | Watt Hours | 24.42 Wh | | Wire Gauge | 14 AWG soft and flexible low-resistance silicone wire | | Dimensions | 4 x 1.3 x 0.8" (10.3 x 3.4 x 2 cm) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.3 x 2.5 x 1.1" |
