User Manual for Venom Group DRIVE Series Traxxas X-Maxx RC 50C 4S 9000mAh 14.8V LiPo Battery Click to enlarge the picture
Contents of the user manual for the Venom Group DRIVE Series Traxxas X-Maxx
- Product category: Traxxas Accessories Venom Group
- Brand: Venom Group
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Venom Group Traxxas Accessories
 |
User manual for the Venom Group DRIVE Series Traxxas X-Maxx contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Venom Group product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Venom Group user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Venom Group product will considerably shorten its lifespan!
|

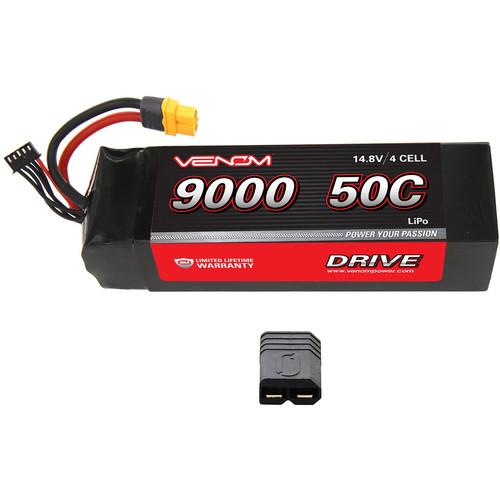

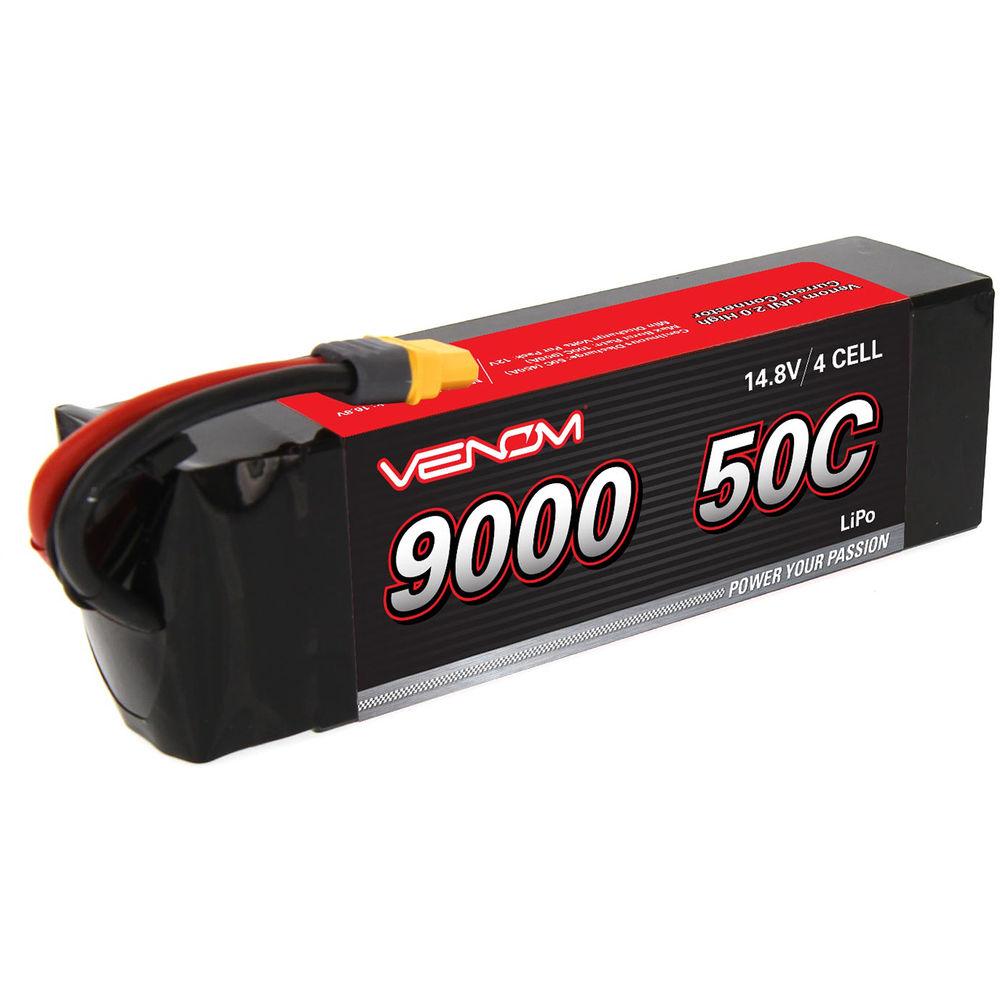

Product description The DRIVE Series Traxxas X-Maxx RC 50C 4S 9000mAh 14.8V LiPo Battery from Venom is designed to provide power to the Traxxas X-Maxx monster truck and other 1/5-sized (or smaller) vehicles, such as RC boats and 2WD/4WD cars, boats, cars, and buggies. It's engineered to provide your vehicle of choice with safe and stable power. Venom's Flak Jacket metal plates help to protect the battery when driving over rugged terrain. Venom also designed this battery to maximize compatibility between vehicles. Using their UNI 2.0 TRX plug system, you can use this battery with Amass XT60 and Traxxas plugs. UPC: 841850113683 In the Box Venom Group DRIVE Series Traxxas X-Maxx RC 50C 4S 9000mAh 14.8V LiPo Battery Adapter Plug Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Venom Group DRIVE Series Traxxas X-Maxx RC 50C 4S 9000mAh 14.8V LiPo Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVenom Group 15189 Specs | Battery Type | Lithium-ion polymer (LiPo) | | C Rate | 50C | | Volts | Volts: 14.8 VDC
Max Volts per Cell: 4.2 VDC
Max Volts per Pack: 16.8 VDC
Min Volts per Pack: 12 VDC | | Capacity | 9000 mAh | | Cell Count | 4S | | Cell Arrangement | 4S1P | | Maximum Continuous Discharge | 50C / 450 A | | Maximum Burst Rate | 100C / 900 A | | Charge Rate | 1C / 9 A
2C / 18 A (Max Approved Charge Rate) | | Wire Gauge | 12 AWG Soft and Flexible Low Resistance Silicone Wire | | Plug Type | Venom UNI 2.0 TRX Plug System

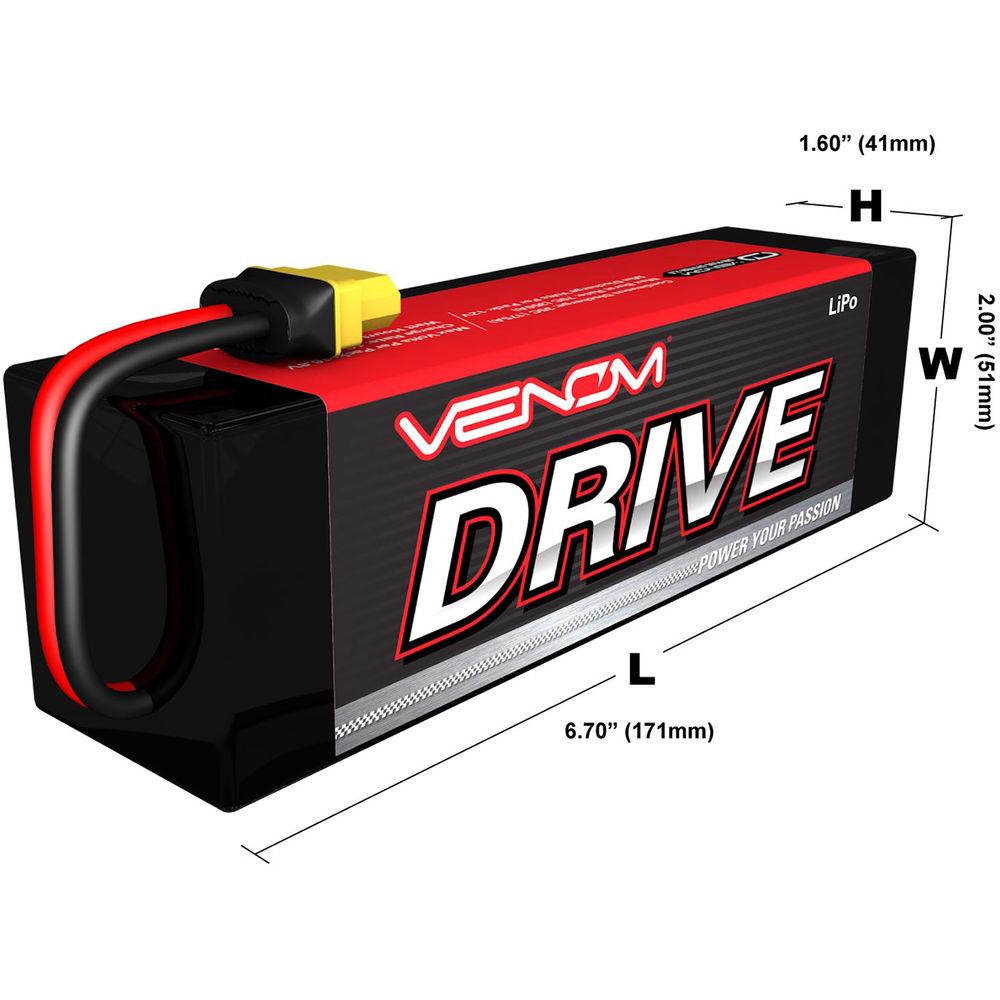

Compatible With: Amass XT60 and Traxxas | | Watt Hours | 133.2 | | Dimensions | 6.7 x 2.0 x 1.6" / 17.0 x 5.1 x 4.1 cm | | Weight | 30.4 oz / 861.8 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
