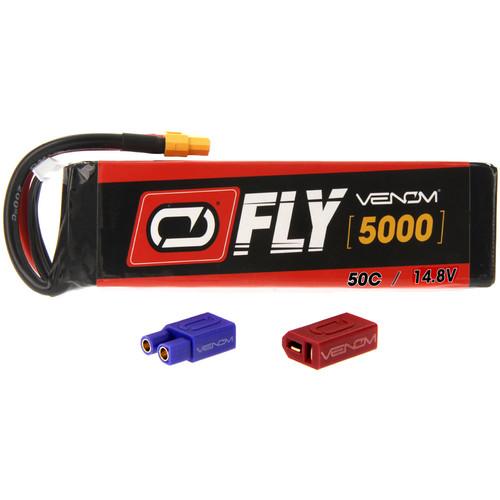

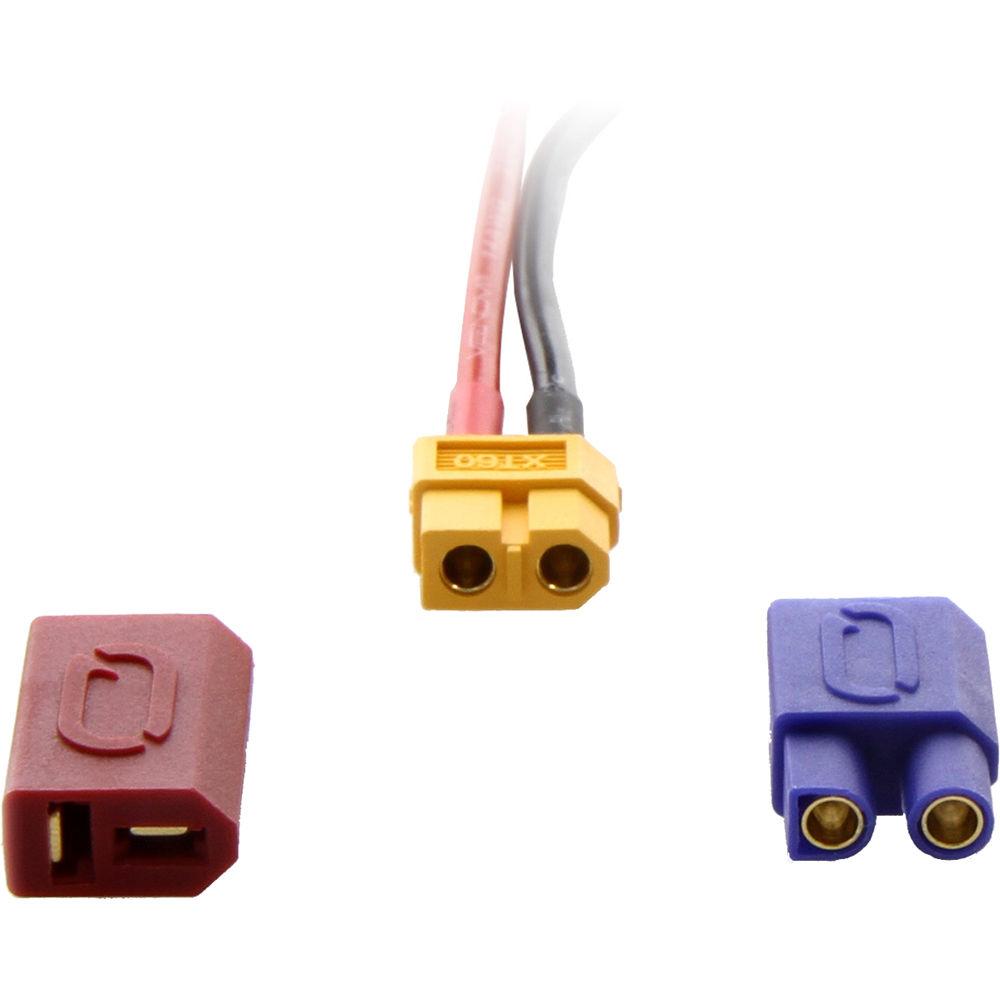

Product description Power up with the 14.8V Venom Fly 50C 4S 5000mAh LiPo Battery. Designed for remote controlled airplanes and helicopters, this battery is capable of 5C fast charging so you can spend more time in the air. 10 AWG low-resistance soft silicone wire connects it to the UNI 2.0 system, which uses an Amass XT60 connector that can be used in conjunction with the included Deans and EC3 adapters. UPC: 845623018960 In the Box Venom Group Fly 50C 4S 5000mAh LiPo Battery (14.8V) Deans Adapter EC3 Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Venom Group Fly 50C 4S 5000mAh LiPo Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVenom Group 25046 Specs | Type | Lithium-ion polymer (LiPo) | | Capacity | 5000 mAh | | C-Rating | 50C | | Voltage | Total: 14.8 V
Maximum per Cell: 4.2 V
Maximum per Pack: 16.8 V
Minimum per Pack: 12 V | | Watt Hours | 74 Wh | | Number of Cells | 4S | | Configuration | 4S1P | | Maximum Continuous Discharge | 50C (250 A) | | Maximum Burst Discharge | 80C (400 A) | | Charge Rate | 1C (5 A)

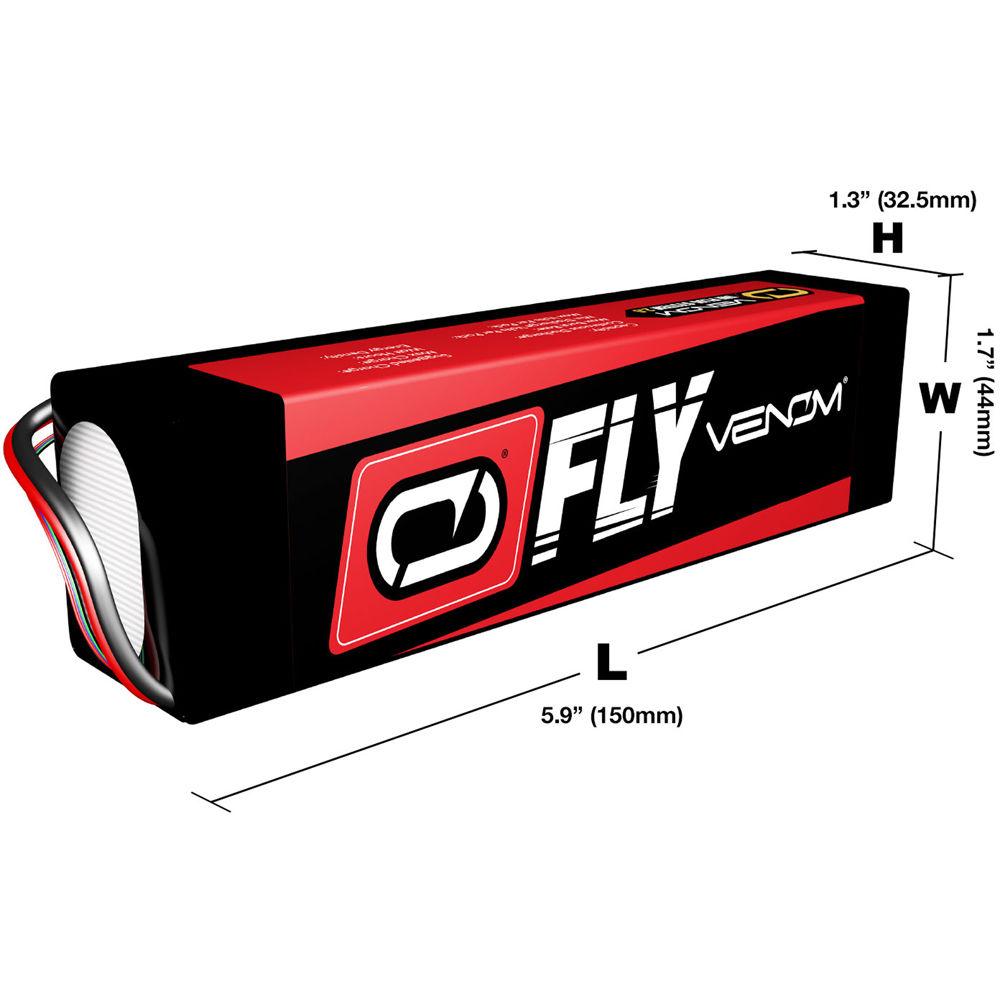

Maximum: 5C (25 A) | | Wire Type | Low-resistance flexible silicone | | Wire Gauge | 10 AWG | | Connector | Venom UNI 2.0 (compatible with XT60, Deans, and EC3) | | Dimensions | 5.9 x 1.7 x 1.3" (150.0 x 44.0 x 32.5 mm) | | Weight | 16.8 oz (476.6 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.5 x 7.5 x 0.2" |
