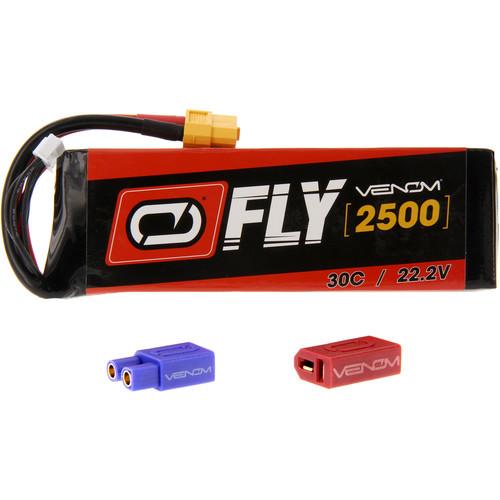

Product description The Venom FLY 30C 6S 2500mAh 22.2V LiPo Battery with UNI 2.0 Plug from Venom Power has been specifically manufactured for RC airplanes and helicopters. This FLY pack only adds 13.4 ounces of weight to your RC craft, while providing 2500mAh of capacity and a continuous discharge rate of 30C (75A).

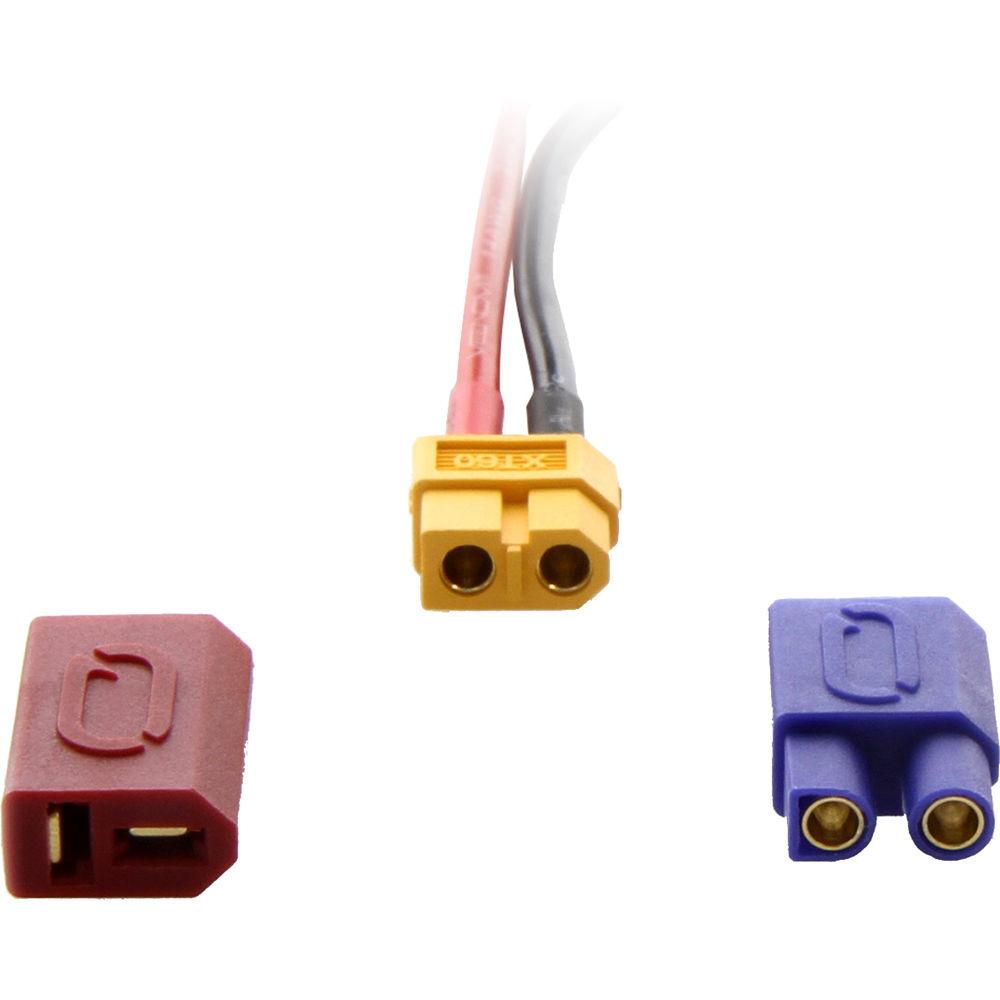

This Venom FLY battery pack also features the Venom UNI 2.0 plug, which utilizes an Amass XT60 battery connector. Deans and EC3 adapters are included for increased compatibility with a variety of RC batteries. UPC: 845623022042 In the Box Venom Group Venom FLY 30C 6S 2500mAh 22.2V LiPo Battery with UNI 2.0 Plug Amass XT60 to Deans Adapter Amass XT60 to EC3 Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Venom Group Venom FLY 30C 6S 2500mAh 22.2V LiPo Battery with UNI 2.0 Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVenom Group 25025 Specs | Fits Devices | Align T-REX 500 RC Helicopter (RH50E07XT)
Align T-REX 550 RC Helicopter (RH55E09XT)
Align T-REX 600E RC Helicopter (RH60E09XT)
Compass Atom 500
Compass Atom 6HV
Hirobo Lepton EX
MSH Protos
Mikado Logo 400
Other RC aircraft that are compatible with this battery's specifications | | Volts | 22.2 V | | Capacity | 2500 mAh | | Cell | Cell Count: 6S
Cell Configuration: 6S1P | | Discharge | Continuous Discharge: 30C (75 A)
Max Burst Rate: 50C (125 A) | | Voltage | Maximum Per Cell: 4.2 V
Maximum Per Pack: 25.2 V
Minimum Per Pack: 18 V | | Charge Rate | Charge Rate: 1C (2.5 A)

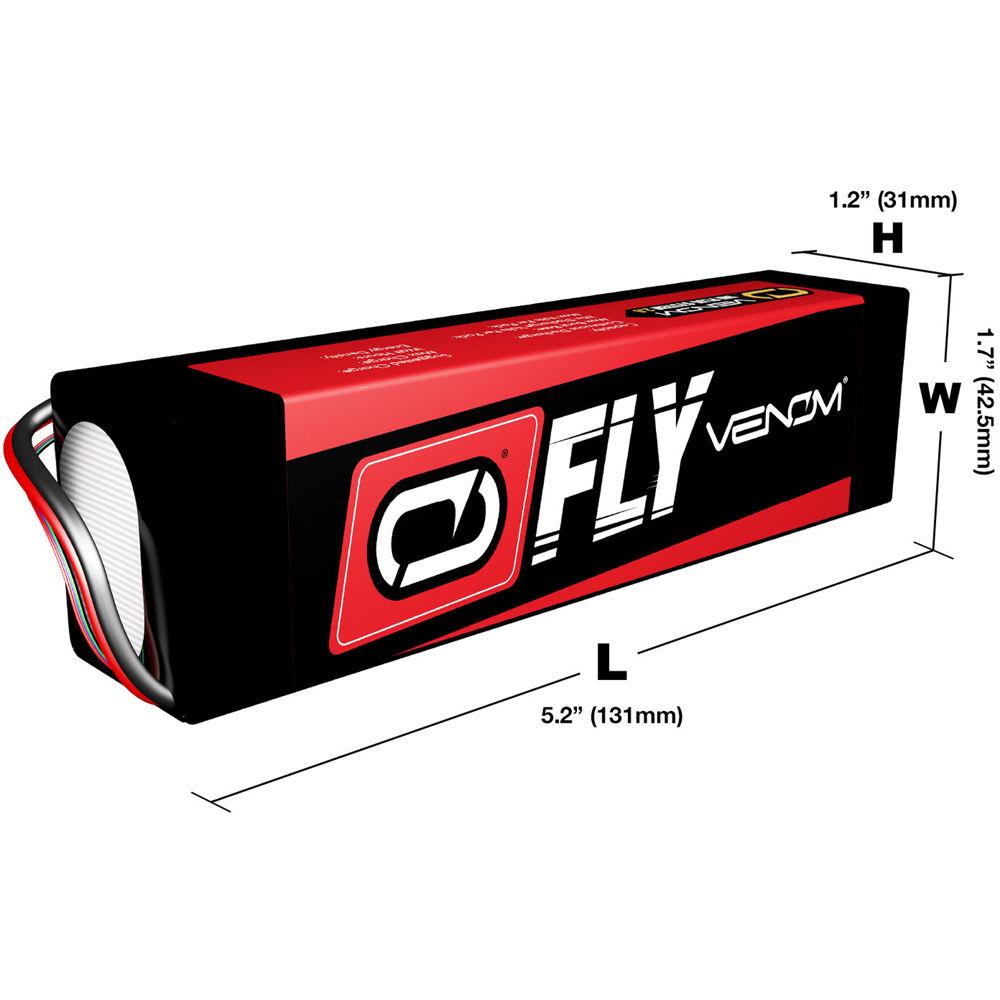

Maximum Approved Charge Rate: 5C (12.5 A) | | Wire Gauge | 12 AWG Soft and Flexible Low-Resistance Silicone Wire | | Plug Type | Venom UNI 2.0 Plug (Compatible with XT60 Plug, Deans Plug, and EC3 Plug) | | Dimension | 5.2 x 1.7 x 1.2" / 13.1 x 4.3 x 3.1 cm | | Watt Hours | 55.5 Wh | | Weight | 13.4 oz / 379.9 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.6 x 4.0 x 1.6" |
