User Manual for Venus Optics Laowa 9mm f 2.8 Zero-D Lens Click to enlarge the picture
Contents of the user manual for the Venus Optics Laowa 9mm f 2.8
- Product category: DJI Accessories Venus Optics
- Brand: Venus Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Venus Optics DJI Accessories
 |
User manual for the Venus Optics Laowa 9mm f 2.8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Venus Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Venus Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Venus Optics product will considerably shorten its lifespan!
|

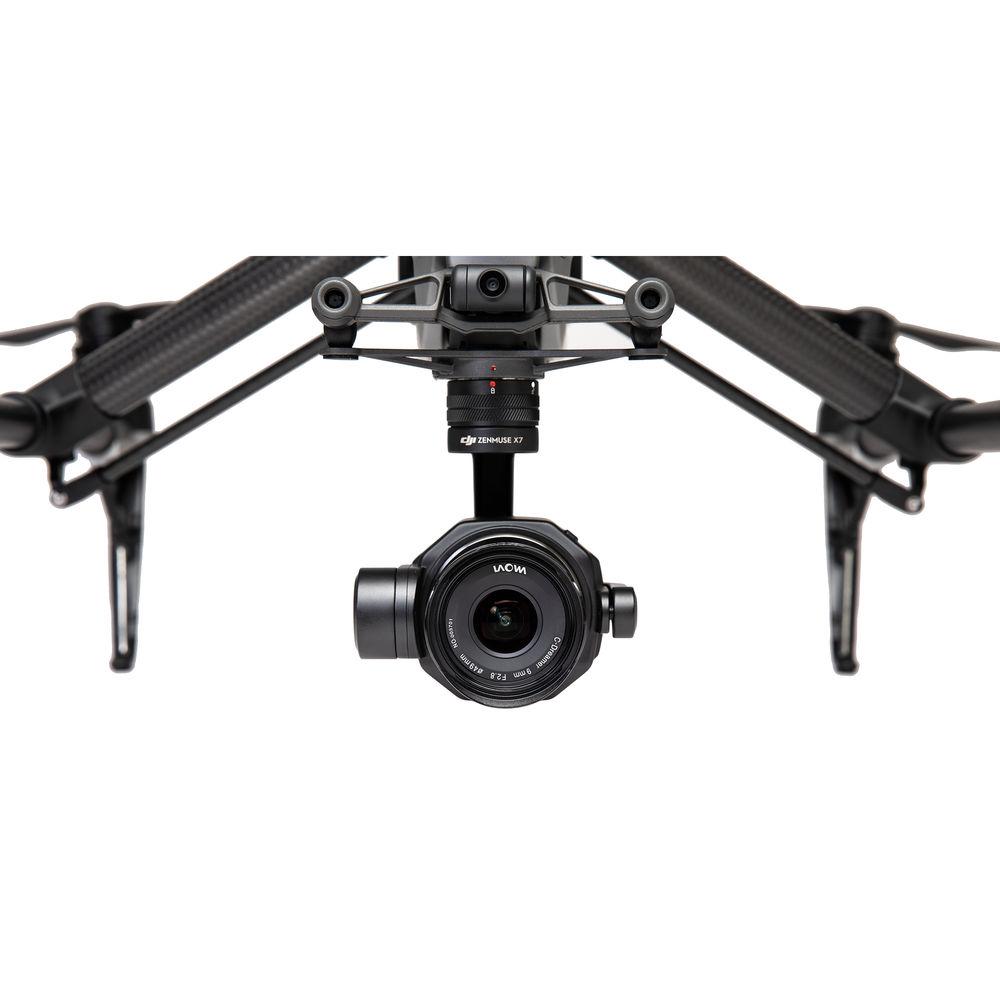

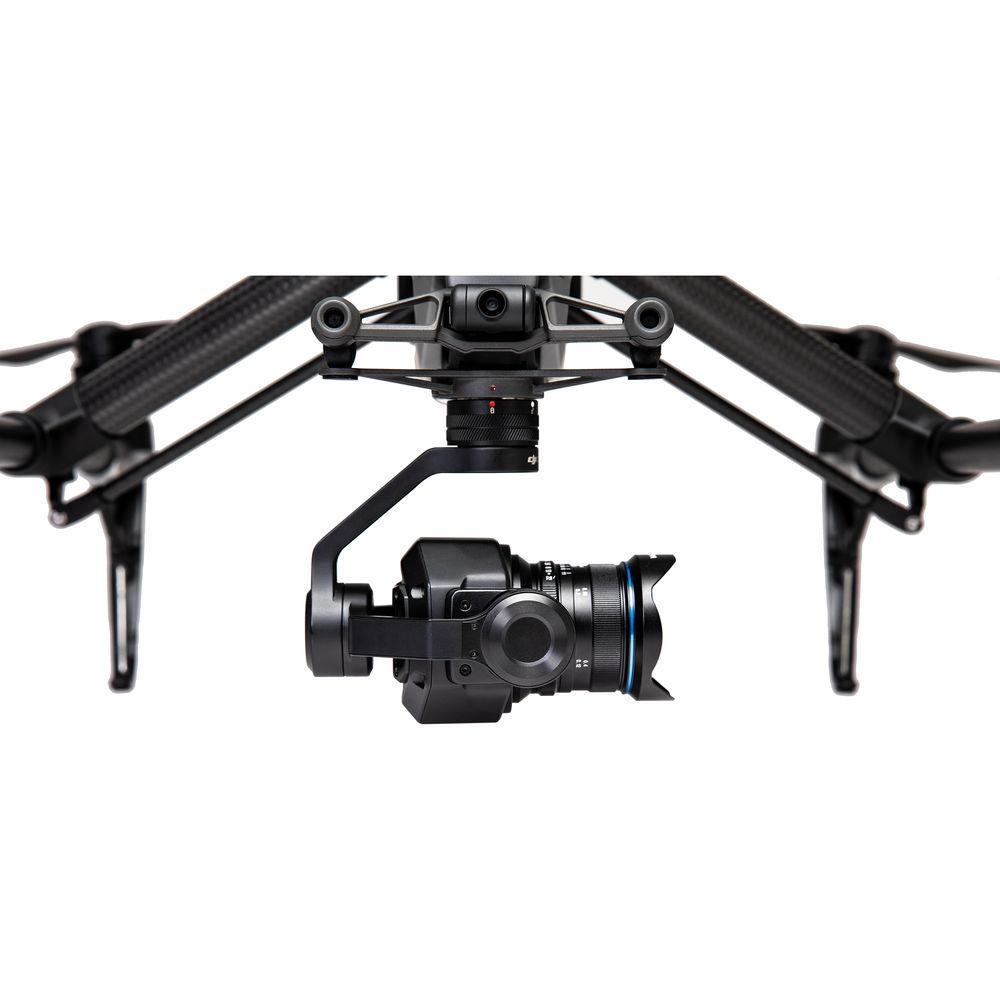

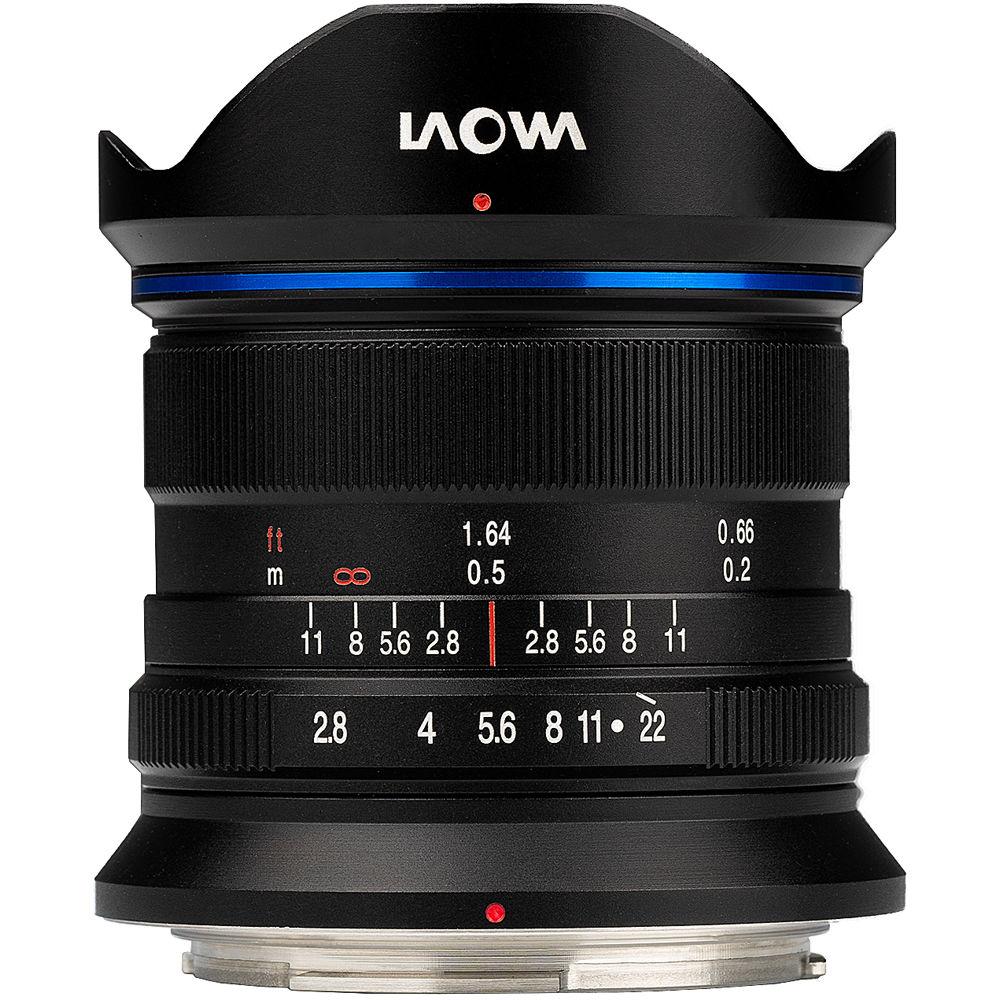

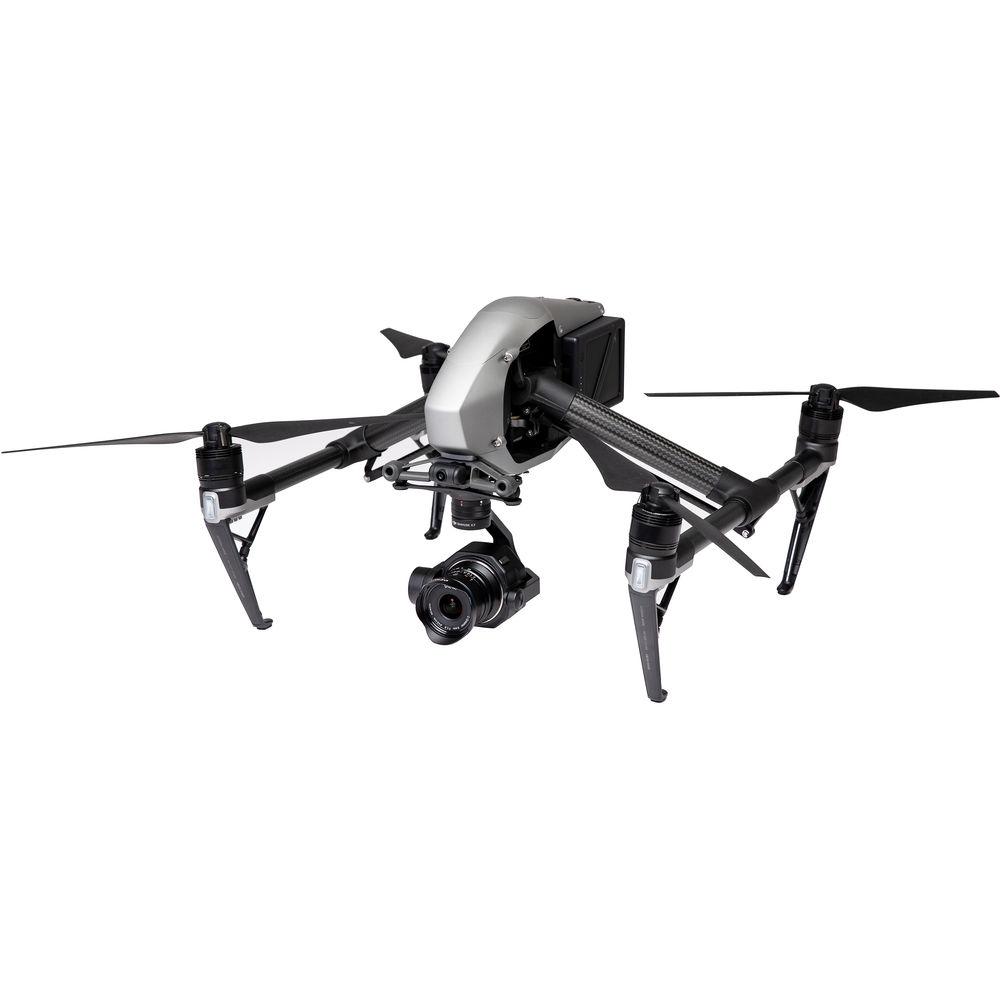

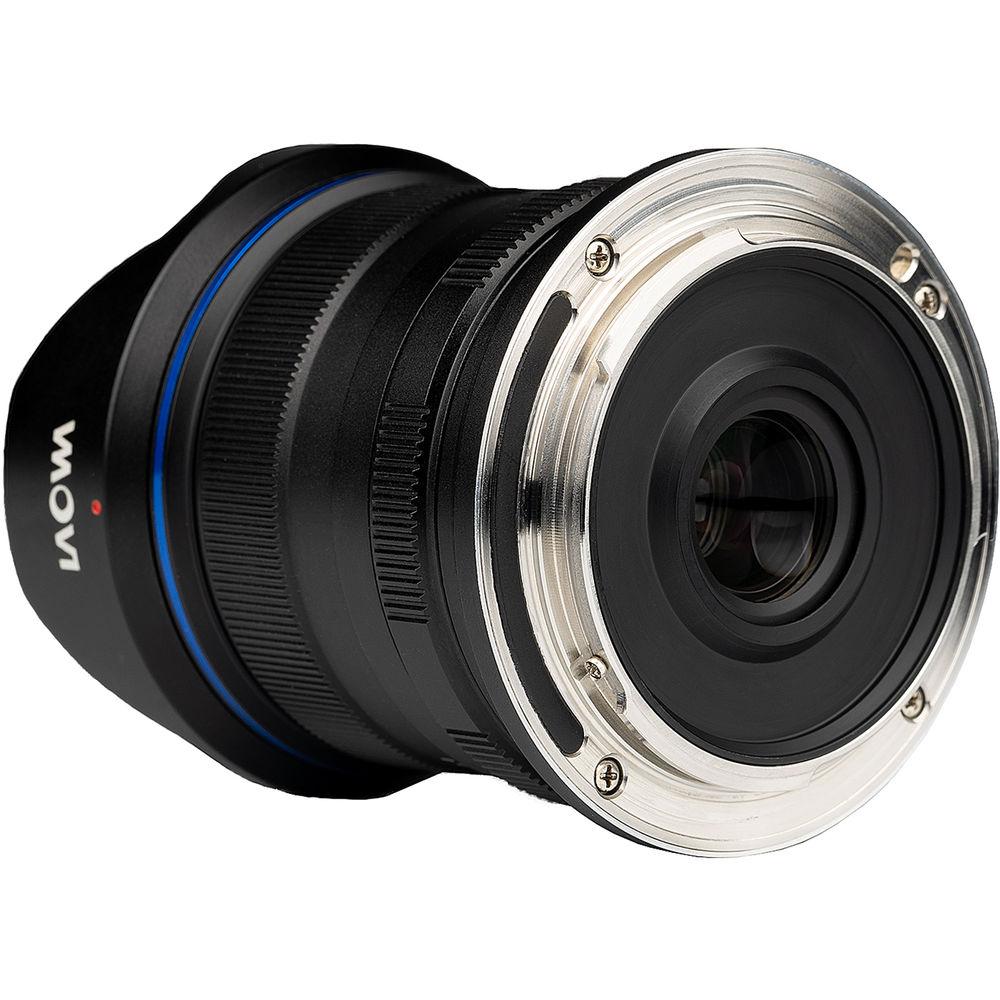

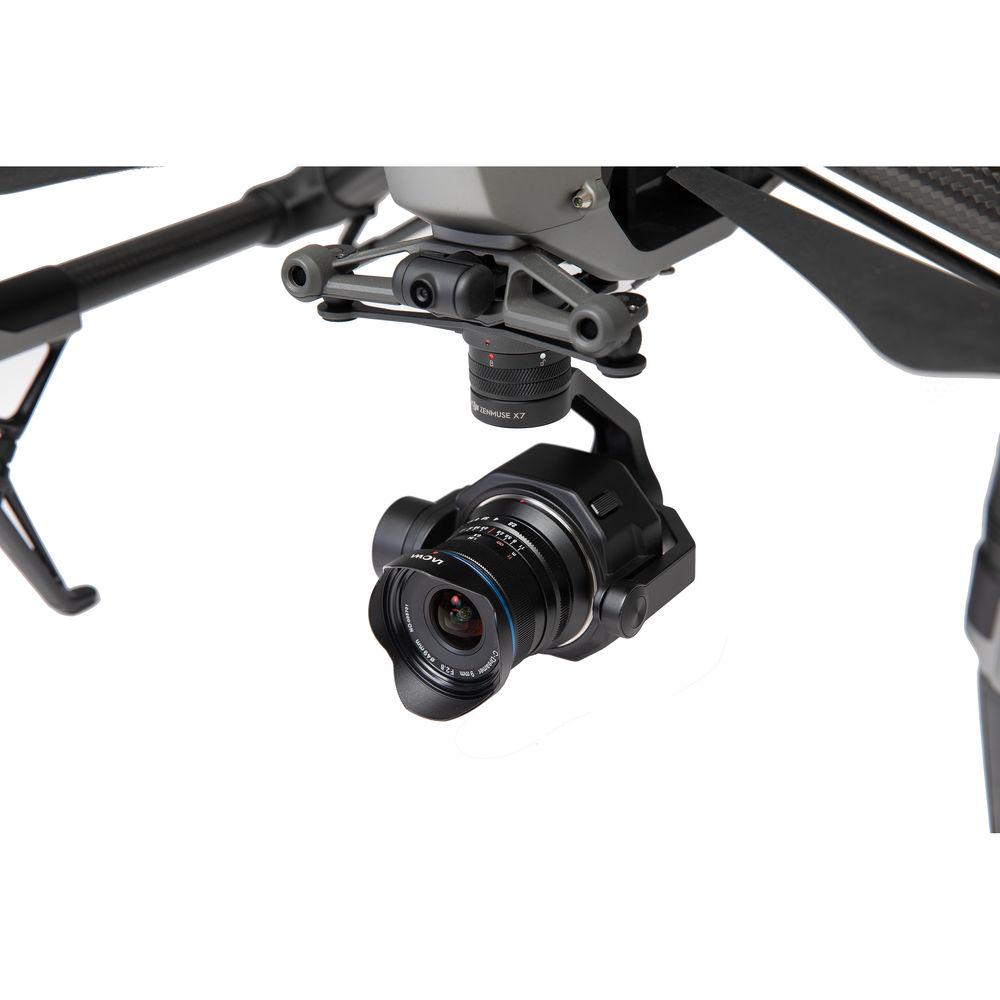

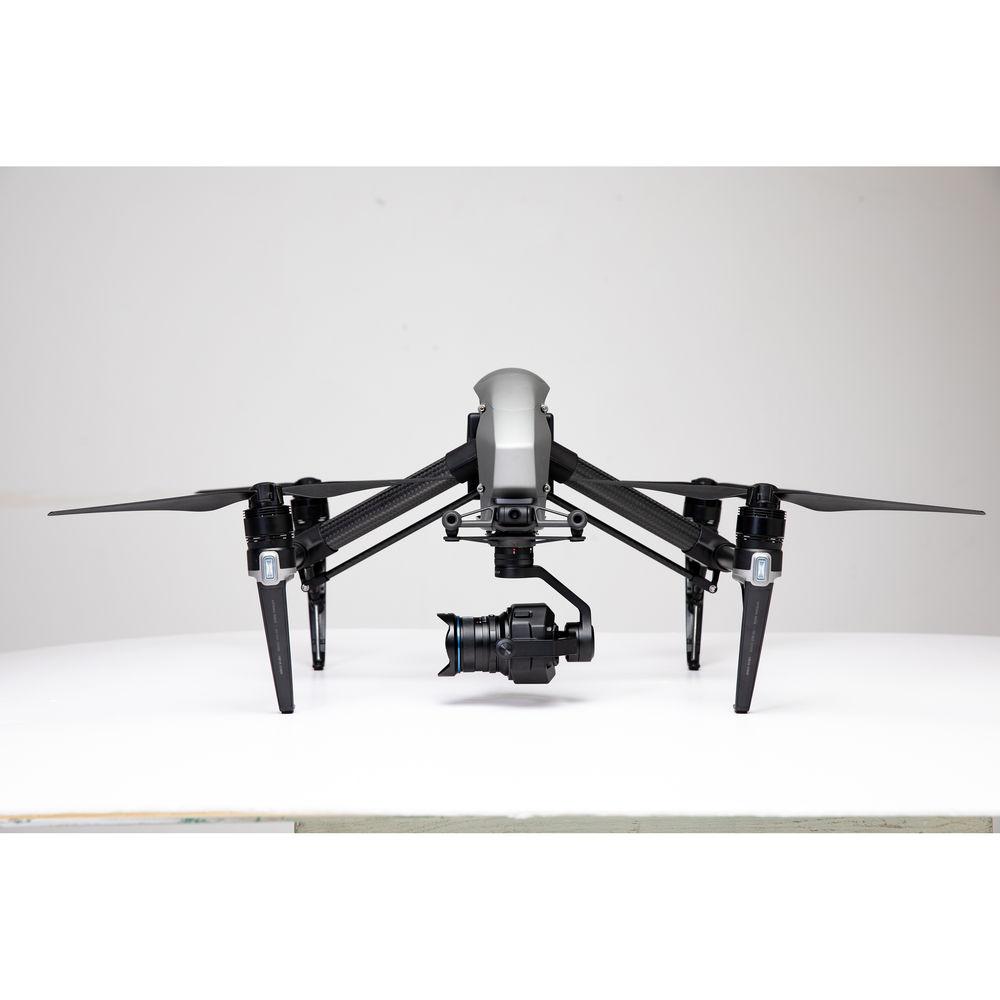

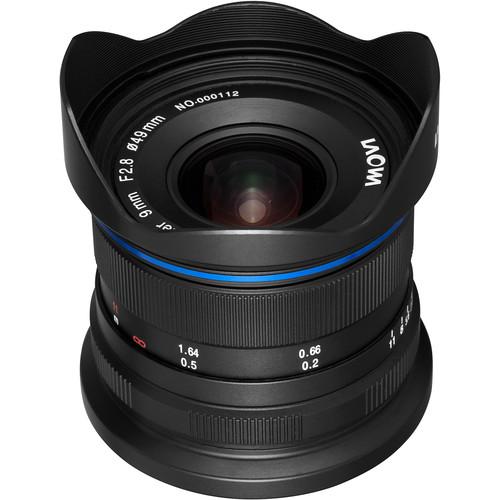

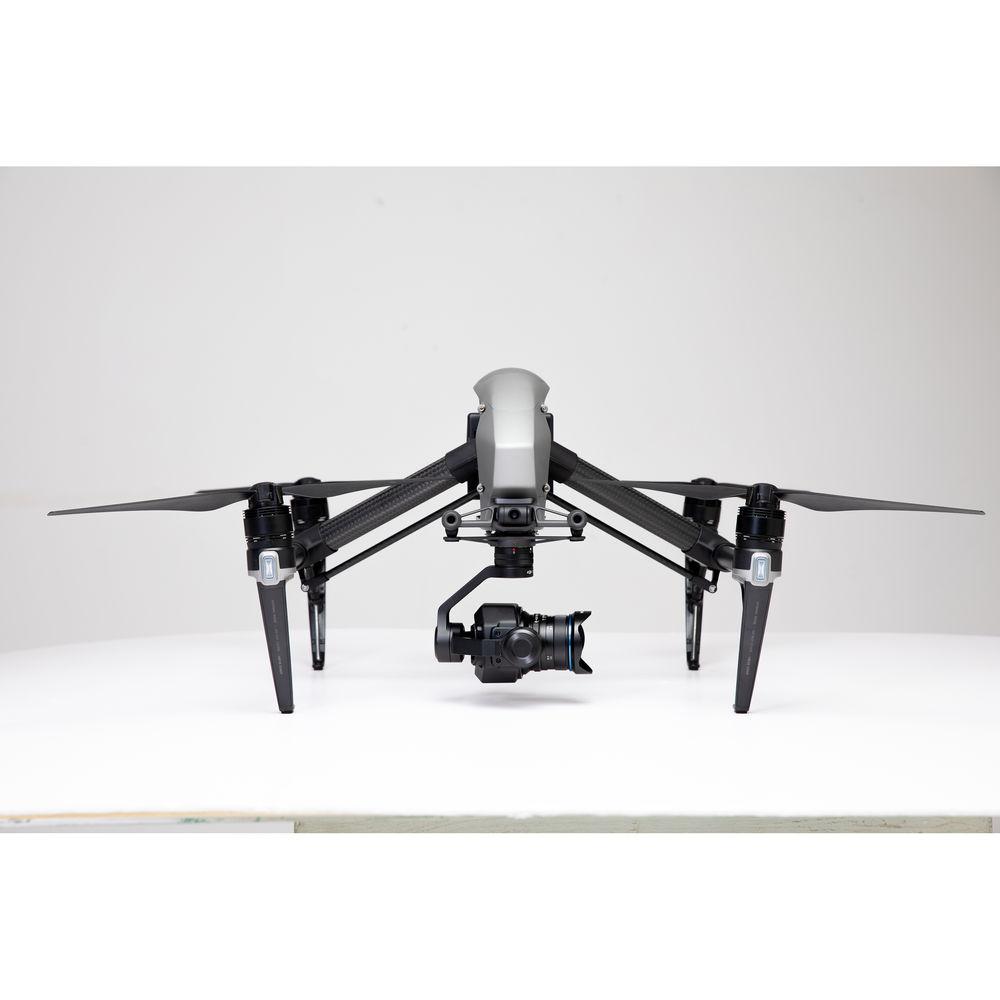

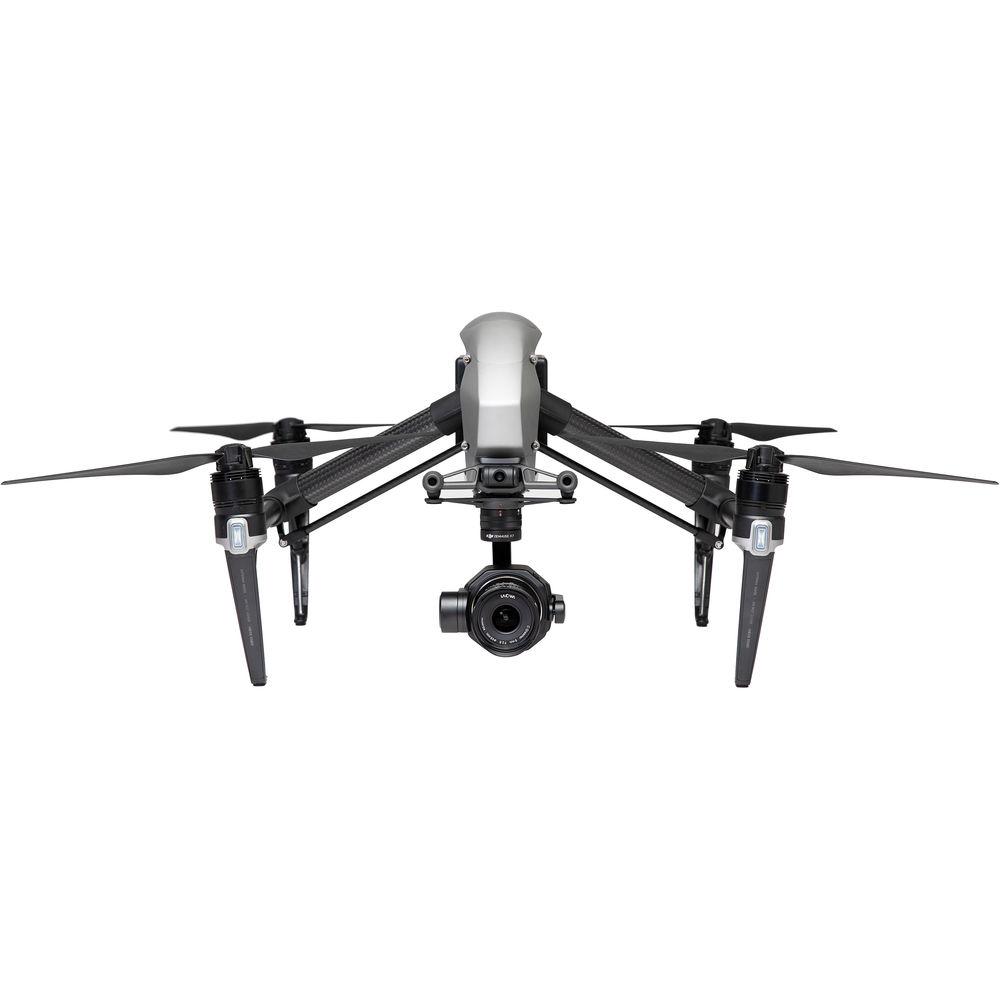

Product description A fast and bright wide-angle prime, the DL mount Laowa 9mm f/2.8 FE Zero-D Lens from Venus Optics is a lightweight, compact lens with a sophisticated optical design to effectively limit distortion. Its DL mount is designed to fit the X7 gimbal on a DJI Inspire 2 drone, and it covers APS-C / Super 35 sensors.
The bright f/2.8 maximum aperture makes this lens especially useful for low-light use, and when paired with the 4.7" minimum focusing distance, shallow depth of field imagery can also be produced. The optical construction includes three extra-low dispersion elements and two aspherical elements to control both chromatic and spherical aberrations for greater sharpness, clarity, and reduced color fringing.
The lens features a 49mm front filter thread, a 113° angle of view, and weighs only 7.6 oz. A petal-shaped lens hood is provided to reduce flare and ghosting. - Designed for the X7 gimbal on the DJI Inspire 2 drone.
- Ultra wide-angle DL mount prime designed for APS-C Super 35 sensors, this 9mm f/2.8 provides a 13.5mm equivalent focal length.
- Relatively fast f/2.8 maximum aperture low-light shooting applications.
- Renders subjects with minimal distortion to suit landscape and architectural applications.
- Three extra-low dispersion elements reduce chromatic aberrations and color fringing for increased clarity and color neutrality. Two aspherical elements are also featured to limit spherical aberrations for improved sharpness.
- Manual focus design permits working with subjects as close as 4.7" away with a maximum magnification ratio of 1:7.5.
- This lens can accept 49mm screw-in filters on the front of the lens.
In the Box Venus Optics Laowa 9mm f/2.8 Zero-D Lens (DL Mount) Front and Rear Lens Caps Lens Hood Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Venus Optics Laowa 9mm f 2.8 Zero-D Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVenus Optics VE928DL Specs | Focal Length | 9mm | | Aperture | f/2.8 | | Camera Mount Type | DL Mount (DJI Inspire 2 Drone with X7 Gimbal) | | Format Compatibility | APS-C / Super 35 | | Angle of View | 113° | | Minimum Focus Distance | 4.7" / 12 cm | | Reproduction Ratio | 1:7.5 | | Optical Design | 15 Elements in 10 Groups | | Diaphragm Blades | 7 | | Filter Thread | 49 mm | | Dimensions | 2.4 x 2.1" / 6 x 5.3 cm | | Weight | 7.6 oz / 215 g | | | | Package Weight | 0.825 lb | | Box Dimensions (LxWxH) | 13.5 x 4.45 x 3.8" |
