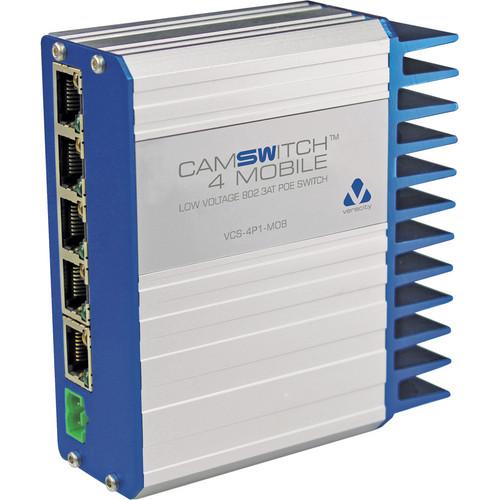

Product description The 4+1-Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch from Veracity offers network solution for transport, battery, solar, and low-voltage applications. It is a compact and versatile switch that provides PoE+ from a wide input range of 8.5 to 50VDC. It supplies up to 80 W total power when input is above 10V, 50W when the input voltage drops below 10V. CAMSWITCH Mobile provides a network connection and optional PoE to 4 cameras. PoE is converted to IEEE 802.3af/802.3at levels from a 10 or 40 VDC supply. The power output can be maximized up to 80W of total power, at its rated ambient temperature of 122°F (50°C). CAMSWITCH Mobile can operate from an 8.5 to 50VDC supply, and step this up to a steady PoE voltage, internally. It is equipped with 4 network ports with 802.3at PoE and one data-only port. All ports support 10/100 Base-T with auto-negotiation and auto-crossover. PoE is delivered on the Ethernet data pairs for compatibility with external 4-pin. The switch has a rugged enclosure with adjustable mounting brackets. Note: Cables should be secured appropriately to prevent vibration. UPC: 892314002180 In the Box Veracity 4+1-Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity 4 1-Port CAMSWITCH Mobile Low-Voltage 802.3at PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VCS-4P1-MOB Specs | | | PoE Standard | IEEE 802.3.af/IEEE 802.3at compatible Not isolated from DC input. For use in closed-system transport applications. Connected devices must be IEEE compliant | | Ports | 4 x Network ports with 802.3at PoE
1 x Data only
1 x 12/24 VDC Power input | | Rate | 10BASE-T or 100BASE-T and duplex, auto-configuring for speed | | Cable | Straight through or crossover Cat5, Cat5e, or Cat6 patch | | | | Connector | Detachable screw terminal | | Voltage | 8.5 - 50 V (minimum startup voltage is 10.5 V, supports engine cranking and reduce over-discharge) DC only | | Fuse Rating | Power Budget: 80 W
Fuse Rating (12 V): 10 A
Fuse Rating (24 V): 5 A
Power Budget: 60 W
Fuse Rating (12 V): 7.5 A
Fuse Rating (24 V): 4 A
Power Budget: 40 W
Fuse Rating (12 V): 5 A
Fuse Rating (24 V): 3 A
Power Budget: 20 W
Fuse Rating (12 V): 3 A
Fuse Rating (24 V): 2 A
Power Budget: No PoE
Fuse Rating (12 V): 2 A
Fuse Rating (24 V): 2 A Use of external fuse is recommended. | | Power Output | 24 V Input: 80 W total power
12 V Input: 80 W (reduce to 65 W for maximum 86°F (30°C) rise above ambient temperature)
<12 v input: 60 w (reduce to 50 if voltage can drop below 10 v) PoE power conversion produces heat. The above mentioned limits are for horizontal mounting with ventilation. Installation in enclosed spaces will cause additional heating and power limitation. | | LED Indicators | Green: PoE ports Constant: PoE enabled
Off: No PoE requested
Green: Non-PoE Ports Constant: Power OK
Off: No power
Yellow
Constant: Ethernet OK
Blink: Network activity | | | | Temperature | 14 to 122°F (-10 to 50°C) | | Relative Humidity | Up to 85% (non-condensing) | | Compliance | CE
FCC (Part 15)
RoHS | | Mounting Holes | 0.1" (5.0 mm) mounting holes on 4.8" (122.0 mm) centers | | Dimensions (L x W x H) | Without Clips: 4.3 x 3.9 x 1.5" (110.0 x 100.0 x 40.0 mm)
Including Clips: 5.1 x 3.9 x 1.5" (131.0 x 100.0 x 40.0 mm)* *The width is including connectors | | Weight | 10.2 oz (290.0 g) | | | | Package Weight | 0.825 lb | | Box Dimensions (LxWxH) | 5.6 x 4.35 x 1.85" |
