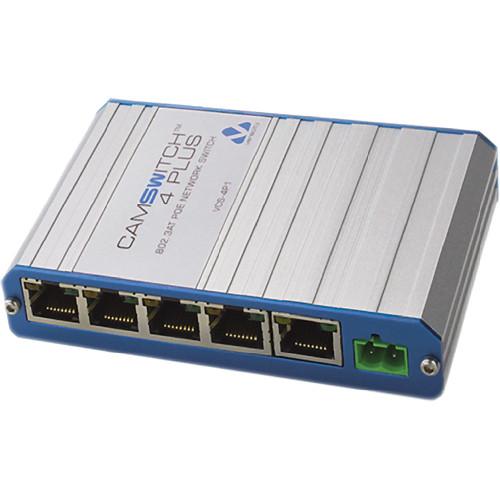

User Manual for Veracity CAMSWITCH Plus 4 1 Port 802.3at PoE Network Switch Click to enlarge the picture
Contents of the user manual for the Veracity CAMSWITCH Plus 4 1 Port
- Product category: Network Switches, Bridges & Hubs Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Network Switches, Bridges & Hubs
|
User manual for the Veracity CAMSWITCH Plus 4 1 Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description Whether mounted on the wall or in a rack, the CAMSWITCH Plus 4+1 Port 802.3at PoE Network Switch from Veracity features four PoE outputs and a single non-PoE downlink which can also act ac a PoE input. This network switch comes with a dedicated power supply making it easy to inject power into the network or simply utilize existing PoE power within the network to power the switch. Once configured, this rugged switch can power devices like IP cameras, additional switches or routers, and much more as it supports the 802.3af/at PoE networking standard and provides up to 57 V of PoE power. General - Features 4 802.3at PoE ports and a 5th port for downlink
- Use with CAT5, 5e, or 6 patch or crossover cables
- Auto-configuration for speed (10 or 100BASE-T) and duplex
- All ports support 10/100 Base-T with auto-negotiation and auto-crossover
- When DC powered with an optional power supply, CAMSWITCH 4 Plus delivers a network connection with optional 802.3af/at power to up to 4 PoE or non-PoE devices
- Supports PoE devices up to 25W total when PoE powered
- Non-PoE devices may also be connected when the device is PoE powered
- CAMSWITCH 4 Plus can deliver up to full 802.3at PoE plus power on all 4 ports
- Can be securely mounted to a flat surface with the included clips
Applications - IP Video
CAMSWITCH Plus delivers a compact, reliable, and scalable solution to IP video networking which can grow with the installation - Wireless
Power over Ethernet means that Wi-Fi access points and routers can be located optimally and moved easily; CAMSWITCH Plus extends this benefit to more devices and greater distances - IP Telephony
Provides a simple way to add IP telephones or additional network ports to existing network outlets, without requiring a mains power connection - OEM / Custom
CAMSWITCH Plus platform can be customized to your needs UPC: 892314002173 In the Box Veracity CAMSWITCH Plus 4+1 Port 802.3at PoE Network Switch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity CAMSWITCH Plus 4 1 Port 802.3at PoE Network Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VCS-4P1 Specs | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 85% | | Certifications | RoHS, as per Manufacturer | | | | Indicator Lights | Activity, Link, PoE, Power | | Dimensions | 5.2 x 3 x 0.9" / 13.1 x 7.6 x 2.2 cm | | Weight | 0 lb / 0 kg | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.55 x 3.1 x 1.1" |
