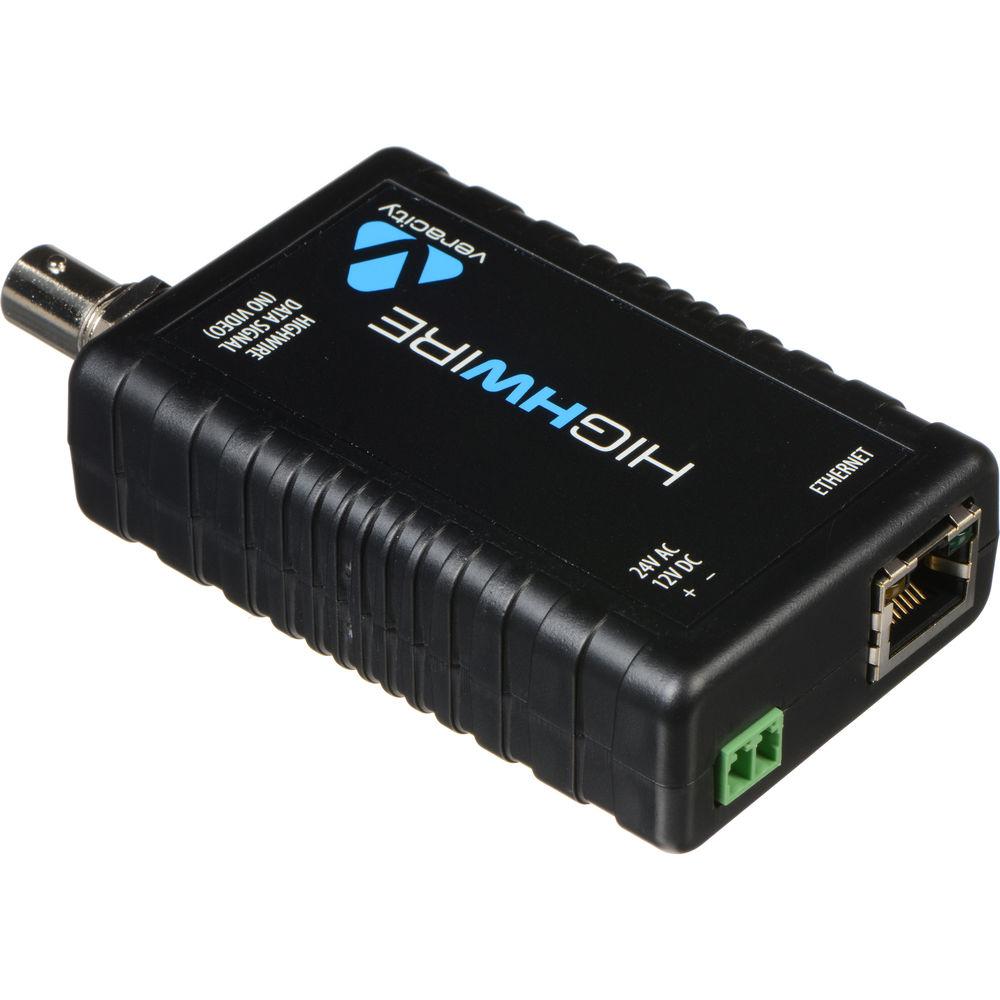

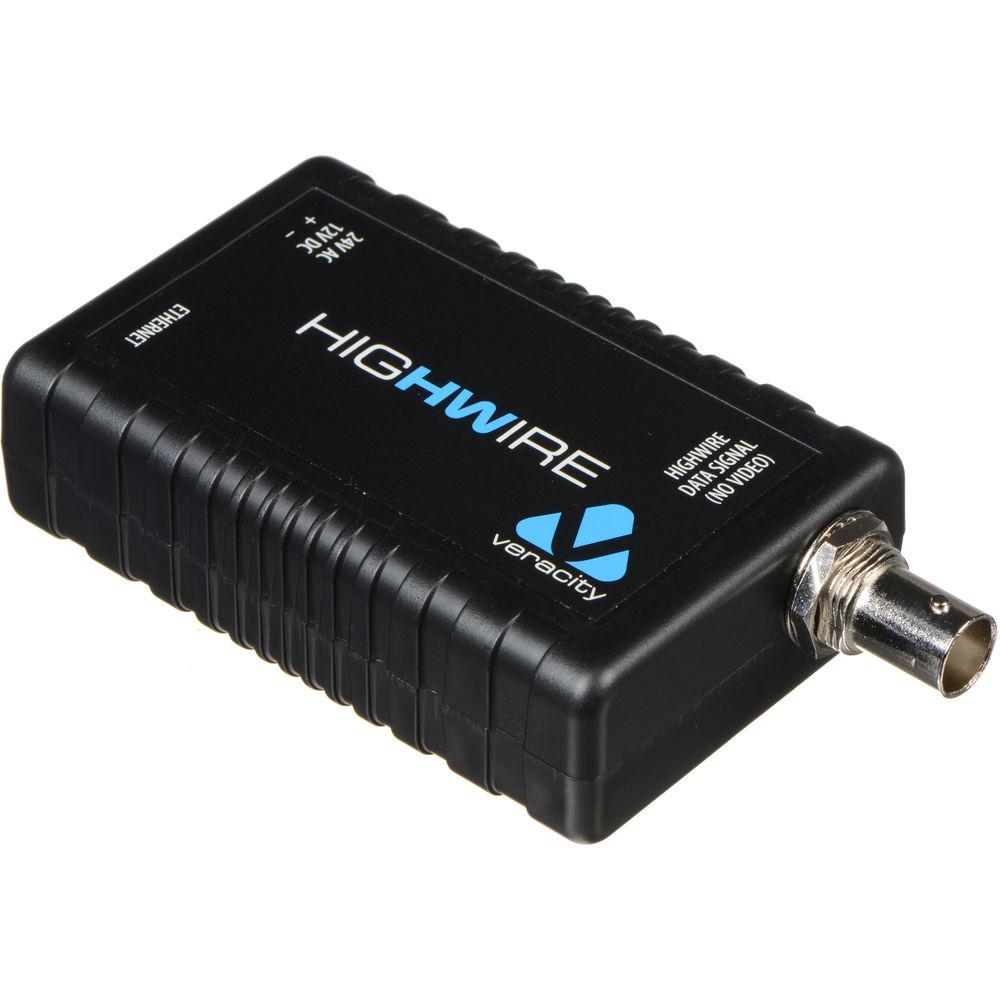

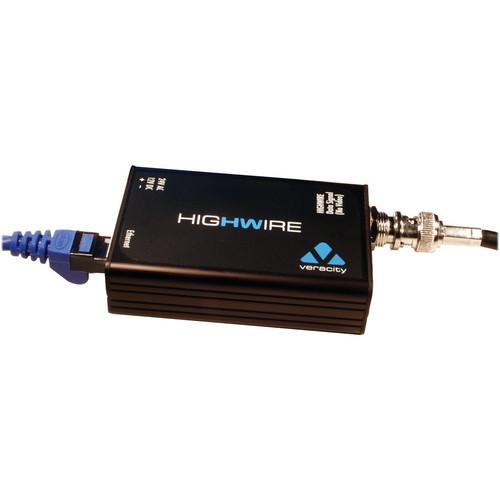

User Manual for Veracity Highwire Ethernet over Coax Adapter Click to enlarge the picture
Contents of the user manual for the Veracity Highwire Ethernet over Coax Adapter
- Product category: Ethernet Extenders Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Ethernet Extenders
 |
User manual for the Veracity Highwire Ethernet over Coax Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description Easily convert your BNC cabling into a high-speed RJ45 Ethernet connection with the Highwire Ethernet over Coax Adapter from Veracity. Using the adapter, you can replace analog cameras with IP cameras, while still using your existing cables. This package includes one adapter, however, two adapters per link are required, one connected to your IP camera and one connected to your PoE switch.Speed, duplex, and crossover are sensed as soon as you connect the adapter to your system so that no setup is required. Furthermore, no configuration is required when you connect the unit to each end of the coaxial cable, as the link will be established automatically. The Ethernet over Coax Adapter is invisible to Ethernet data, and it does not need a MAC or IP address. In addition to auto-optimizing for all 75 ohm coaxial cables, the long connection range of the converter makes it suitable for network connections beyond 328' (100m). Featuring a universal power input, the Highwire Ethernet over Coax Adapter is suitable for low-voltage installations and use with legacy coaxial cables. Compared to Cat 5 cables, the coaxial cables coil and bend, enabling you to provide network access to elevator carriages, VoIP items, security systems, lift panels, and similar devices. - Converts analog video cables into a high-speed network connection
- Allows you to replace analog cameras with IP cameras, without installing any new cables
- Speed, duplex, and crossover are sensed on connection
- No need for MAC or IP addresses
- Invisible to Ethernet data
- Auto-optimizing for all 75 ohm coaxial cables
- Long connection range of up to 1650' with RG11 cable, or 930' with CCTV-grade RG59 cable
- Suitable for network connections beyond 328'
- Suitable for low-voltage installations; can be used on existing coaxial cables
- Coaxial cables coil and bend appropriately compared to Cat 5 cables
- Allows network access to elevator carriages, VoIP items, security systems, lift panels, and similar devices
- No modification needed when used with 50 ohm coax cables or cables of other impedance
- Optional wall-mounting brackets and rack-mounting kit
UPC: 892314002005 In the Box Veracity Highwire Ethernet over Coax Adapter (Single) Limited 5-Year Warranty Quick-Start Guide PDF 149.6kbezfdrfzqau Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity Highwire Ethernet over Coax Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VHW-HW Specs | Interface | Connector Type: BNC 75 ohms
Cable Impedance: 75 ohms (RG59 or similar)
Data Throughput Max: 200 Mbps (total up + down)
Auto-adaptation to cable conditions | | Range | Auto-Optimizing for all 75 ohm Coaxial Cables:
920' / 280 m full-rate over video-grade RG59 (Up to 1150' / 350 m depending on quality)
1150' / 350 m full-rate over RG6
1640' / 500 m full-rate over RG11 | | Network | Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex
Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables | | Ethernet | Connector Type: RJ45
Cable Type: Straight through or cross-over, auto detected
Rates Supported: 100BaseT / 10BaseT, full/half duplex with auto negotiation | | Indicators | Green - Constant: Power OK, Full HIGHWIRE data link
Green - Slow: Power OK, Auto-adapted HIGHWIRE data link
Green - Blink: Power OK, no HIGHWIRE link
Green - Off: No power
Amber - Constant: Ethernet link On
Amber - Blink: Network traffic | | Power | Unit Power: 1.5 W
Connector Type: Screw terminals with detachable plug
Power Supply Type: IEC Class II isolated only
Operating Voltage: 8 to 57 VDC or 20 to 28 VAC (type and polarity auto detected)
Supply Current: 120 mA (12 V), 60 mA (24 V) | | Environment | Operating Temp.: 14 - 122°F / -10 ~ +50ºC
Relative Humidity: 85% non-condensing
Grounding: Chassis should be grounded and is connected to the BNC shield | | Compliance | CE, FCC, RoHS | | Dimensions | 3.3 x 2.1 x 1" / 84 x 54 x 24 mm
With Connector: 4 x 2.1 x 1" / 102 x 54 x 24 mm | | Weight | 3.9 oz / 110 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.1 x 3.0 x 1.3" |
