User Manual for Veracity HIGHWIRE Longstar Long Range Ethernet over Coax Adapter with PoE Click to enlarge the picture
Contents of the user manual for the Veracity HIGHWIRE Longstar Long Range Ethernet
- Product category: Signal Extenders Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Signal Extenders
 |
User manual for the Veracity HIGHWIRE Longstar Long Range Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|

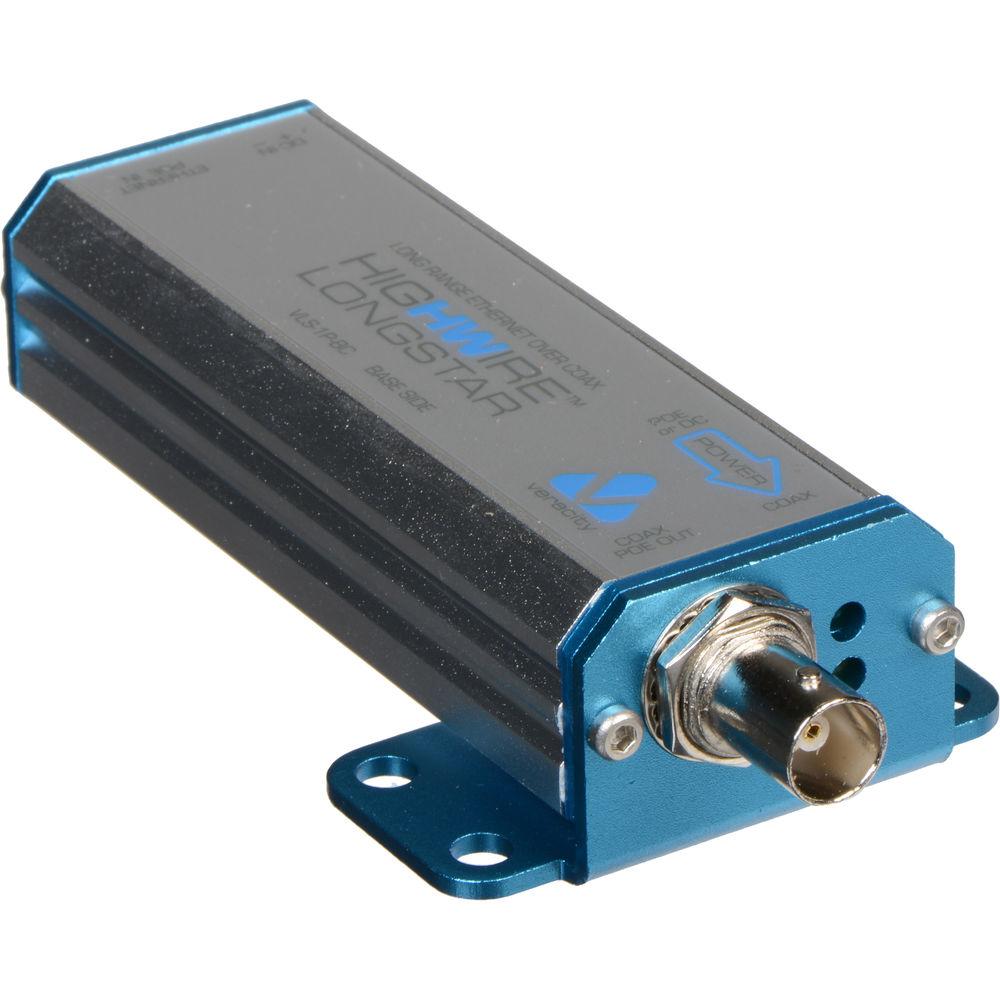

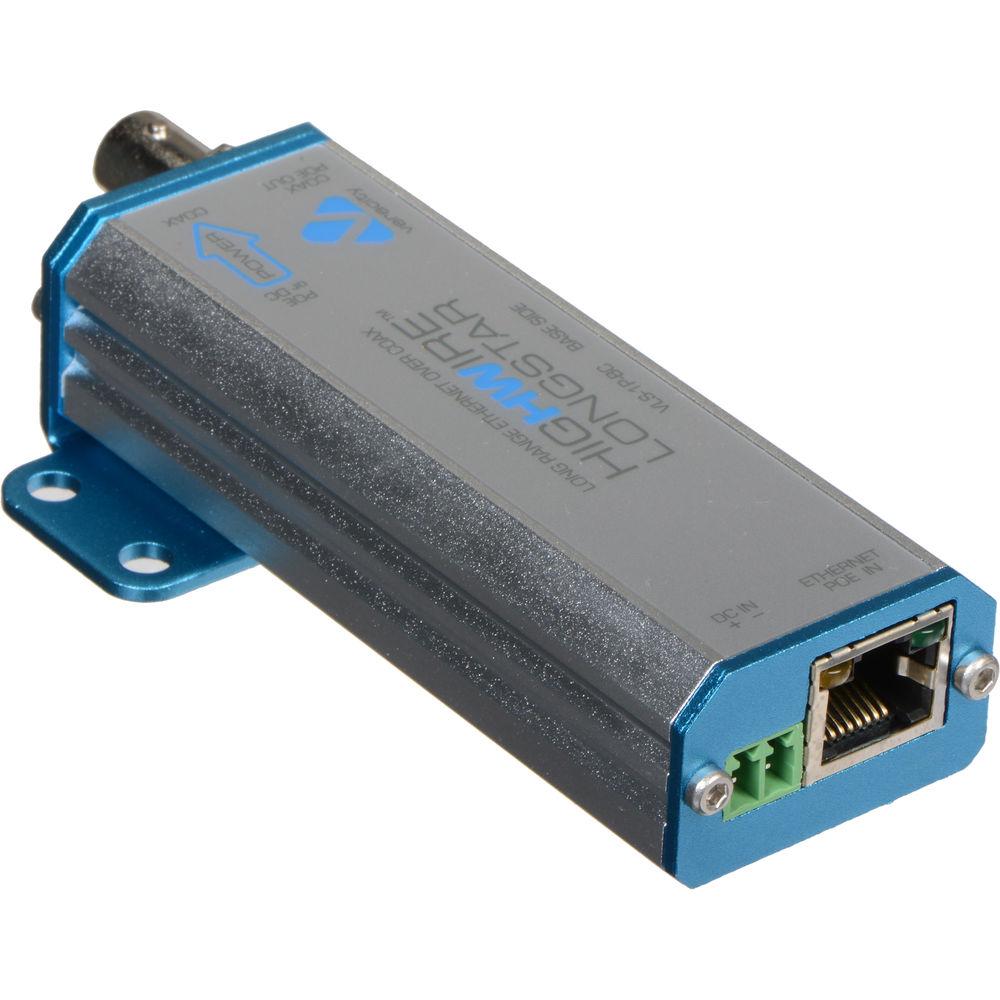

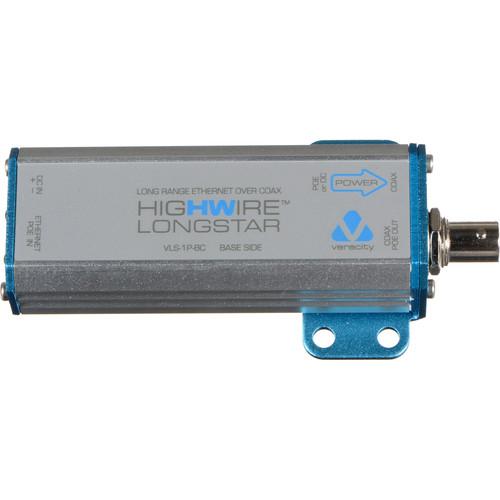

Product description The base side HIGHWIRE Longstar from Veracity provides power and high bandwidth over extended ranges up to 4593', enabling a dependable connection to IP cameras and other remote network devices. This adapter is designed to be used with coax cable and IP cameras, eliminating the need for new cable runs. The HIGHWIRE Longstar is designed to allow you to run IP cameras up to 4593' using 100Base-TX speeds and up to 13,780' using 10Base-TX speeds and RG11 cable. This adapter provides up to 25W of power via RJ45 Ethernet with PoE technology. - Ethernet over coax adapter for IP cameras and coax cabling
- PoE provides up to 25W of power up to 4265'
- Extends 100Base-TX Ethernet up to 4593' with RG11 cable
- For use with HIGHWIRE Longstar devices
UPC: 892314002555 In the Box Veracity HIGHWIRE Longstar Long Range Ethernet over Coax Adapter with PoE (Base Side) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity HIGHWIRE Longstar Long Range Ethernet over Coax Adapter with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VLS-1P-BC Specs | Connectors | RJ45 Ethernet with PoE, BNC coax with PoE, DC in | | Ethernet Interface | 10/100Base-TX | | Bandwidth | RG59:
100Base-TX: Up to 2263.8' (690 m)
10Base-TX: Up to 6791.3' (2070 m)
RG11:
100Base-TX: Up to 4593.2' (1400 m)
10Base-TX: Up to 13,779.5' (4200 m) | | LED Indicators | Coax:
Green: On: 100 Mbps, Flash: activity
Yellow: On: link, Flash: activity | | Power | Up to 25 W | | Dimensions (L x W x H) | 4.5 x 2.2 x 1" (11.4 x 5.5 x 2.5 cm) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.3 x 2.4 x 1.2" |
