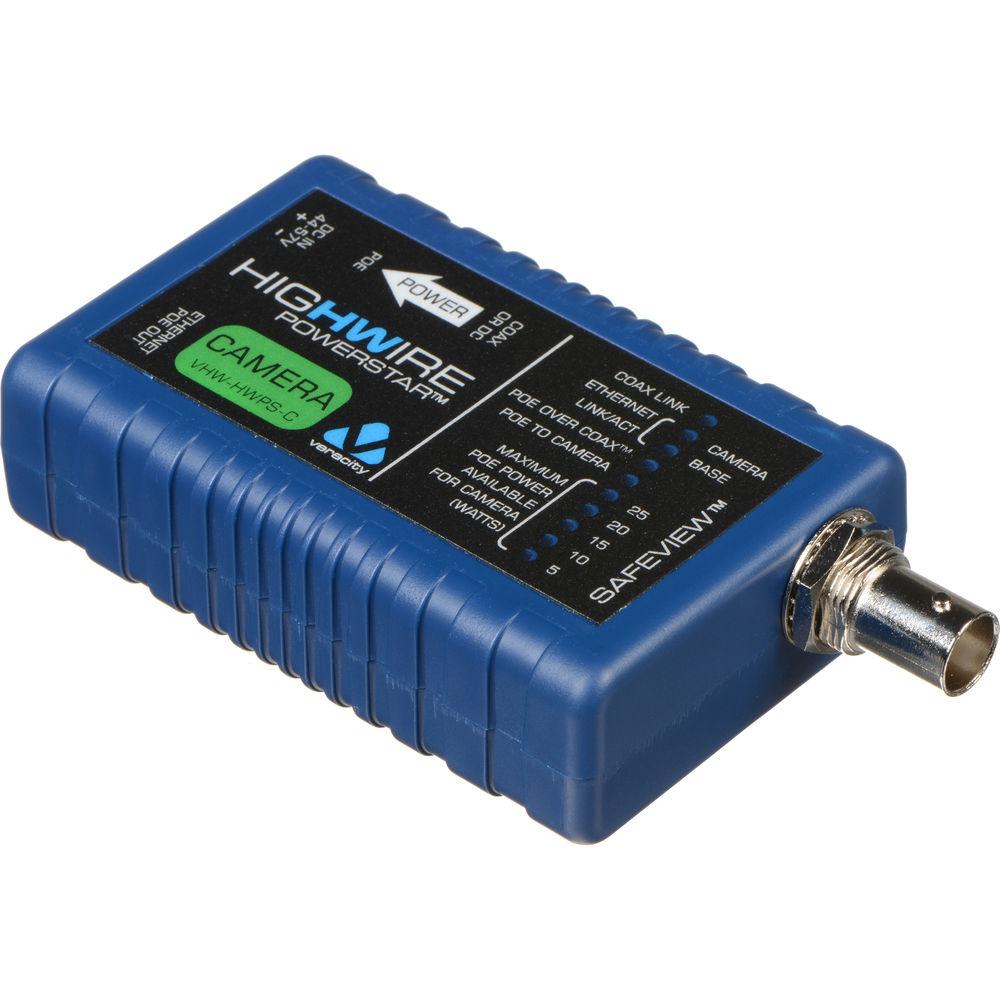

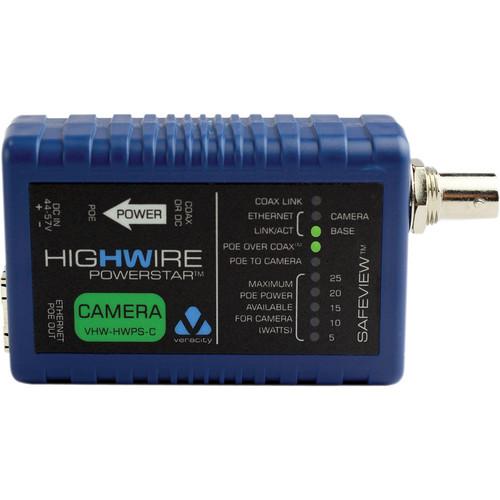

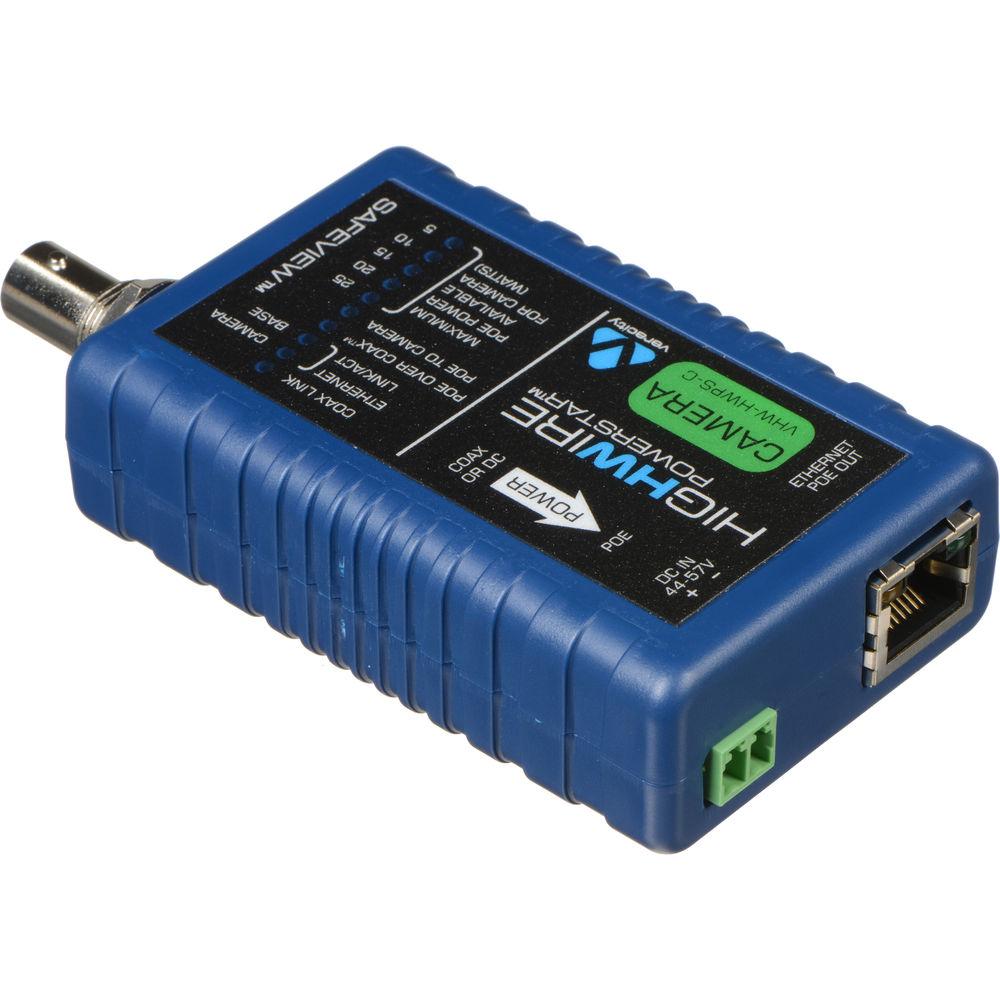

Product description The camera side HIGHWIRE Powerstar from Veracity works with the HIGHWIRE Powerstar base side (available separately) to deliver PoE to an IP camera over RG59 or RG11 cable. The camera unit receives PoE power from the base unit and transmits it to the camera. No external power cabling is required, and all detection and setup occurs automatically.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design and efficient power delivery enables long range extension even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59 or 1600' of RG11 coax. - PoE eliminates the need for additional cable runs
- Delivers up to 25W of PoE power
- SafeView quickly indicates connection and power status
- Works with the HIGHWIRE Powerstar base side (available separately)
UPC: 892314002227 In the Box Veracity HIGHWIRE Powerstar (Camera Side) Limited 5-Year Warranty User Manual PDF 598.5kbsdqdxyfsfxsybuetzstsazsfbc Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity HIGHWIRE Powerstar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity PowerStar Specs | | | Power | 1.5 W | | PoE | IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus) | | | | Connector Type | BNC 75 Ohms | | Cable Supported | 75 Ohms coaxial (other impedances supported) | | Transmission Range | Up to 1100' (300 m) on RG59 or 1600' (500 m) on RG11 at full rate | | Bandwidth | Up to 200 Mbps | | | | Connector Type | RJ45 Ethernet | | Cable Supported | Patch or crossover, auto-detected | | Transmission Rate | 100Base-T full-duplex with auto-negotiation | | | | Indicator LEDs | Status Indicators:
HIGHWIRE coax link
Ethernet link/activity
PoE over coax
PoE to camera
Power available (5/10/15/20/25 W)
Colors:
Off: Disabled
Green: Enabled
Red: Fault | | Operating Temperature | Delivering PoE < 15 W: 14 to 122°F (-10 to 50°C)
Delivering PoE Plus > 15 W: 14 to 104°F (-10 to 40°C) | | Relative Humidity (non-condensing) | 85% | | Dimensions | With Connector: 4.1 x 2.1 x 0.9" (10.4 x 5.4 x 2.4 cm)
Without: Connector: 3.3 x 2.1 x 0.9" (8.4 x 5.4 x 2.4 cm) | | Weight | 5 oz (140 g) | | | | Package Weight | 0.26 lb | | Box Dimensions (LxWxH) | 5.05 x 2.95 x 1.2" |
