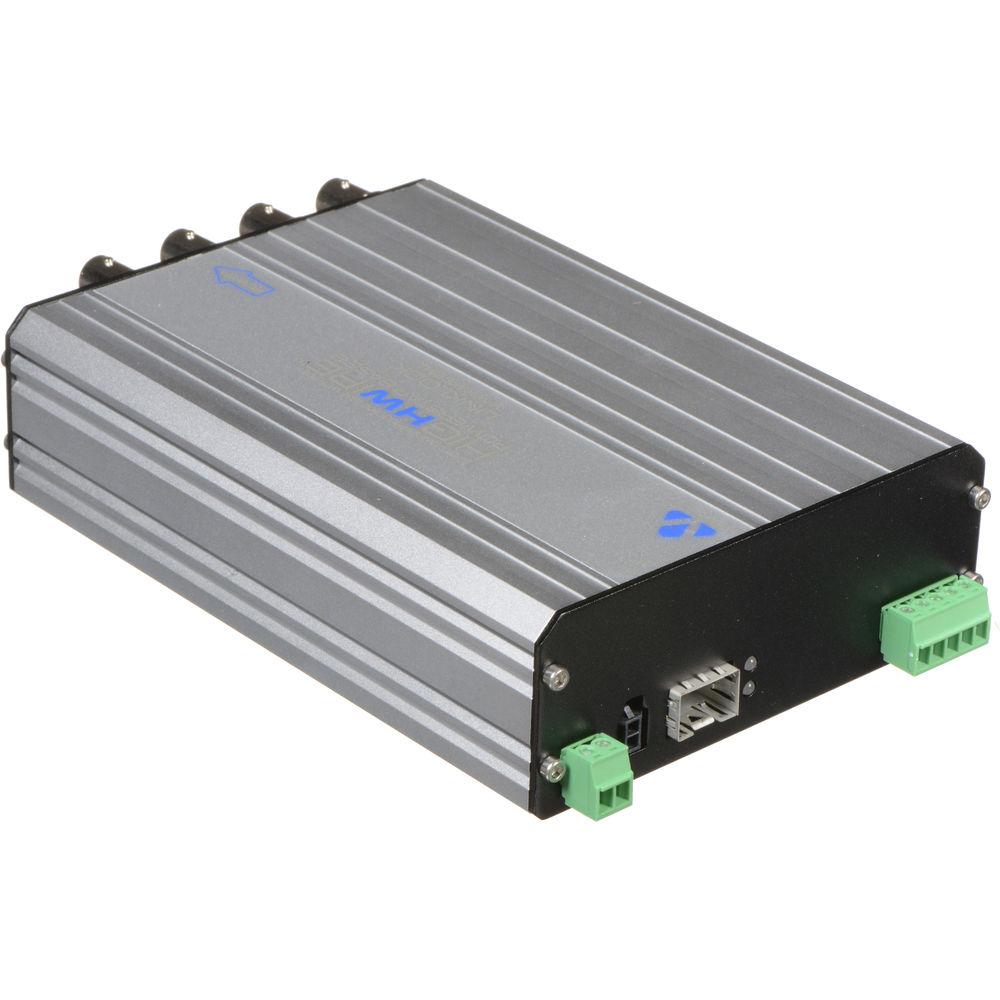

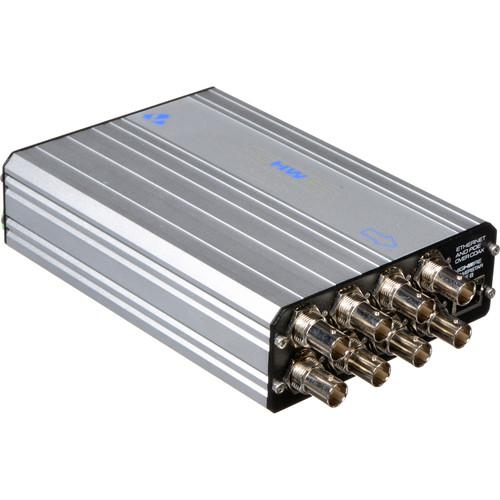

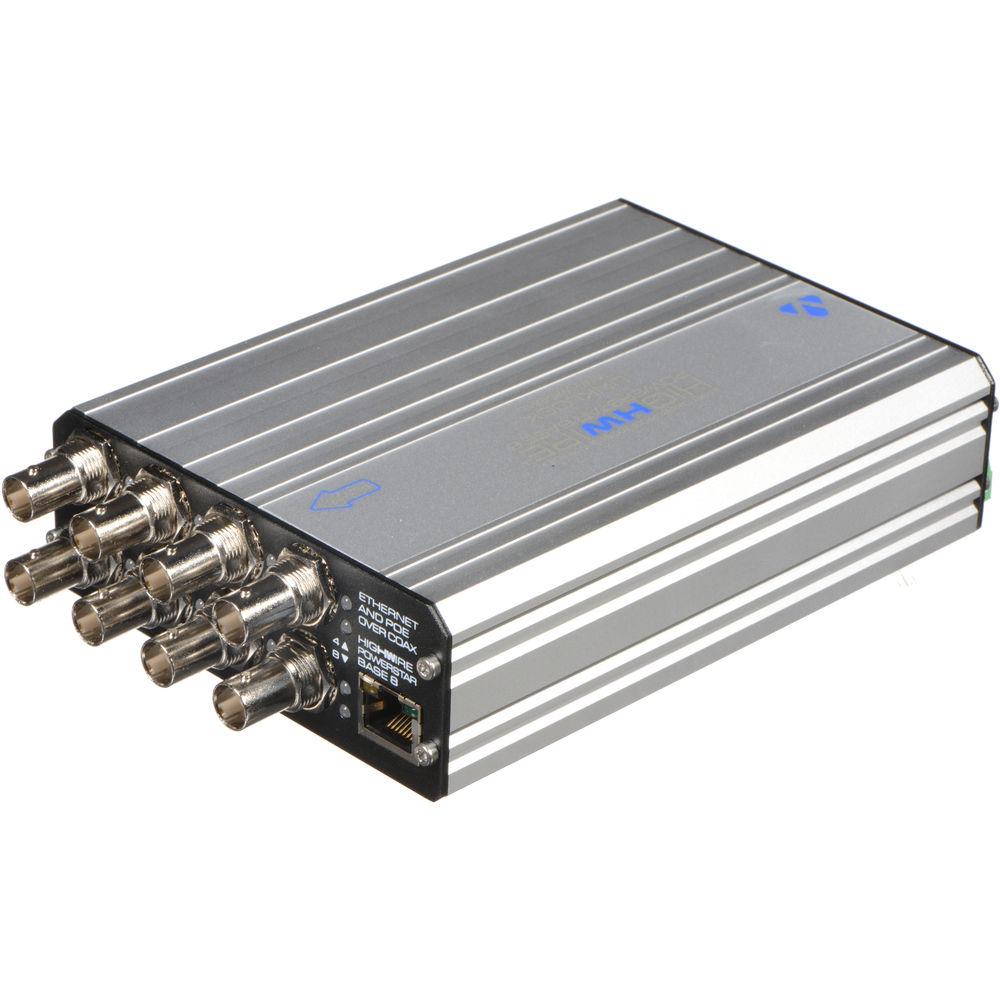

Product description The HIGHWIRE Powerstar Base-8 IP & PoE Over Coax Base Unit from Veracity works with the HIGHWIRE Powerstar camera side (available separately) to connect up to eight IP cameras via BNC connectors to deliver power and video to up to eight network cameras over coaxial cable. Up to 25W of power per port is delivered from the base unit to connected cameras. No external power cabling is required, and all configuration and setup occurs automatically. If PoE is unavailable, or for an extra power boost at either end of the cable, simply connect the supplied 57 VDC power supply.
This device delivers a full 200 Mb/s of bandwidth at a range up to 1000' on RG59, and 1640' on RG11 cables. This base unit is rack-mountable with mounting accessories available for purchase separately. - Works with the HIGHWIRE Powerstar camera side, which is available separately
- Provides eight coaxial cable connections
- Can be used as a stand-alone, or rack-mounted with mounting accessories available separately
- PoE technology eliminates the need for extra cables
- Delivers up to 25W of PoE per port
- 8 channels per base unit, up to 32 channels in 1U
UPC: 892314002708 In the Box Veracity HIGHWIRE Powerstar Base-8 IP & PoE Over Coax Base Unit 57 VDC Power Supply Unit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity HIGHWIRE Powerstar Base-8 IP & PoE Over Coax Base Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VHW-HWPS-B8-LL Specs | Compatibility | HIGHWIRE Powerstar camera side | | Power Input | PSU 57 VDC up to 6 A via a 2-pin detachable screw terminal (supplied) or a 2-pin micro-fit power connector | | Power Output | Max 25 W per port (PoE+) | | Ethernet Interface | RJ45 Ethernet gigabit port to allow connection to a main network switch | | Interface | BNC 75 Ohms
Range up to 1000' / 300 m on RG59, 1640.4' / 500 m on RG11
Bandwidth 200 Mb/s (total up & down) | | Compliance | RoHS, CE, FCC, REACH | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity (non-condensing) | 85% | | Dimensions | Including BNC Connectors: 6.8 x 4.3 x 1.6" / 173 x 110 x 40 mm | | Weight | 20.2 oz / 572 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.2 x 4.8 x 2.1" |
