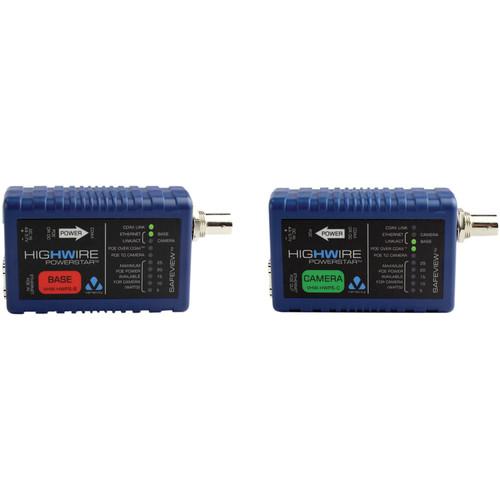

Product description The HIGHWIRE Powerstar Base and Camera Unit Kit from Veracity is a B&H Kit that comes with both a base and camera unit to deliver PoE and Ethernet connectivity over RG59 and RG11 coaxial cables. It eliminates the need for external power cabling and prevents accidental damage to legacy equipment with PoE over coax detection and management. - Veracity HIGHWIRE 1-Port Ethernet over Coax PowerStar Base Unit The base side HIGHWIRE 1-Port Ethernet over Coax Powerstar from Veracity works with the HIGHWIRE Powerstar camera side (available separately) to deliver PoE to an IP camera over RG59 or RG11 cable. The base unit receives PoE power from a standard PoE switch or injector and transmits it down coaxial cable. No external power cabling is required, and all detection and setup occurs automatically. If PoE is not available, or for an extra power boost at either end of the cable, just connect the optional power supply.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design and efficient power delivery enables long range extension, even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59 or 1600' of RG11 coax. - PoE over coax eliminates the need for additional cable runs
- Delivers up to 25W of PoE power
- SafeView indicates connection and power status
- Works with the HIGHWIRE Powerstar camera side (available separately)
UPC: 892314002210 - Veracity HIGHWIRE Powerstar (Camera Side) The camera side HIGHWIRE Powerstar from Veracity works with the HIGHWIRE Powerstar base side (available separately) to deliver PoE to an IP camera over RG59 or RG11 cable. The camera unit receives PoE power from the base unit and transmits it to the camera. No external power cabling is required, and all detection and setup occurs automatically.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design and efficient power delivery enables long range extension even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59 or 1600' of RG11 coax. - PoE eliminates the need for additional cable runs
- Delivers up to 25W of PoE power
- SafeView quickly indicates connection and power status
- Works with the HIGHWIRE Powerstar base side (available separately)
UPC: 892314002227 In the Box - HIGHWIRE 1-Port Ethernet over Coax PowerStar Base Unit ufvzdeaafrsfeaztebyyvcfauxaszbybrazaz
- Limited 5-Year Warranty
- HIGHWIRE Powerstar (Camera Side)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity HIGHWIRE Powerstar Base and Camera Unit Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Veracity HIGHWIRE 1-Port Ethernet over Coax PowerStar Base Unit
| | | Power | 1.5 W | | PoE | In: IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus), 2-event, power class 4 | | | | Connector Type | BNC 75 Ohms | | Cable Supported | 75 Ohms coaxial (other impedances supported) | | Transmission Range | Up to 1100' (300 m) on RG59 or 1600' (500 m) on RG11 at full rate | | Bandwidth | Up to 200 Mbps | | | | Connector Type | 1 x RJ45 Ethernet | | Cable Supported | Patch or crossover, auto-detected | | Transmission Rate | 100Base-T full-duplex with auto-negotiation | | | | Indicator LEDs | Status Indicators:
HIGHWIRE coax link
Ethernet link/activity
PoE over coax
PoE to camera
Power available (5/10/15/20/25 W)
Colors:
Off: Disabled
Green: Enabled
Red: Fault | | Operating Temperature | Delivering PoE < 15 W: 14 to 122°F (-10 to 50°C)
Delivering PoE Plus > 15 W: 14 to 104°F (-10 to 40°C) | | Relative Humidity (non-condensing) | 85% | | Dimensions | With Connector: 4.1 x 2.1 x 0.9" (10.4 x 5.4 x 2.4 cm)
Without: Connector: 3.3 x 2.1 x 0.9" (8.4 x 5.4 x 2.4 cm) | | Weight | 5 oz (140 g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.9 x 1.2" | - Veracity HIGHWIRE Powerstar (Camera Side)
| | | Power | 1.5 W | | PoE | IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus) | | | | Connector Type | BNC 75 Ohms | | Cable Supported | 75 Ohms coaxial (other impedances supported) | | Transmission Range | Up to 1100' (300 m) on RG59 or 1600' (500 m) on RG11 at full rate | | Bandwidth | Up to 200 Mbps | | | | Connector Type | RJ45 Ethernet | | Cable Supported | Patch or crossover, auto-detected | | Transmission Rate | 100Base-T full-duplex with auto-negotiation | | | | Indicator LEDs | Status Indicators:
HIGHWIRE coax link
Ethernet link/activity
PoE over coax
PoE to camera
Power available (5/10/15/20/25 W)
Colors:
Off: Disabled
Green: Enabled
Red: Fault | | Operating Temperature | Delivering PoE < 15 W: 14 to 122°F (-10 to 50°C)
Delivering PoE Plus > 15 W: 14 to 104°F (-10 to 40°C) | | Relative Humidity (non-condensing) | 85% | | Dimensions | With Connector: 4.1 x 2.1 x 0.9" (10.4 x 5.4 x 2.4 cm)
Without: Connector: 3.3 x 2.1 x 0.9" (8.4 x 5.4 x 2.4 cm) | | Weight | 5 oz (140 g) | | | | Box Dimensions (LxWxH) | 5.05 x 2.95 x 1.2" |
