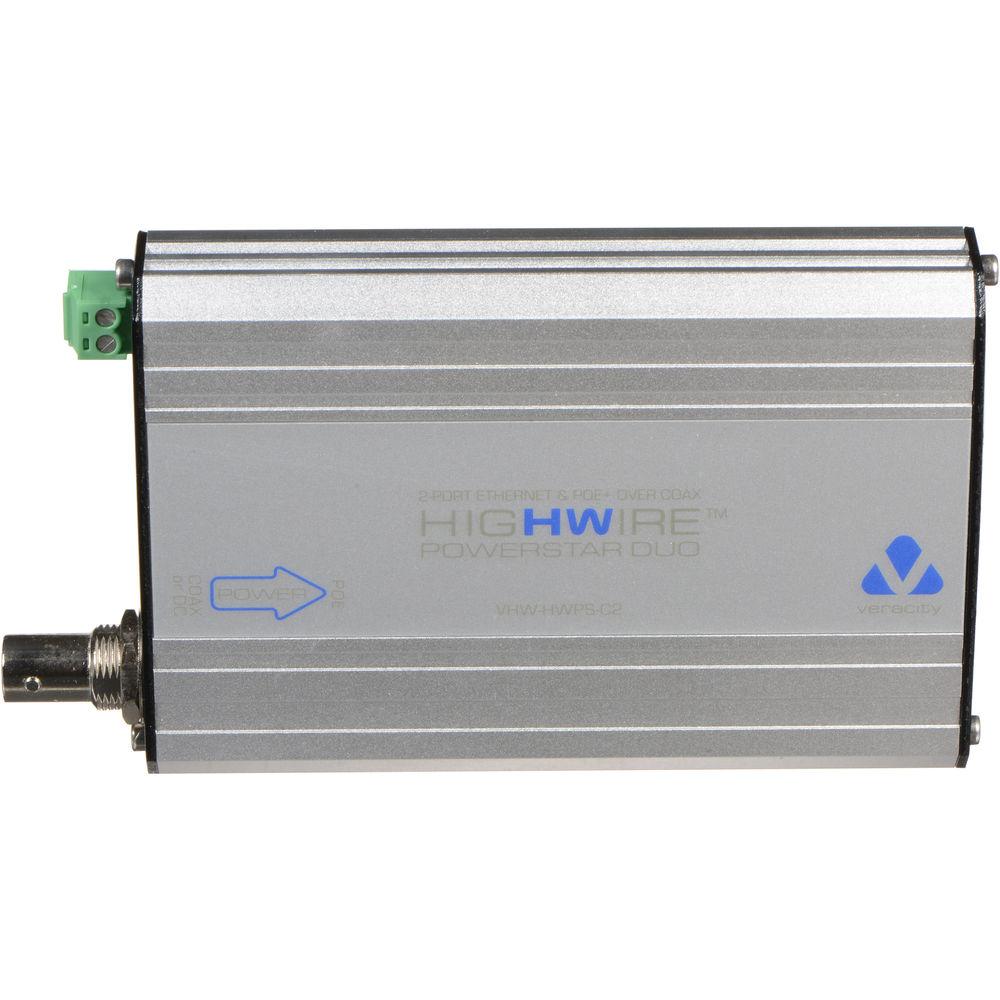

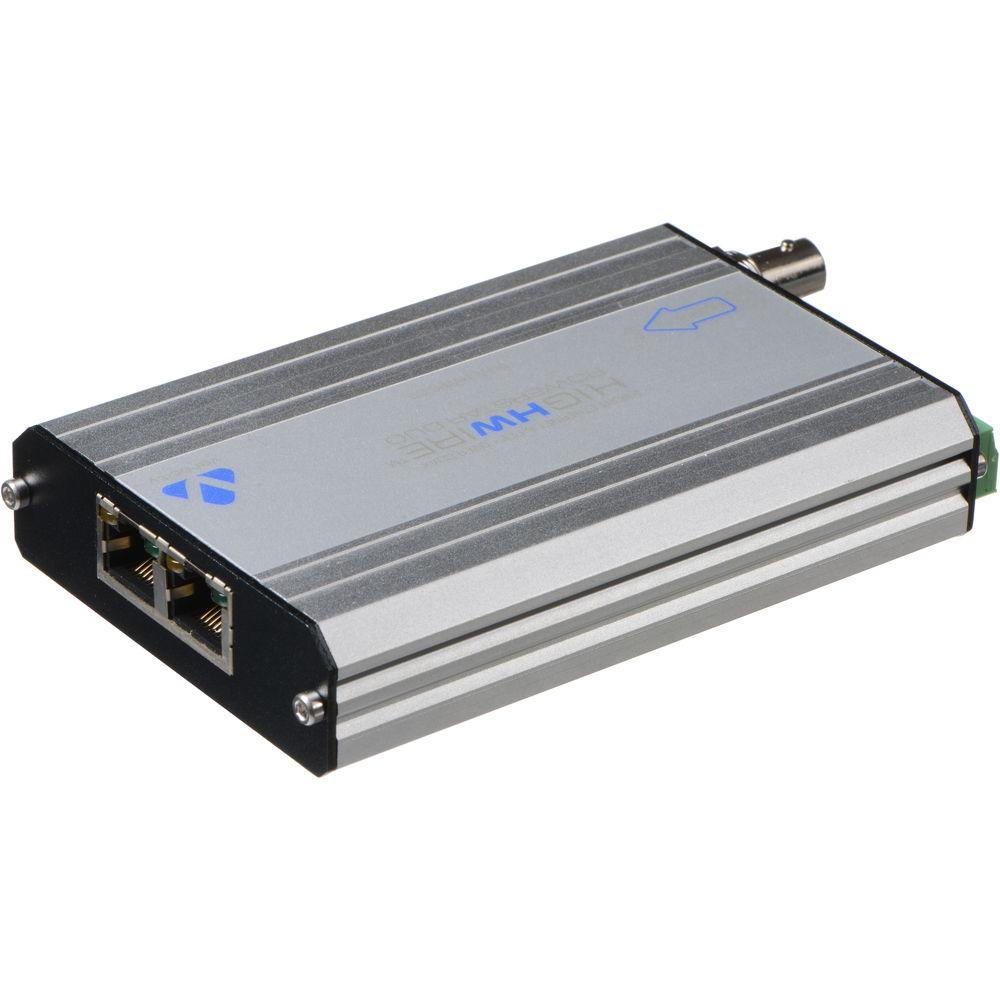

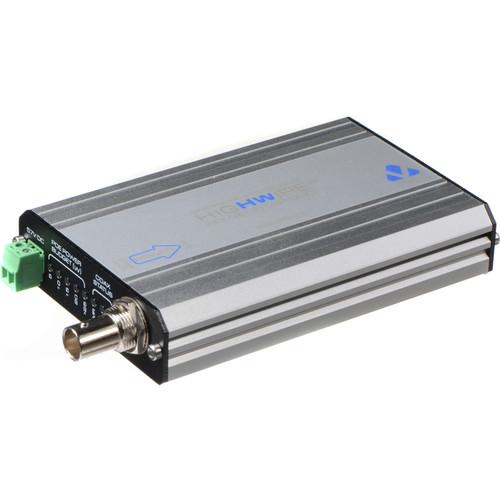

Product description The HIGHWIRE Powerstar DUO from Veracity works with the HIGHWIRE Powerstar base side (available separately) to deliver PoE to up to two network cameras over RG59, RG6, or RG11 cable. The camera unit receives PoE power from the base unit and transmits it to the connected cameras. No external power cabling is required, and all detection and setup occurs automatically.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design enables long range extension even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59, 1148' of RG6, or 1600' of RG11 coax cable. - Delivers power to up to two network cameras
- PoE eliminates the need for additional cable runs
- Delivers up to 25W of PoE per port, between 10-78W total power
- SafeView quickly indicates connection and power status
- Works with the HIGHWIRE Powerstar base side (available separately)
UPC: 892314002647 In the Box Veracity HIGHWIRE Powerstar DUO Limited 5-Year Warranty Data Sheet PDF 217.4kbwdadcecwttzevvavxcbrfvbwztac Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity HIGHWIRE Powerstar DUO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VHW-HWPS-C2 Specs | | | Input Connector | Detachable screw terminal | | Power Input | PoE, 57 VDC | | Power Consumption | 3-8 W depending on PoE load | | PoE | IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus) | | Power Output | 10-78 W depending on power source managed across 4 ports, maximum 25 W per port (PoE Plus) | | | | Connector Type | BNC 75 Ohms | | Cable Supported | 75 Ohms coaxial cables (RG59, RG6, RG11, or similar) | | Transmission Range | Up to 1100' (300 m) on RG59, 1148' (350 m) on RG6, or 1600' (500 m) on RG11 at full rate | | Bandwidth | Up to 200 Mbps (total up and down) | | | | Connector Type | 2 x RJ45 Ethernet ports | | Cable Supported | Straight through or cross-over Cat5, Cat5e, or Cat6 patch cables | | Transmission Rate | 10Base-T/100Base-TX full-duplex auto configuring | | | | Mounting | 0.16" (4 mm) mounting holes on 3.4" (86.1 mm) centers | | Indicator LEDs | RJ45 Yellow: Network link and activity
RJ45 Green: PoE status (on/off)
Coax Status: Coax link, base network link, coax power (PoE)
PoE Power: Power budget (in steps of 5 W) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Relative Humidity (non-condensing) | 85% | | Dimensions | With BNC Connector: 5.2 x 2.95 x 0.87" (132 x 75 x 22 mm)
With Wall-Mount Lugs: 5.2 x 3.7 x 0.87" (132 x 94.6 x 22 cm) | | Weight | Unit: 6.3 oz (179 g)
With Wall-Mount Lugs: 6.4 oz (184 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.2 x 3.7 x 1.3" |
