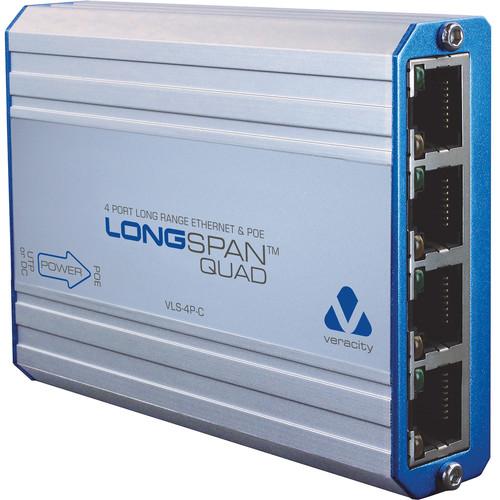

User Manual for Veracity LONGSPAN Camera Quad Ethernet Range Extender with PoE Click to enlarge the picture
Contents of the user manual for the Veracity LONGSPAN Camera Quad Ethernet Range
- Product category: Ethernet Extenders Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Ethernet Extenders
|
User manual for the Veracity LONGSPAN Camera Quad Ethernet Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description The camera side LONGSPAN Camera Quad Ethernet Range Extender with PoE from Veracity enables the extension of Ethernet networks by up to 2690', allowing connections to IP cameras and other network devices. This extender can connect up to 4 IP cameras. It's compatible with Cat 6 for a transmission range up to 2690', and Cat 5e for a transmission range up to 2264'. Additionally, it will work with single-pair UTP cables for a transmission range up to 1000'. This extender is equipped with 10/100M Ethernet connectors. - PoE and 57 VDC power (DC power supply available separately)
- Total camera power budget using a PoE switch is typically 8W for 802.3af, and 18W for 802.3at
- Up to 78W of total camera power with separate power supply
- Auto speed, duplex, crossover, POE/POE+ RJ45 connectors
- Compatible with UTP cables
UPC: 892314002524 Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity LONGSPAN Camera Quad Ethernet Range Extender with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VLS-4P-C Specs | Connectors | RJ45 Ethernet | | Power | IEEE 802.3af or IEEE 802.3at
57 VDC power supply, available separately | | PoE Power Budget | 5, 10, 15, 20, 25, 30, 40, >50 W | | Bandwidth | Cat 6: Up to 2690' / 820 m
Cat 5e: Up to 2264' / 690 m
Single-Pair UTP: 1000' / 300 m | | LED Indicators | RJ45 Yellow:
On: Link
Blink: Activity
RJ45 Green:
On: PoE detected & enabled, 100 Mb/s
Flash: 10 Mb/s
Off: No PoE detected & enabled, No Link
PoE Power Budget:
Green:
On: Available
5 W Blinking: <5W
Orange: Approaching power limit
Red: Power Limit Exceeded | | Dimensions | 4 x 3.4 x 0.87" / 103.2 x 86.1 x 22 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.7 x 3.9 x 1.3" |
