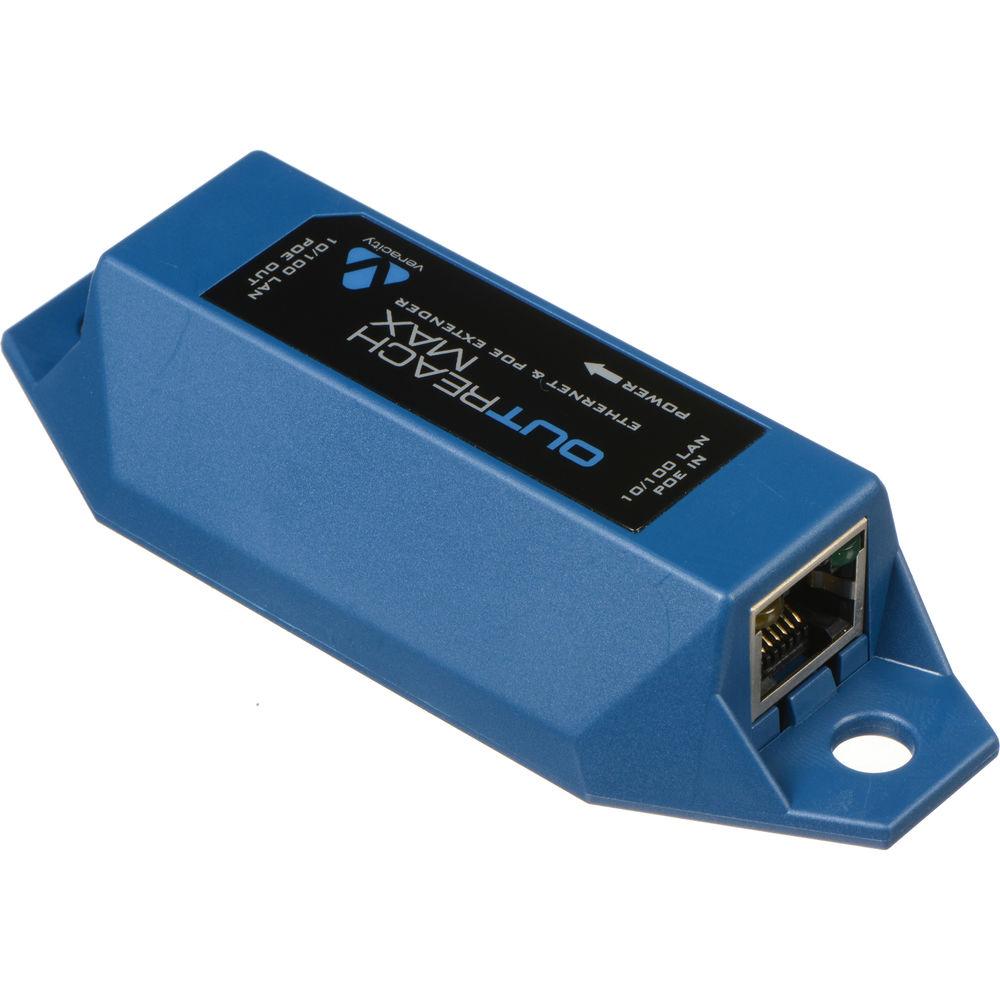

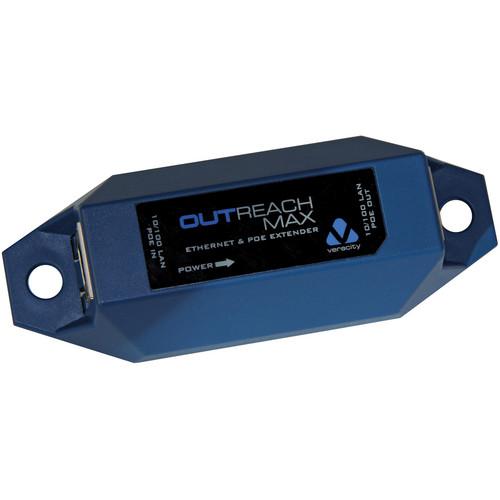

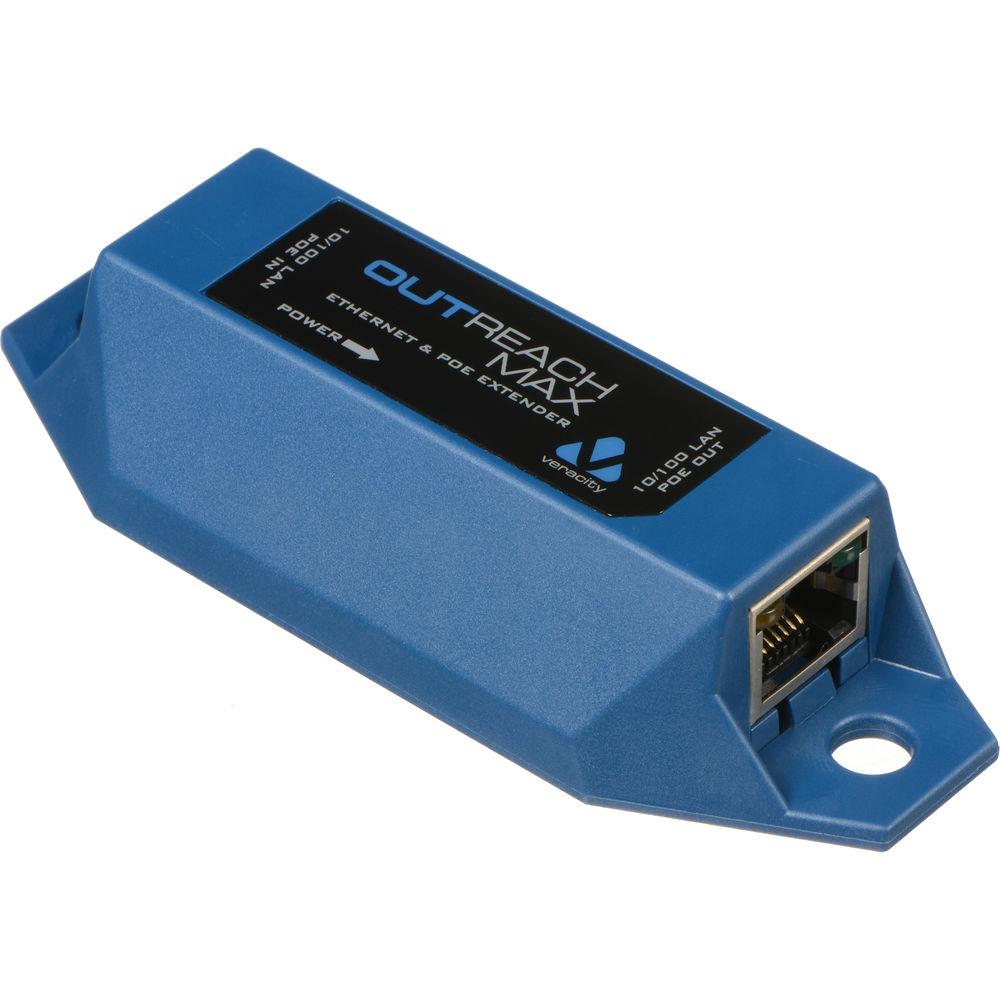

User Manual for Veracity OUTREACH Max Ethernet and PoE Extender Click to enlarge the picture
Contents of the user manual for the Veracity OUTREACH Max Ethernet and PoE
- Product category: Ethernet Extenders Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Ethernet Extenders
 |
User manual for the Veracity OUTREACH Max Ethernet and PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description The OUTREACH Lite Ethernet Extender from Veracity extends the Ethernet network connection and PoE power to non-network units beyond the 328' limit. The Ethernet extender comes with a network port that can be configured automatically for network speed, duplex, and crossover. Capable of restoring the network connection every 328', it maintains 200Mbps bandwidth of regular full-duplex 100Base-T Ethernet. This extender provides PoE to all connected devices up to 70W. - Instantly extends the Ethernet network connection and PoE power to non-network units beyond the 328' limit
- Network port that can be configured automatically for network speed, duplex, and crossover
- Maintains 200Mbps bandwidth of regular full-duplex 100Base-T Ethernet
- Full unrestricted network bandwidth
UPC: 892314002296 In the Box Veracity OUTREACH Max Ethernet and PoE Extender Limited 5-Year Warranty User Manual PDF 319.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity OUTREACH Max Ethernet and PoE Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity Max Specs | Power Consumption | 1.3 W via PoE | | PoE Standard | IEEE 802.3af PoE, IEEE 802.3at PoE Plus (two-event signature)
Custom PoE with always-on 48 V and 4-pair | | PoE Power | Up to 70 watts depending on standard
Maximum current 0.7 A on data pairs
Maximum current 1.5 A on spare pairs | | Range | Up to 656' (200 m) | | Network | 10Base-T, 100Base-TX, full/half duplex (auto-negotiated)
Patch or crossover cables | | LED Indicators | Power, network link/activity | | Mounting | 2 x 0.28" (7 mm) holes, 3.5" (89mm) apart | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Humidity (Non-Condensing) | Up to 85% | | Dimensions (LxWxH) | 4.1 x 1.6 x 0.9" (105 x 40 x 22 mm) | | Weight | 1.6 oz (45 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.7 x 2.2 x 1.1" |
