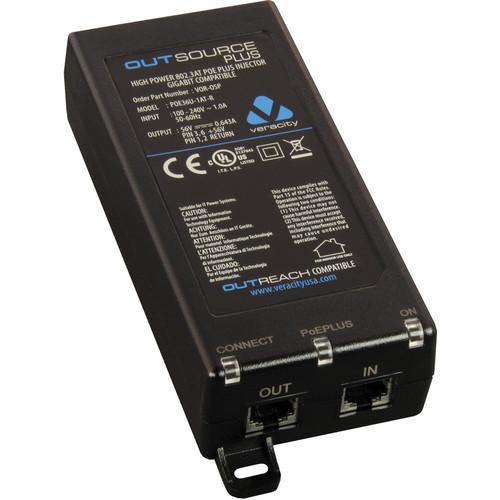

User Manual for Veracity Outsource Plus Midspan PoE Plus Injector Click to enlarge the picture
Contents of the user manual for the Veracity Outsource Plus Midspan PoE Plus
- Product category: Power over Ethernet (PoE) Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Power over Ethernet (PoE)
|
User manual for the Veracity Outsource Plus Midspan PoE Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description The Outsource Plus Midspan PoE Plus Injector from Veracity enables you to deliver remote power to high-power devices by injecting IEEE 802.3at PoE Plus onto Cat 5 or comparable network cabling. It can be used with devices such as PTZ IP cameras, VoIP videoconferencing telephones, and 802.11n wireless access points. Furthermore, this unit provides overvoltage protection (OVP) and overcurrent protection (OCP) for safe and reliable use. The Outsource Plus Midspan PoE Injector automatically injects power when you route a single network connection. Offering comprehensive compatibility, it supports both IEEE 802.3at (PoE Plus) and 802.1af (regular PoE) as well as Gigabit Ethernet, 100BASE-T, and 10BASE-T connections. Additionally, it can deliver enhanced PoE Plus to the company's OUTREACH Max for maximum range extension or to the company's OUTREACH QUAD for distributing PoE between multiple devices. - Expands reach of high-power devices over long distances
- Suitable for use with PTZ IP cameras, VoIP videoconferencing telephones, and 802.11n wireless access points
- Injects IEEE 802.3at PoE Plus onto Cat 5 or comparable network cabling
- Provides overload protection and overcurrent protection for safe use
- Automatically injects power when you route a single network connection
- Supports IEEE 802.3at (PoE Plus), 802.1af (regular PoE), Gigabit Ethernet, 100BASE-T, and 10BASE connections
UPC: 892314002418 In the Box Veracity Outsource Plus Midspan PoE Plus Injector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity Outsource Plus Midspan PoE Plus Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VOR-OSP Specs | Network | Compatibility: 10/100/1000BASE-T | | PoE Compatibility | IEEE 802.3af (PoE)
IEEE 802.3at (PoE Plus)
Enhanced PoE for OUTREACH and OUTREACH PLUS | | Connectors | RJ45 - Network
RJ45 - Network / PoE out
IEC 3 pin - AC line power | | Power Input | Input Voltage: 90 to 264 VAC, 47 to 63 Hz
Maximum Current: 1.0 A at 90 VAC, 0.55 A at 240 VAC | | Power Output | Nominal PoE Voltage: 56 VDC
Maximum PoE Current: 0.6 A
Line and Load Regulation: ±4%
All 802.3af/at power classes (device power to 25.5 W / equivalent PSE power 30 W)
Extended power with OUTREACH Plus (1 x OUTREACH and 25.5 W at 656.2' / 200.0 m)
Enhanced power for OUTREACH Quad (4 x Class 2 devices at 656.2' / 200.0 m) | | Environmental | Operating Temperature: -4 to 122°F / -20 to 50°C
Storage Temperature: -13 to 149°F / -25 to 65°C
Operating Humidity: 5 to 90% | | Approvals | EMC: FCC Part 15 Class B, EN55022 Class B
Safety: cUL / UL | | Dimensions | Excluding Tabs: 6 x 2.6 x 1.4" (140 x 65 x 36mm) | | Weight | 0.4 lbs (0.2kg) | | | | Package Weight | 1.02 lb | | Box Dimensions (LxWxH) | 8.6 x 5.4 x 3.2" |
