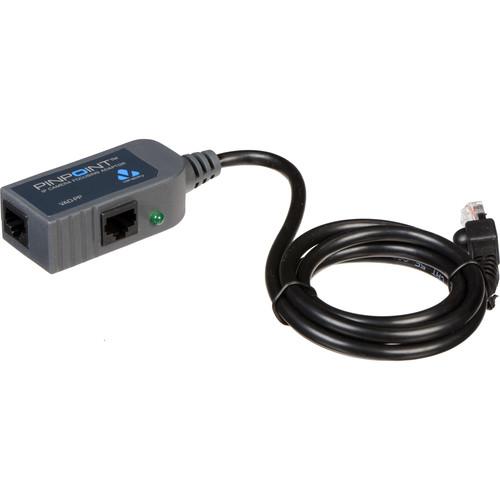

User Manual for Veracity Pinpoint IP Camera Setup Adaptor Click to enlarge the picture
Contents of the user manual for the Veracity Pinpoint IP Camera Setup Adaptor
- Product category: Test Monitors Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Test Monitors
|
User manual for the Veracity Pinpoint IP Camera Setup Adaptor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description The Veracity Pinpoint IP Camera Setup Adaptor is an IP video installation tool for viewing and configuration of IP PoE cameras using a laptop or other portable device, without removing the camera from the network and losing PoE power. Compared to the trial-and-error process where an installer works with a partner in the control room communicating via phone or radio, the adaptor can be installed by a single installer in less time enabling precise camera configuration for the best image possible. Universally compatible, the Pinpoint IP Camera Setup Adaptor supports IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet. The compact adaptor (65 x 32 x 20 mm) also features an LED that indicates PoE. - IP video installation tool for viewing and configuration of an IP PoE camera using a laptop or other portable device
- Installation without removing camera from the network and losing PoE power
- Time-saving method for accurately focusing IP PoE cameras with a standard Cat5E patch cable
- IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet
- Compact adaptor (65 x 32 x 20 mm)
UPC: 892314002166 In the Box Veracity Pinpoint IP Camera Setup Adaptor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity Pinpoint IP Camera Setup Adaptor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VAD-PP Specs | Network Connections | POE in (RJ45 socket)
POE out + Ethernet (RJ45 plug on flying lead)
Ethernet (RJ45 socket - crossover incorporated) | | Ethernet | 100BaseT | | Power Requirements | Power over Ethernet Standard POE - IEEE 802.3af
POE Plus - IEEE 802.3at and most non-standard POE up to 30 watts | | LED Indicators | Indicates POE present | | Enclosure | Solid molded unit | | Operating Temperature | 14 - 158°F (-10 ~ +70°C) | | Dimensions | 2.6 x 1.3 x 0.8" (65 x 32 x 20mm)
With Lead: 6.3 x 1.3 x 0.8" (160 x 32 x 20mm) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.9 x 4.0 x 1.1" |
