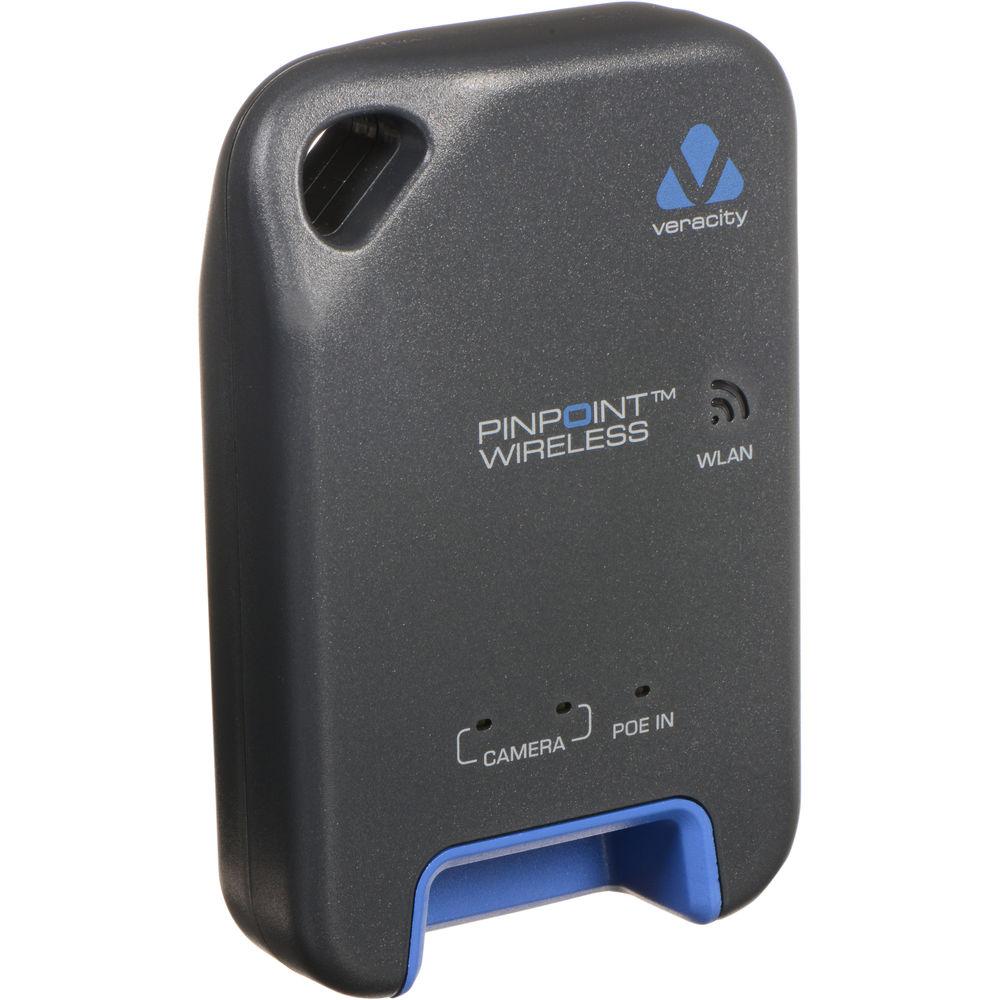

Product description Connect a PoE-powered network camera to PINPOINT Wireless Installation Tool & Wireless Link from Veracity to view live video from a camera on a computer, tablet, or smartphone. Simply download the free CAMPOINT mobile app for iOS and Android to customize camera settings and more, depending on the connected camera. The PINPOINT Wireless is PoE-powered and draws power directly from the existing PoE connection without interrupting power to the camera. This installation tool has a built-in WAP to connect to the camera directly. - Wirelessly connect to a camera using the free CAMPOINT mobile app for iOS and Android
- Connect to the PINPOINT Wireless unit using a web browser
- PoE-powered for quick connection and disconnection
- PoE pass-through from the PINPOINT Wireless unit to camera
- Adjustments of lens focus and viewing angle (compatible camera required and available separately)
- Automatic camera discovery

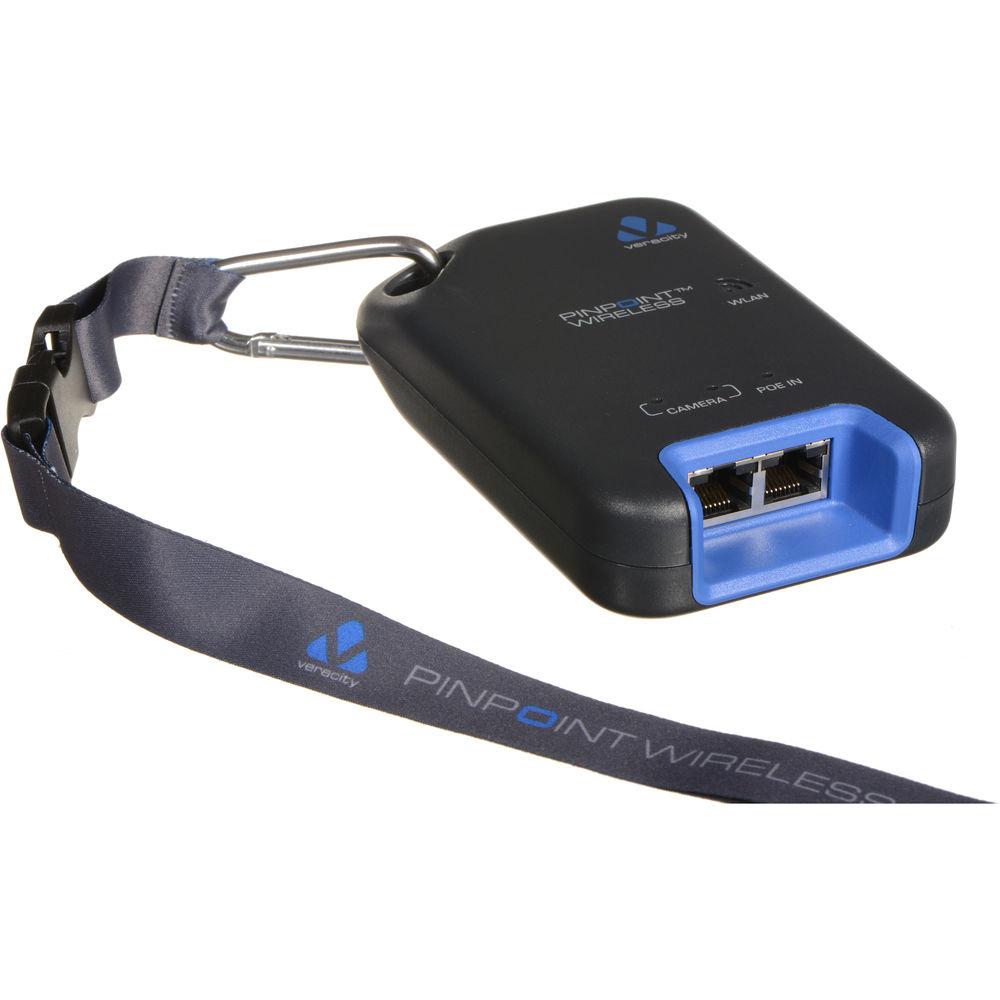

UPC: 892314002814 In the Box Veracity PINPOINT Wireless Installation Tool & Wireless Link Clip-On Carry Strap Protective Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity PINPOINT Wireless Installation Tool & Wireless Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity PINPOINT Specs | | | Type | PoE pass-through | | Consumption | <2 W in normal use | | | | Wired Connectivity | PoE In Port: 10Base-T/100Base-TX
PoE Out Port: 10Base-T/100Base-TX | | Settings | IP: Automatic or manual configuration of IP address (IPv4) | | Wireless Interface | IEEE 802.11b/g/n/ac
2.4 GHz b/g/n (Default): Channels 1, 6, or 11
5 GHz a/ac/n: Channels 36, 40, or 44 | | SSID | Wireless: User-configurable | | Wireless Security | WPA2-PSK with user-configurable password | | | | PoE | Red LED (on), flash (error), off (no PoE) | | Network | Green (link speed), orange (network activity) | | Wireless | Blue LED (on), flash (booting up) | | Network Connectors | 2 x RJ45 Ethernet ports with PoE (1 x PoE in, 1 x PoE out) | | | | Camera | Discovery: Automatic camera discovery using Bonjour or WS-Discovery (ONVIF) | | Supported IP Cameras | All IP cameras supporting live-viewing via browser on smart device or with RTSP URL address and CAMPOINT app | | Mobile OS Support | iOS and Android | | Web Browser | Supported | | | | Compliance | EN 55032 Class A, FCC Part 15 Subpart B Class A, IEC/EN/UL 60950-1, CE, RoHS, REACH, WEEE | | Material | High-impact ABS plastic | | Lanyard | Built-in slot for lanyard (included) | | Operating Temperature | 14 to 158°F (-10 to 70°C) | | Relative Humidity | Up to 85%, non-condensing | | Dimensions | 5 x 3.2 x 1.1" (128 x 82 x 28 mm) | | Weight | 4.5 oz (128 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.3 x 4.8 x 1.8" |
