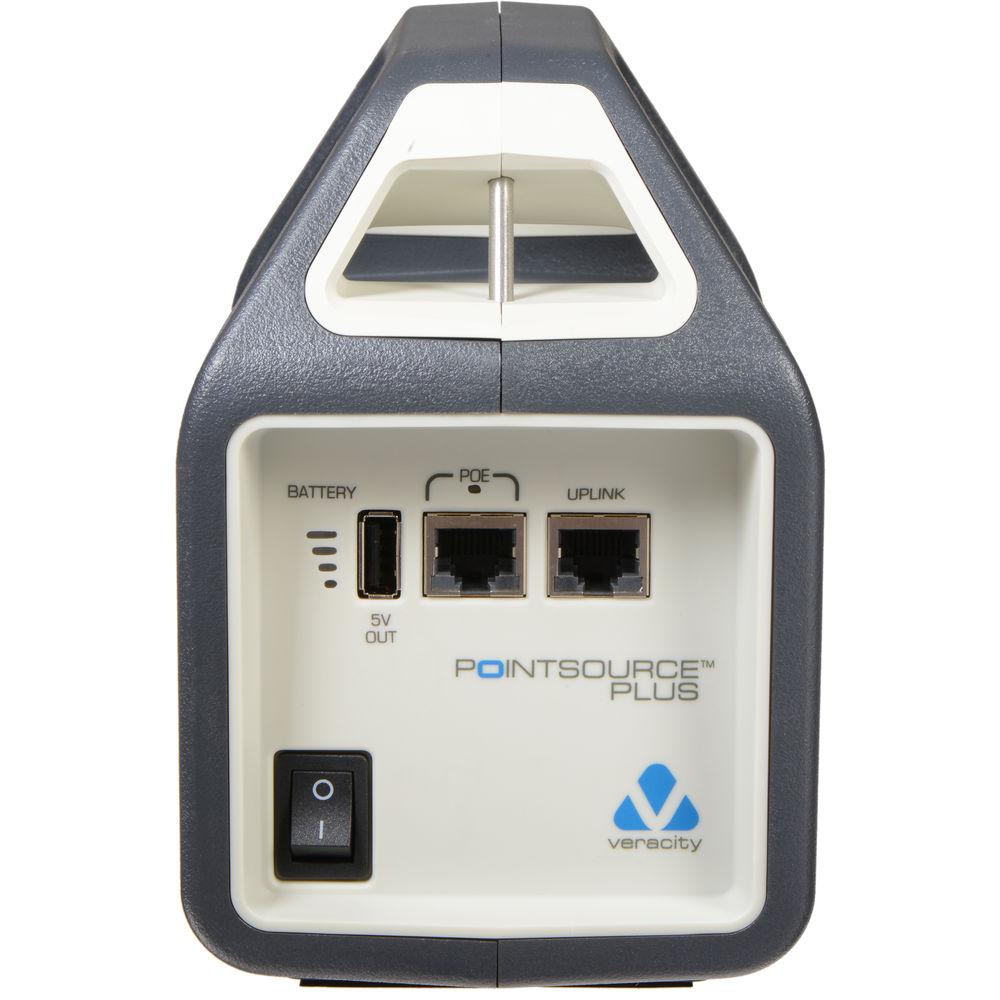

Product description Set up and configure your IP camera using the POINTSOURCE Plus Battery Powered PoE Injector from Veracity. Connect the device to your network camera using an RJ45 PoE connector and locally view the camera's field of view from your laptop. Once connected, the PoE injector will also allow you to capture snapshots or video clips of scenes while on site. With this information, you can then adjust your camera's alignment, focus, and field of view, all from the PoE injector.
This PoE injector is powered by a removable, rechargeable battery which can supply the device with enough power for a full day of work. Furthermore, you can rapidly swap the battery with additional spare batteries (available separately) for continued power, and the original battery can be charged while a second battery is powering the PoE injector for constant use. The injector also features a USB port for powering other devices, such as a tablet or smartphone, while on the job. Additionally, the device uses LED indicators to let you know the status of your PoE, battery, and network connections.
You can also pair the PoE injector with an IP camera that has integrated storage for a temporary surveillance recording system. - Assists with IP camera setup using snapshots or video clips of on-site scenes
- Allows local viewing of an IP camera from your laptop
- Enables rapid, precise adjustment of camera alignment, focus, and field of view
- Includes USB power port for charging phones and tablets
- PoE port LED indicates when PoE is being delivered
- Includes removable, rechargeable battery with a 3- to-5 year lifespan
- Battery status indicator with 100%, 75%, 50%, and 25% charging steps
- Charge one battery while the POINTSOURCE Plus runs on a second battery (available separately)
- Supports all classes of 802.3af and 802.3at PoE devices
- Installs and packs up in seconds and reduces on-site time
- Rapidly swap spare batteries (available separately) for additional power

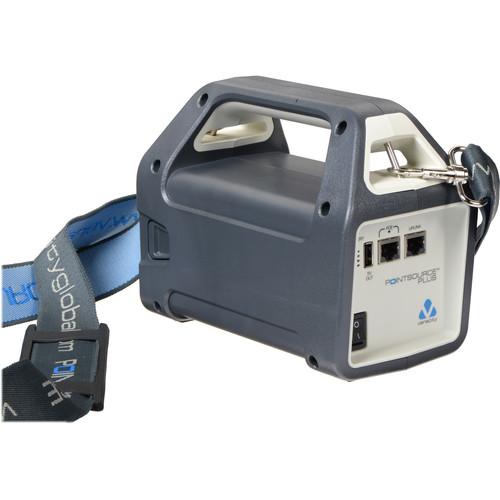

- Compact design with a shoulder strap for hands-free field use
- Pair the POINTSOURCE Plus with an IP camera that has storage for a temporary surveillance recording system
UPC: 892314002494 In the Box Veracity POINTSOURCE Plus Battery Powered PoE Injector Battery Module Universal Charger Carry Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity POINTSOURCE Plus Battery Powered PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VAD-PSP Specs | | | PoE | 48 VDC, IEEE 802.3af and 802.3at compliant (PoE and PoE+) | | USB | 5 VDC, 2.1 A, power only (no data) | | Battery | 12 V, 3.4 Ah
Maintenance-free, sealed lead-acid battery
3- to 5-year battery life
200 to 1000 cycles (depending on discharge depth and charging temperature) | | Battery Modules | Removable, rechargeable battery module | | Discharge Time | 6 hours continuous for a 5 W camera (typical) | | Charger | Three-stage intelligent (14.4 V / 1 A / 13.8 V float) | | | | Camera Connection | 10/100BaseTX with PoE | | Network Connection | 10/100BaseTX with data only (laptop connection) | | | | PoE | Red LED shows ON, flash indicates error, off indicates no PoE | | Battery | Green 4-bar display indicates charge level: 100%, 75%, 50%, 25% | | Network | Green: Link speed
Orange: Network activity | | | | Network | 2 x RJ45, one with PoE | | USB | 1 x USB Type A (power only) | | Charging | 0.1" / 2.1 mm jack, center positive
On Battery Module: Remove unit to charge | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Charging Temperature | Module: 32 to 95°F / 0 to 35°C | | Relative Humidity | 20 to 85%, non-condensing | | Compliance | Main Unit: EN 55022 Class B, FCC Part 15 Subpart B Class A + B, ICES-003 Class B, VCCI Class B, C-tick S/NZS CISPR 22 Class B, IEC/EN/UL 60950-1, CE, RoHS, REACH, WEEE
Battery Module: UL, IMDG, IATA (non-restricted, OK to transport by air), CE, RoHS, WEEE Compliant, ADR, ECHA, DoT | | Dimensions | 8.1 x 3.9 x 5.9" / 150 x 100.0 x 205 mm | | Weight | Unit with Battery Module: 4.8 lb / 2.2 kg
Battery Module: 3.5 lb / 1.6 kg | | | | Package Weight | 6.625 lb | | Box Dimensions (LxWxH) | 11.4 x 10.8 x 7.3" |
