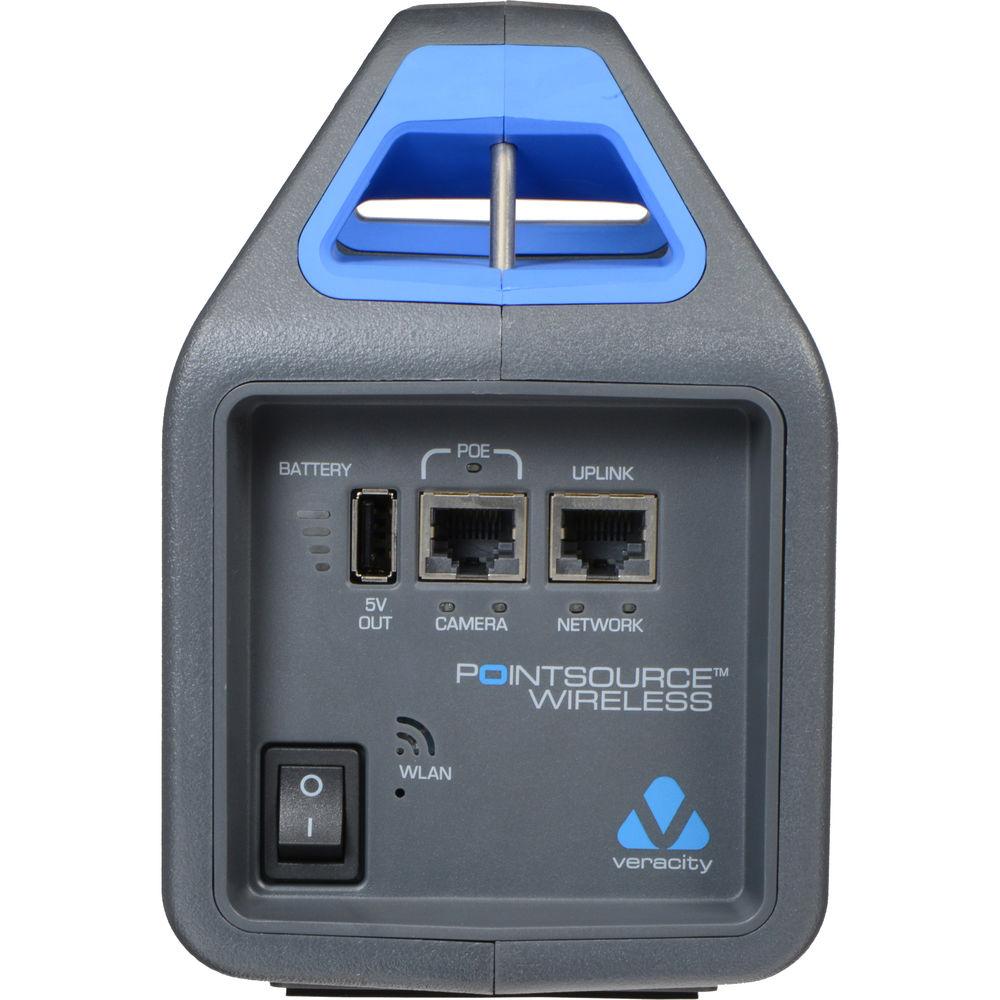

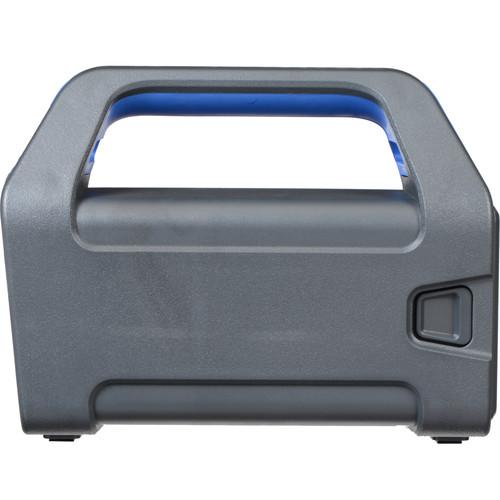

User Manual for Veracity POINTSOURCE Wireless PoE Injector Click to enlarge the picture
Contents of the user manual for the Veracity POINTSOURCE Wireless PoE Injector
- Product category: Test Monitors Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Test Monitors
 |
User manual for the Veracity POINTSOURCE Wireless PoE Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description View live video of your IP cameras on your laptop, smartphone, or tablet with the POINTSOURCE Wireless PoE Injector from Veracity. POINTSOURCE Wireless delivers up to 30W of power to the connected IP camera while providing 2.4 or 5 GHz wireless network access to allow you to connect to it directly in order to install, configure, focus, and align IP cameras. It features a rechargeable and removable battery for up to six hours of use. It has two RJ45 Ethernet ports and a USB charging port to charge your smartphone or tablet. This PoE injector can be used for preinstallation trials and site surveys. - PoE injector with built-in wireless network
- Allows local viewing of IP camera video wirelessly on laptops, smartphones, and tablets
- Enables adjustment of camera alignment, focus, and field of view

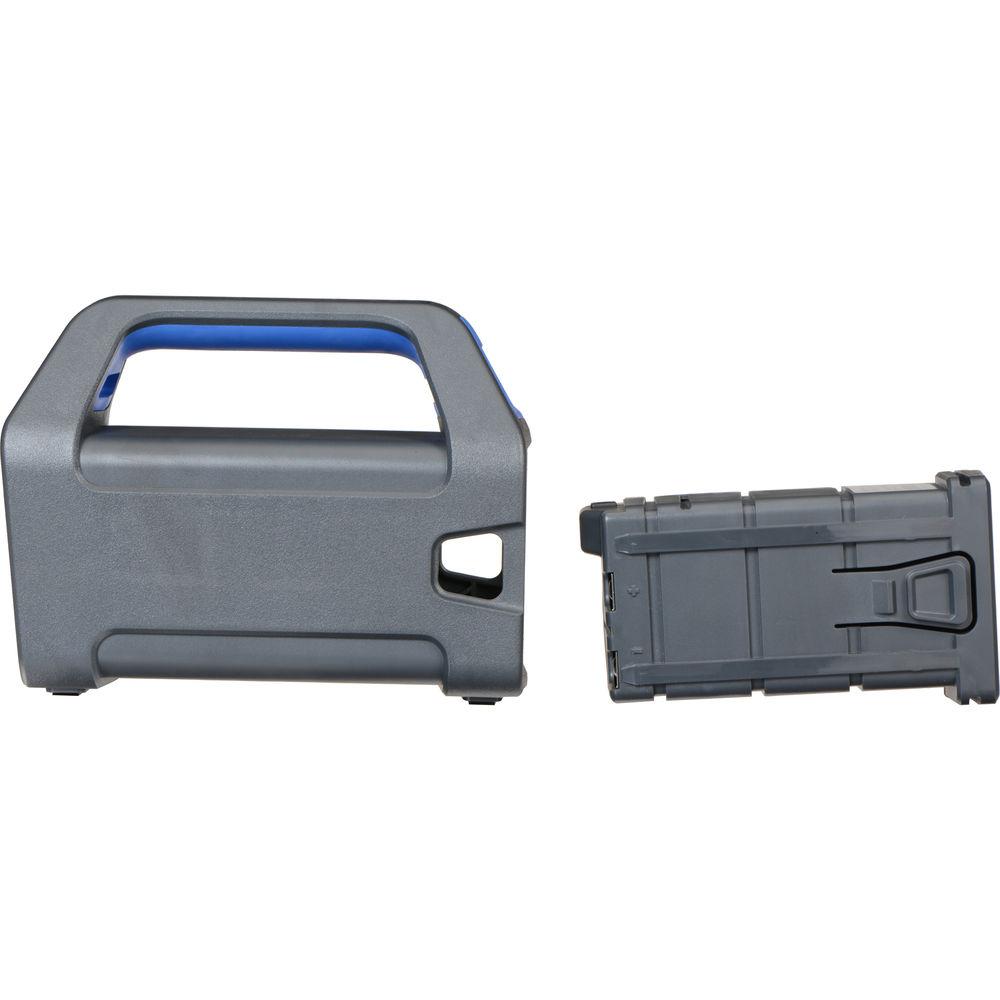

- Removable and rechargeable battery
- Supports all classes of 802.3af and 802.3at PoE devices
- USB charging port for smartphones and tablets
UPC: 892314002487 In the Box Veracity POINTSOURCE Wireless PoE Injector Charger Carry Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity POINTSOURCE Wireless PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VAD-PSW Specs | | | Output | PoE: 48 VDC @ up to 30W | | USB Charging | 5 V @ 2.1 A (power only, no data) | | Battery Type | 12 V, 3.4 Ah lead-acid | | Battery Run-Time (Hours) | 6 hours continuous for a 5 W camera (typical) | | Battery Life | About 3 years, 200 to 300 charging cycles | | Charger | 0.08" (2.1 mm) jack, center positive (on battery module, remove to charge)
Three-stage intelligent (14.4 V, 1 A, 13.8 V float) | | | | Network Interface | Camera Port: 10Base-T/100Base-T with PoE
Network Port: 10Base-T/100Base-T data only | | IP | Automatic or manual configuration of IP address (IPv4) | | Wireless Network Interface | IEEE 802.11b/g/n/ac
2.4 GHz b/g/n (default) (channels 1, 6 or 11)
5 GHz a/ac/n (channels 36, 40 or 44) | | SSID | User configurable | | Wireless Security | WPA2-PSK with user configurable password | | Network Connectors | 2 x RJ45 Ethernet, one with PoE | | | | LED Indicators | PoE Status Indicator: Red LED for on, flash indicates error, off indicates no PoE
Battery Status Indicator: Green four-bar display indicates charge level: 100%, 75%, 50%, 25%
Network Port LEDs: Green: Link speed
Orange: Network activity
Wireless Indicator: Blue LED shows wireless link on, flash indicates booting up | | | | USB Connector | USB Type-A female for charging only (no data) | | Compatibility | ONVIF-enabled cameras
IP cameras supporting live-viewing via browser on smart device or with RTSP URL address | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Battery Charging | Temperature: 32 to 95°F (0 to 35°C) | | Relative Humidity (non-condensing) | 20 to 85% | | Dimensions | 8.07 x 3.94 x 5.9" (205 x 100 x 150 mm) | | Weight | Unit: 1.3 lb (0.6 kg)
Unit with Battery: 4.8 lb (2.2 kg)
Battery: 3.5 lb (1.6 kg) | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 11.4 x 11.1 x 7.6" |
