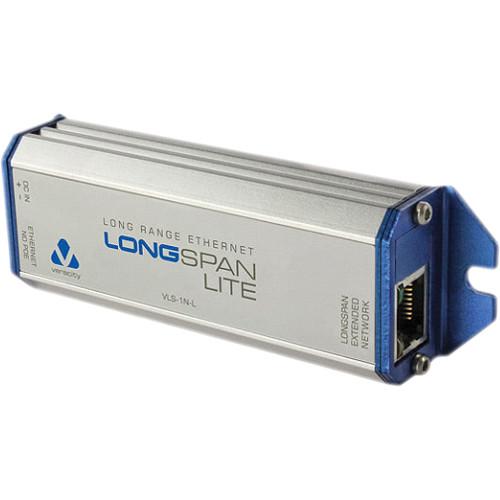

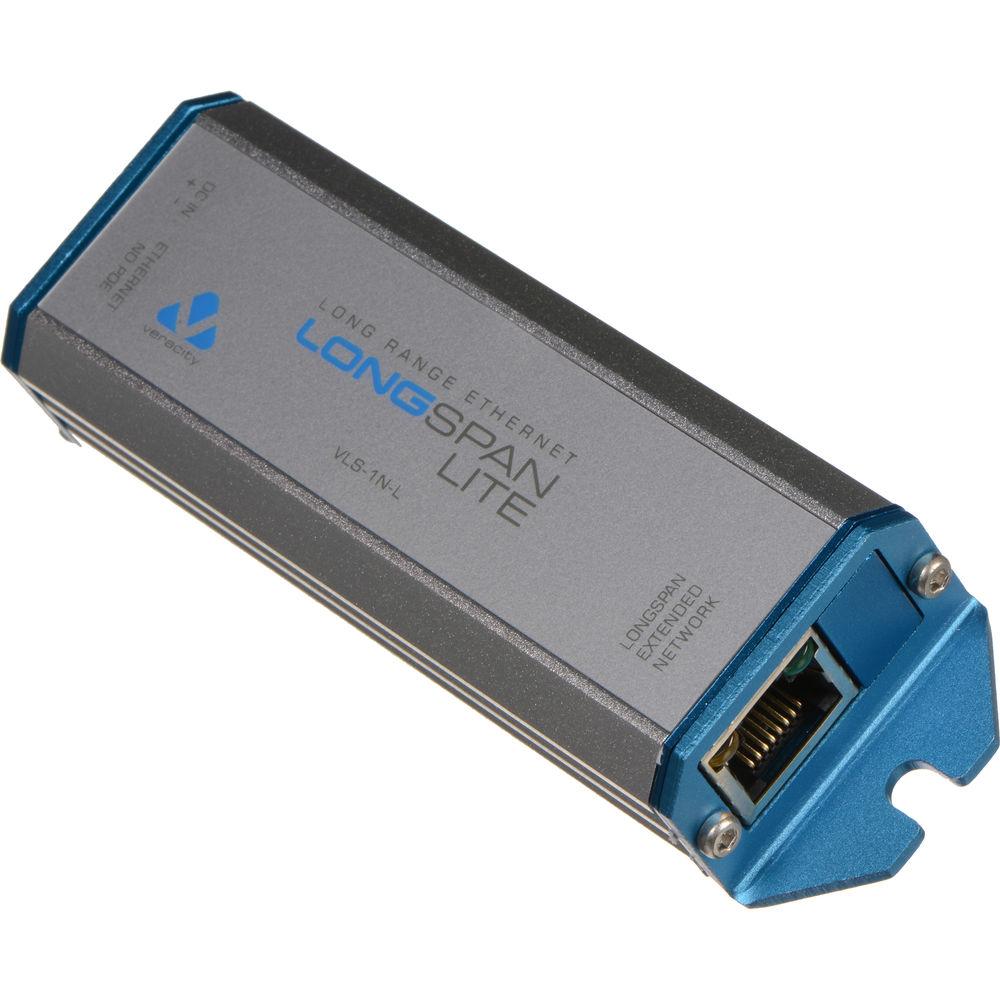

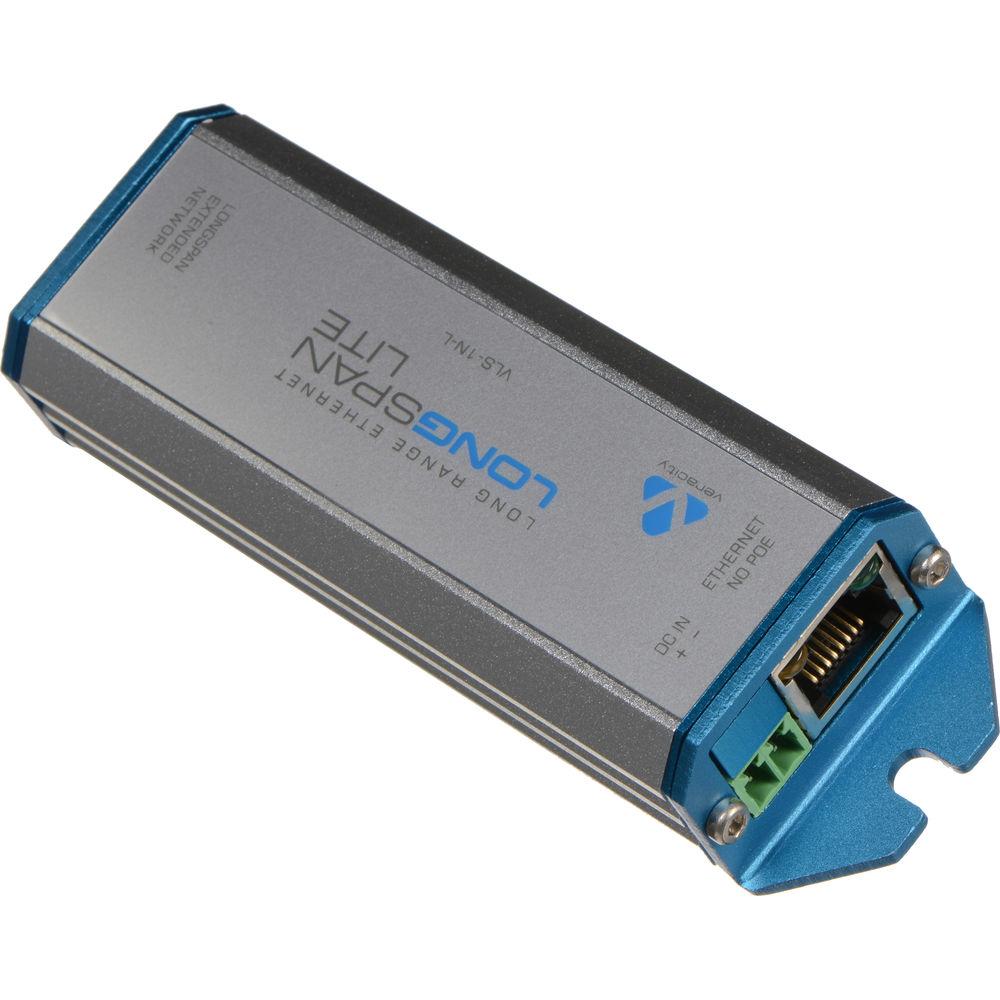

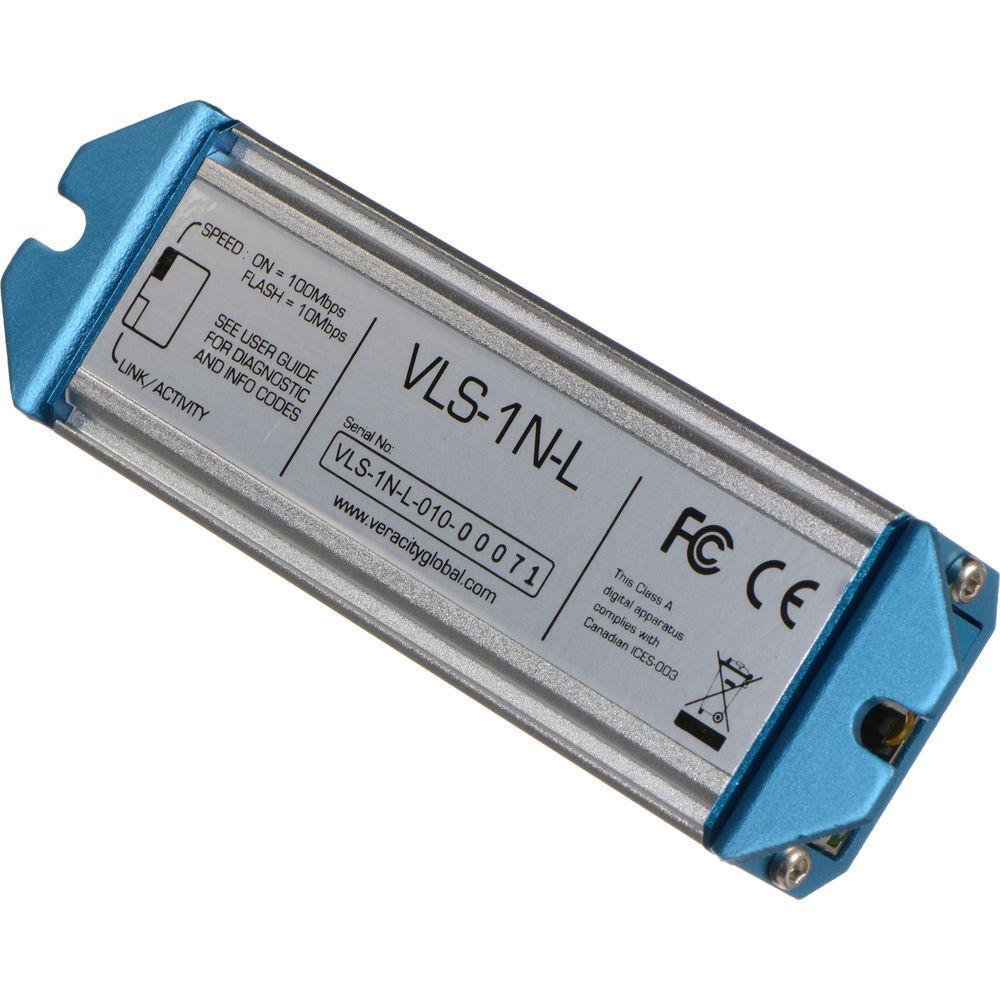

User Manual for Veracity VLS-1N-L LONGSPAN LITE Ethernet Range Extender Click to enlarge the picture
Contents of the user manual for the Veracity VLS-1N-L LONGSPAN LITE Ethernet Range
- Product category: Ethernet Extenders Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Ethernet Extenders
 |
User manual for the Veracity VLS-1N-L LONGSPAN LITE Ethernet Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description The non-PoE LONGSPAN LITE from Veracity provides high bandwidth over extended ranges up to 3500', enabling a dependable connection to IP cameras and other remote network devices. This smart point-to-point solution requires no mid-cable equipment and, with its automatic self-configuration, installation is simple and easy. The LONGSPAN LITE also supports single-pair UTP cables, providing a fast upgrade solution for legacy analog systems.
The LONGSPAN LITE is designed to allow you to run IP cameras up to 2700' using 100Base-T speeds and up to 3500' using 10/100Base-T speeds. This converter supports 1- and 2-pair cables with extended range, allowing analog cameras in UTP installations to be upgraded to IP with no need to replace cabling. The LONGSPAN LITE automatically adapts to the number of pairs available and delivers the same unrestricted 10 or 100Mbps full-duplex network connection. It self-configures for optimum performance every time it is connected and eliminates the need for user setup, DIP switch settings, and system pairings. - Extends Ethernet up to 3500'
- Compatible with legacy UTP cables
- Full-speed, long-range, point-to-point Ethernet connection over regular Cat5e or Cat6 cable
- Fully automatic, simple to install, and maintenance-free
UPC: 892314002234 In the Box Veracity VLS-1N-L LONGSPAN LITE Ethernet Range Extender (Non-PoE) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity VLS-1N-L LONGSPAN LITE Ethernet Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VLS-1N-L Specs | Power | Unit: 1 W | | DC Power Input | 8 to 57 VDC or 20 to 28 VAC, maximum 100 mA
Detachable screw terminal for class II isolated external supply | | Connector | RJ45 Ethernet | | Compatible Cables | Cat6, Cat5e, Cat3, other 1-, 2-, and 4-pair UTP cable | | Ethernet Interface | Cable: Patch or crossover, auto detected
Rate: 100Base-TX or 10Base-T, full-duplex with auto-negotiation | | Bandwidth | Cat6:
100 Base-TX: Up to 2700' (820 m)
10 Base-T: Up to 3500' (1050 m)
Cat5e:
100 Base-TX: Up to 2250' (690 m)
10 Base-T: Up to 3100' (950 m)
1-Pair UTP:
100 Base-TX: Up to 1000' (300 m)
10 Base-T: Up to 3000' (900 m) | | LED Indicators | LONGSPAN: Link/activity, rate
Ethernet: Link/activity, power good | | Operating Temperature | -40 to 158°F (-40 to 70°C) | | Relative Humidity (non-condensing) | 85% | | Dimensions | 4.7 x 1.4 x 0.9" (120 x 36 x 23 mm), including the length of the removable mounting brackets | | Weight | 3.5 oz (100 g) | | | | Package Weight | 0.245 lb | | Box Dimensions (LxWxH) | 5.4 x 2.45 x 1.2" |
