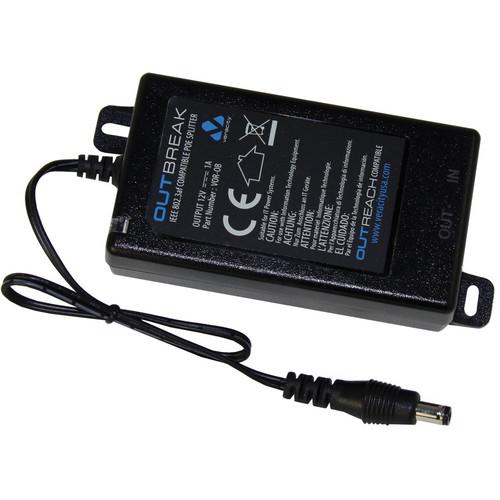

User Manual for Veracity VOR-OB5 Outbreak PoE Splitter Click to enlarge the picture
Contents of the user manual for the Veracity VOR-OB5 Outbreak PoE Splitter
- Product category: Power over Ethernet (PoE) Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Power over Ethernet (PoE)
|
User manual for the Veracity VOR-OB5 Outbreak PoE Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description The Veracity VOR-OB5 Outbreak PoE Splitter (5V) allows you to upgrade low power network devices or non-network devices such as IP cameras, access control panels, and VoIP telephones to be fully PoE compatible. It delivers 5V power and network data connection to non-PoE units and protects the splitter from OTP, OCP, and OVP. You can wire the unit's DC output to the camera's power input, which enables the camera to get connected to the network. The Outbreak Splitter converts PoE to the required lower voltage supply. A built-in 10/100/1000BASE-T network interface enables you to control the camera from a personal computer, and to monitor live images over a network. - Fully Compliant with IEEE802.3af PoE Splitter
- Allows you to upgrade low-power network devices or non-network devices such as IP cameras, access control panels, and VoIP telephones to be fully PoE compatible
- Delivers 5V power and network data connection to non-PoE units
- Full protection from OTP, OCP, and OVP
- Converts PoE to the required lower voltage supply
- 10/100/Gigabit compatible
- Crowbar protection against overvoltage
- 10/100/1000BASE-T network compatibility
UPC: 892314002722 In the Box Veracity VOR-OB5 Outbreak PoE Splitter (5V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity VOR-OB5 Outbreak PoE Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VOR-OB5 Specs | Network | Network Compatibility
10/100/1000BASE-T | | PoE | PoE Compatibility
IEEE 802.3af class 0 device | | Connectors | Connectors
RJ45 - Network
RJ45 - Network / PoE in
2.5mm - DC power out | | Power Output | 5VDC, 2.2A | | Operating Temperature | 32 ~ 104°F (0 ~ 40°C) | | Dimensions | (excluding tabs)
3.9 x 2.2 x 1.1" (100 x 56 x 28mm) - DC cable is 12" (305mm) long | | Weight | 0.3 lbs (0.1kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.4 x 3.0 x 1.4" |
