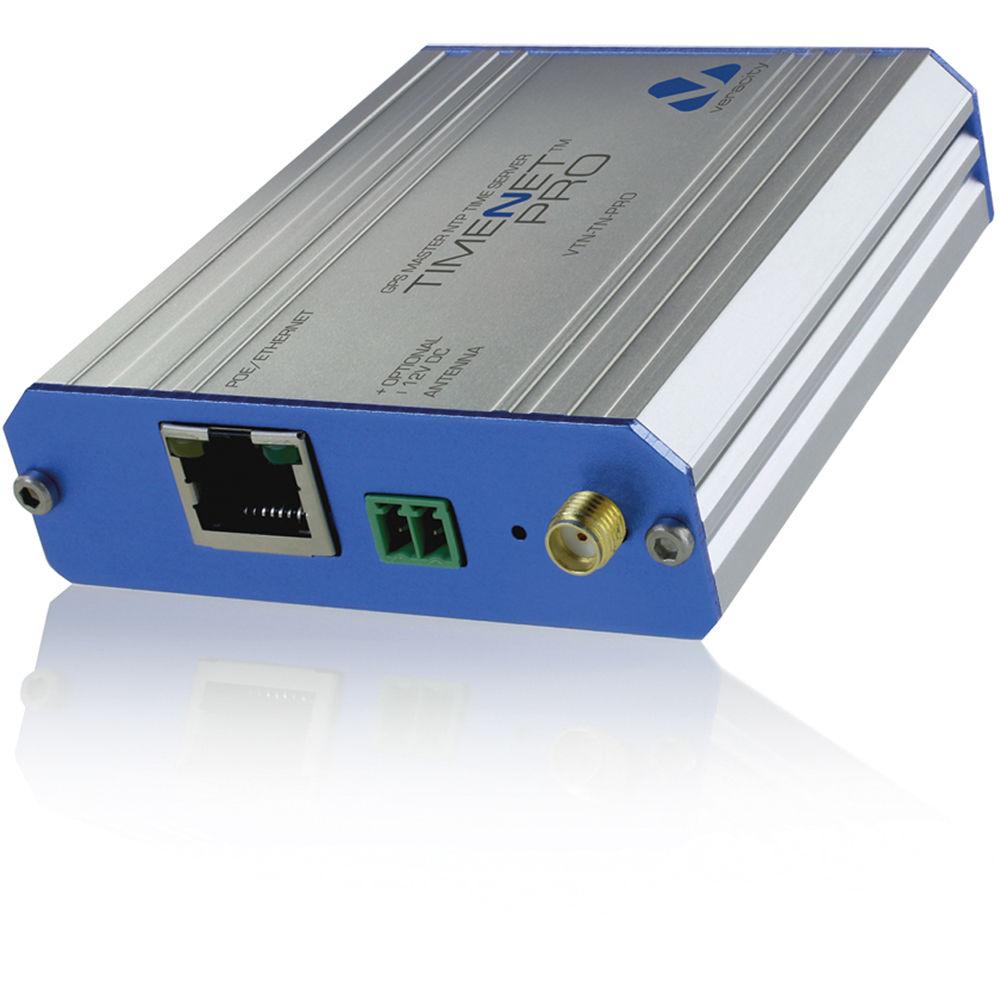

User Manual for Veracity VTN-TN-PRO TIMENET Pro Master NTP Time Server with Antenna Click to enlarge the picture
Contents of the user manual for the Veracity VTN-TN-PRO TIMENET Pro Master NTP
- Product category: Recording Accessories Veracity
- Brand: Veracity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Veracity Recording Accessories
 |
User manual for the Veracity VTN-TN-PRO TIMENET Pro Master NTP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Veracity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Veracity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Veracity product will considerably shorten its lifespan!
|
Product description Accurately maintain reference time signals over your Ethernet network with the VTN-TN-PRO TIMENET Pro Master NTP Time Server with Antenna from Veracity. This unit ensures that all connected CCTV devices are synchronized with the correct atomic clock reference time using NTP (Network Time Protocol). This reference time is directly received via the attached antenna from the GPS satellite network. The antenna has an outdoor-rated magnetic housing and comes with an adhesive surface to allow it to be mounted outside or on any window with a view of the sky. - Supports NTP-compatible devices
- Synchronizes VMS and ACS servers and clients
- Designed for CCTV systems, closed and secure networks, and vehicle- or mobile-based applications
- Designed for simple installation via browser interface
- Antenna with an outdoor-rated magnetic housing and adhesive pad can be mounted on any window with a view of the sky
- Automatic GPS lock and time sync with atomic clock references
UPC: 892314002630 In the Box Veracity VTN-TN-PRO TIMENET Pro Master NTP Time Server with Antenna 16' GPS Antenna Cable Wall Mounting Brackets Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Veracity VTN-TN-PRO TIMENET Pro Master NTP Time Server with Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVeracity VTN-TN-PRO Specs | | | Source | Time: GPS Satellite | | Protocol | NTP Stratum 1 Time Server | | Accuracy | Ethernet NTP ±1 ms overall
GPS source ±0.1 µs | | | | Connector | SMA male | | Antenna | GPS sensor on 16.4' (5 m) cable | | Mounting | Outdoor-rated magnetic housing with adhesive pad | | | | Status Indicator | Green LED Long Pulse: OK
Green LED Short Pulse: No GPS lock
Amber LED: Heartbeat pulse | | | | Connector | RJ45 | | Rate | 10/100Base-T full-duplex with auto-negotiation | | Data Security | Shared Keys system (server authentication) | | | | Power | 1.5 W | | PoE Class | Class 1 | | Power Input | Alternate: 10-40 VDC (maximum current 150 mA at 12 V) (available separately) | | Operating Temperature | 5 to 125°F (-15 to 75°C) | | Operating Humidity | 95% non-condensing | | Compliance | CE, FCC, RoHS | | Dimensions | Overall: 3.4 x 2.95 x 0.86" (87 x 75 x 22 mm)
With wall mounting brackets: 3.8 x 2.95 x 0.86" (97 x 75 x 22 mm) | | Weight | Without Wall Mounting Brackets: 4.2 oz (121 g)
With Wall Mounting Brackets: 4.3 oz (123 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.2 x 4.8 x 1.5" |
