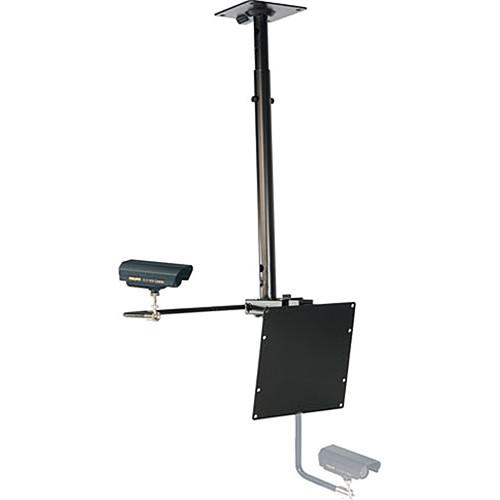

User Manual for Video Mount Products LCD-PV Public View LCD Monitor Mount Kit Click to enlarge the picture
Contents of the user manual for the Video Mount Products LCD-PV Public View
- Product category: Monitor Ceiling Mounts Video Mount Products
- Brand: Video Mount Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Video Mount Products Monitor Ceiling Mounts
|
User manual for the Video Mount Products LCD-PV Public View contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Video Mount Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Video Mount Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Video Mount Products product will considerably shorten its lifespan!
|
Product description The Video Mount Products LCD-PV Public View LCD Monitor Mount Kit includes a modified version of its LCD-2537CB ceiling mount that features two mounting points for the kit's camera bracket. The entire assembly is designed to hold both a 10 to 37" flat-panel display and a camera to create a simple live public-view system. The camera bracket can be installed so that the camera sits below or to the side of the flat-panel display. It uses standard 1/4"-20 threading to attach to almost all small and medium-size cameras. The LCD-2537CB has a telescoping mast that extends 18 to 30" from the ceiling. The kit includes two mounting plates that accommodate standard VESA 75 x 75mm, 100 x 100mm, 100 x 200mm, and 200 x 200mm hole patterns. The mounting plate can rotate a full 360°, and it tilts -5 to +20°. Also included is the necessary hardware for using standard 1.5" NPT plumbing pipe for extended drops from the ceiling. The AK-1 adapts the display mount for the pipe, and the CP-1 plate attaches the pipe to the ceiling. UPC: 673853013604 In the Box Video Mount Products LCD-PV Public View LCD Monitor Mount Kit LCD-2537C Mid-Size Flat Panel Ceiling Mount - Black vcysafyebafsbs Camera Mounting Bracket CP-1 Ceiling Plate for Standard 1.5" NPT Pipe AK1 Adapter Kit to Convert to 1.5" NPT Pipe Forever Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Video Mount Products LCD-PV Public View LCD Monitor Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideo Mount Products LCD-PV Specs | Tilt | -5 to +20° | | Swivel | 360° | | Load Capacity | 75 lb (34 kg) | | Dimensions (HxWxD) | Mast fully extended w/ large mounting plate: 39.3 x 8.4 x 7.5" (100.0 x 21.3 x 19.1 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 20.25 x 9.0 x 6.13" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
