User Manual for Videolarm BMT10C2 Outdoor Bullet-Resistant Housing with Heater Click to enlarge the picture
Contents of the user manual for the Videolarm BMT10C2 Outdoor Bullet-Resistant Housing with
- Product category: Housings Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Housings
|
User manual for the Videolarm BMT10C2 Outdoor Bullet-Resistant Housing with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|

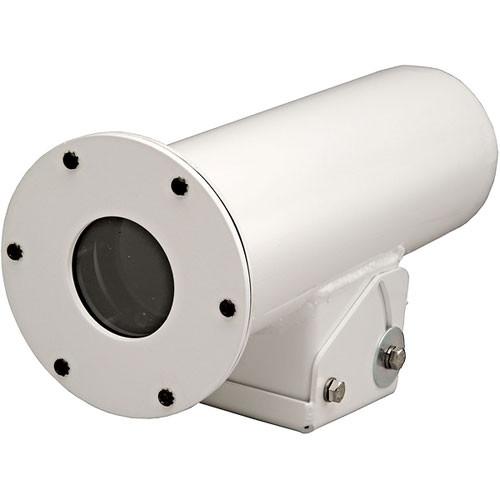

Product description The Videolarm BMT10C2 is an outdoor CCTV camera housing constructed of a rugged steel material tough enough to stop a 9mm bullet. This ballistic rating prevents a would-be intruder from using a gun to disable the camera from a distance without first being seen by the camera. With this degree of vandal resistance, this housing is a perfect choice for use in prisons, army installations, money storage facilities and similar extreme surveillance environments.
For added protection, this housing comes equipped with a Window Guard paint shield, allowing the viewing window to be quickly and economically restored to clarity after a spray painting or scratching incident. It also features a built-in thermostatically controlled heater for outdoor use in cold weather conditions. Note: Replacement Window Guard paint shields available (BMTWG) - Ultra rugged steel construction capable of withstanding the impact of a 9mm bullet
- Thermostatically controlled heater for indoor or outdoor installation
- Window Guard paint shield for easy and economical restoration of vandalized viewing window
- Accommodates fixed camera and lens combinations up to 9.5" long
- Internal adjustable camera bracket with 360° rotation
UPC: 793821021216 In the Box Videolarm BMT10C2 Outdoor Bullet-Resistant Housing with Heater (24 VAC) 3-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm BMT10C2 Outdoor Bullet-Resistant Housing with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm BMT10C2 Specs | Mount Type | Surface | | Compatible Cameras | Fixed | | Maximum Camera/Lens Size | Length: 9.5" (25mm)
Width: 3.3" (84mm) | | Clear or Tinted | Clear | | Construction | Body
7-Gauge steel with heat reflective white powder coat finish
Faceplate
1.25" SP-120 Lexguard bullet-resistant plastic with Window Guard paint shield | | Operating Temperature | -20 ~ 120°F (-29 ~ +49°C) | | Heater Activates At | Not Specified by Manufacturer | | Heater Deactivates At | Not Specified by Manufacturer | | Rating | IP65, NEMA 4x | | Power Requirements | 24 VAC | | Power Consumption | 28W | | Dimensions (WxHxD) | 5.3 x 6.8 x 13.8" (135 x 173 x 351mm) | | Weight | 18 lbs (8.2 kg) | | | | Package Weight | 21.25 lb | | Box Dimensions (LxWxH) | 19.1 x 11.1 x 9.5" |
