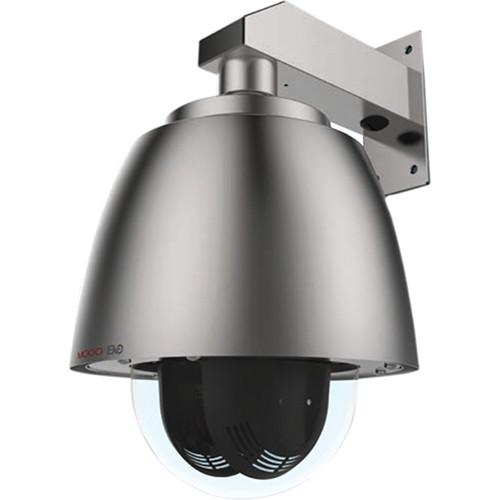

User Manual for Videolarm EXSS7C2-3 EXO Stainless Steel HD Network Camera System Click to enlarge the picture
Contents of the user manual for the Videolarm EXSS7C2-3 EXO Stainless Steel HD
- Product category: Wired IP Cameras Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Wired IP Cameras
|
User manual for the Videolarm EXSS7C2-3 EXO Stainless Steel HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description The Videolarm EXSS7C2-3 EXO Stainless Steel Corrosion-Resistant HD Network Camera System with H.264 full-line compression and ONVIF support is the professional’s choice for capturing 1080p, full HD video in extreme applications.This camera system is designed to protect video surveillance equipment in corrosive and harsh chemical environments. The outer housing and sunshield are constructed of 316 stainless steel.A special optically clear lower dome has chemical resistance, which imparts the ability to endure stress without cracking and anti-scratch properties. Thus, this stainless-steel camera system is suitable for marine, medical, pharmaceutical, oil and gas processing plants, food processing, transportation, and other harsh environments. - H.264 full-line, MPEG-4, M-JPEG compression
- Manufactured with quality grade 316 L stainless-steel
- Auto wide dynamic range and true day and night technology with an automatically removable IR-cut filter provide good picture regardless of lighting conditions
- Proprietary surge protection (Ethernet, power and alarm / data wires)
- Heavy-duty pan/tilt mechanism, 360° continuous rotation and 5° above the horizon tilt
- OptiClear lower dome offers clarity, durability and chemical resistance
- Meets IP67 rating for water, dust, and contamination prevention
- Blower and heater included
- Conforms to NEMA 4X and NEMA TS2 standards
- Micro-SD / SDHC / SDXC / support
In the Box Videolarm EXSS7C2-3 EXO Stainless Steel HD Network Camera System Blower & Heater Limited 3-Year Warranty Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm EXSS7C2-3 EXO Stainless Steel HD Network Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm EXSS7C2-3 Specs | | | Imager | 1/2.8 progressive scan CMOS, 3.27 Mp | | Lens | 20x optical zoom, f=4.7 to 94 mm, F1.6 to 3.5 autofocus, auto D / N, horizontal angle of view: 55.4 to 2.9° (1080p) | | Shutter Speed | Automatic or user selectable | | Selection | Selectable Shutter Speeds: 1/1 to 1/10,000s, 22 steps | | Horizontal Viewing Angle | 59.5º (wide end) to 2.1º (tele end) | | Aperature | Lens Aperture: Minimum of f/1.6 (wide) to f/4.7 (tele) | | Minimum Illumination | Black and White: 0.09 lx, F1.6
Color: 1.2 lux (F1.6 50 IRE) | | Image Settings | Wide dynamic range (WDR), manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, backlight compensation | | | | Video Compression | H.264 High, Main and Baseline profiles Motion JPEG | | Resolutions | HDTV 1080p: 1920 x 1080 to 320 x 180 | | Frame Rate | Up to HD 1080p @ 30 fps720p @ 60fps | | Video Output | H.264: Up to 30 / 25 fps (60 / 50 Hz) | | Video Streaming | User selectable (1) H.264 and (1) H.264 or MJPEG | | Image Settings | Wide Dynamic Range, manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, backlight compensation, fine tuning of behavior at low light, rotation, text and image overlay, privacy masks, image freeze on PTZ | | Data Rate | Variable Bit Rate, Motion adaptive variable bit rate and Constant Bit Rate modes. 64 kbps - 6 Mbps per channel (requires less than 1 Mbps @ 4CIF/30fps) | | Local Storage | SD / SDHC memory card slot (card sold separately) | | Alarm Triggers | Video motion detection, PTZ preset, Temperature, alarm input | | Alarm Events | File upload via FTP, notification via e-mail, local storage, pre- and post-alarm video buffering | | | | Construction | Bearings: Precision ball bearings, permanently lubricated bushings
Motors: Stepper motors | | Drive | Belt-driven, ¼" (0.6 cm) wide | | Panning Range | 360° continuous | | Panning Speed | 120°/sec, 0.5 to 80°/sec on manual operation | | Preset Accuracy | +/-0.05 ° | | Tilt Angle | 2 to -90° | | Tilting Speed | 120°/sec, 0.5 to 80°/sec on manual operation | | | | Housing Style | Anti-corrosive stainless steel | | Mounting System | Pendant (optional wall mount) | | | | Alarm Input / Output | 2 / 2 | | Input Voltage | 24 VAC | | Power Consumption | 80 W (va) | | Audio Streaming | Two-way: Uncompressed PCM High-fidelity AAC-LC G.711 | | Audio Input & Output | Single analog audio input; Single analog audio output (external microphone and speaker required) | | Connector | RJ45 for 10BASE-T/100BASE-TX, Phoenix style connectors for AC/DC power, 4 configurable alarm inputs / outputs, mic in, line mono input, line mono output to active speaker | | Application Programming Interface | GENETEC API, PSIA (Milestone, ONSSI), ONVIF | | | | Networking | IPv4/v6, UDP, TCP, IGMP, ICMP, ARP, DHCP, DNS | | Streaming | RTP, HTTP | | Management | RTSP, HTTP, HTTPS, Bonjour, NTP, Telnet, SNMP | | Security | Password protection, HTTPS encryption, digest authentication, user-access log | | System Administration | Web GUI interface (HTTP or HTTPS) | | Access Control | SSL, Basic and Digest Authentication | | Buffering | Audio / Video Buffering: Recorded ASF files to micro-SD medium | | Memory | Long Term System Configuration Memory: System configuration stored on internal flash | | Software Update | Fault-tolerant, remote accessible | | Alarm Events | Triggered by external input or internal event monitoring | | Network | Standard 10/100 Base-T Ethernet port | | Recording | Edge Recording: One micro-SD / SDHC / SDXC interface (Two 32 GB sold separately, class 6 or above micro SD card) | | | | Temperature | Purging Control Box: -22 to 122°F (-30 to 50ºC) | | Blower | Heater: Yes | | Heater Activates/Deactivates At | 60 to 80°F (15.5 to 27°C) | | Rating | IP / Weather: IP66
Impact / Bullet Resistance: IK10 | | Windload | Maximum: 240 kmph (150 mph) | | Operating Temperature | -58 to 165°F (-50 to 74°C) | | Impact Rating | IK10 | | Vibration | Conforms to NEMA TS2, para 2.1.9 | | | | Construction | Top, Sunshield, and Trim Ring: 316 stainless steel | | Mounting | Mounting Style: Pendant mount
Mouting Pattern: 1.5"NPT
With Bolt Size: 2" x 5.5", 3/8" (5.0 x 13.9 cm, 0.7 cm) | | Mount Thread | Pendant: 1 ½" NPT | | Dome | Special blend nylon | | Dimensions | 14.3 x 11.3 x 11.3" (364.0 x 288.0 x 288.0 mm) | | Weight | 16.0 lb (7.4 kg) |
