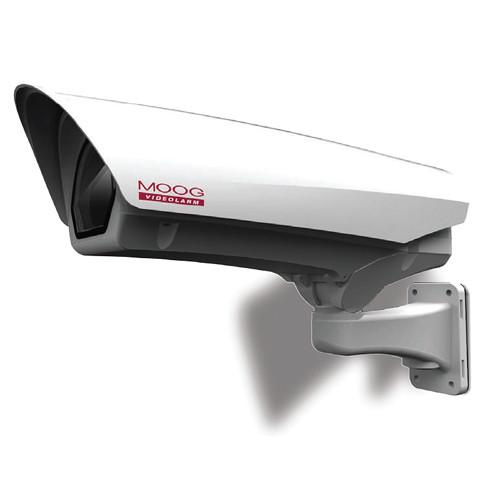

User Manual for Videolarm FCH11C2WQ Fusion Camera Housing Click to enlarge the picture
Contents of the user manual for the Videolarm FCH11C2WQ Fusion Camera Housing
- Product category: Housings Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Housings
|
User manual for the Videolarm FCH11C2WQ Fusion Camera Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description The Videolarm FCH11C2WQ Fusion Camera Housing is an IP66-rated weatherproof enclosure designed to protect the camera from external factors such as dust, accidental contact, and water. With an extruded polycarbonate construction, this housing safeguards the camera even in changing weather conditions. Also, this NEMA 4X-compliant housing is corrosion and impact resistant, which makes it suitable for both indoor and outdoor installations. Furthermore, this IK10-rated housing can withstand high-impact force, shock, and vibration, thus making it an excellent choice for use in high-risk environments.
The featured Thermiq Cooling Technology ensures that the housing’s internal temperature is maintained for smooth functioning of the camera. Also, the heat sink design of this enclosure evacuates the heat generated by IP camera electronics and sun radiation. The sunshield included with this housing system protects the camera from direct sunlight and aids in reducing the internal temperature of the housing. In addition, the equipped thermostatically controlled heater/blower system helps in maintaining the internal temperature of the housing.
You can easily mount this compact camera housing on a wall or onto a pole without a hassle. What’s more, the side-hinge and camera mounting sled allow you to quickly install and service the camera. - Features an IP66-rated weatherproof construction that safeguards the camera from harsh environmental conditions
- Polycarbonate construction and powder coat finish for durability
- Suitable for installation in high-risk outdoor locations (IK10 rated)
- Feed-thru wall or pole mount hides internal cables, offering a clutter-free look
- Climate control system prevents condensation
- Heater/blower system helps maintain the housing's internal temperature
- Heater activates at 60°F (15.5°C) and deactivates at 80°F (27°C)
- Easily accommodates wide-angle lenses (up to 135°)
- Side-hinged lid and tool-free camera tray aid in easy, hassle-free installation and servicing
- Adjustable sunshield helps in maintaining the camera's optimum temperature by protecting it from direct sunlight
- Supports PoE Plus IEEE802.3
- Power over Ethernet capability for charging the housing as well as the camera via the same Ethernet cable
- 30 W midspan included for power supply to heater and blower
- Dynamic Power Allocation (DPA) technology ensures that maximum power is supplied to the camera
- Automatically adjusts for power loss during long cable runs
In the Box Videolarm FCH11C2WQ Fusion Camera Housing 30W Midspan Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm FCH11C2WQ Fusion Camera Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm FCH11 Specs | | | Camera included | No | | Maximum Camera Length | 11" (280 mm) | | Mount | Wall/Pole type | | | | Input Voltage | 12/24 V input model | | Power Consumption | 24 VAC: 30 W (heater & blowers)
12 VDC: 13 W (heater & blowers) | | Power Output | 24/12 V: Same as input, minus power for heater & blowers | | | | Blower | Yes (continuous), internal | | Effective Projected Area (EPA) | 105 square inch | | Heater | Activates at: 60°F (15.5°C)
Deactivates at: 80°F (27°C) | | IP Rating | IP66/NEMA 4X (weather rating) | | Windload | 150 mph (240 kph) maximum | | Operating Temperature | -50 up to 140°F (-45 up to 60°C) | | | | Construction | Body and Top: Polycarbonate
Bracket: Cast aluminum
Window: Scratch resistant polycarbonate | | Mounting Pattern (W x H) | 2 x 4.25" (51 x 108 mm) | | Dimensions (L x W x H) | 19.2 x 6.1 x 11.1" (488 x 155 x 282 mm) | | Weight | 5.3 lb (2.40 kg) |
