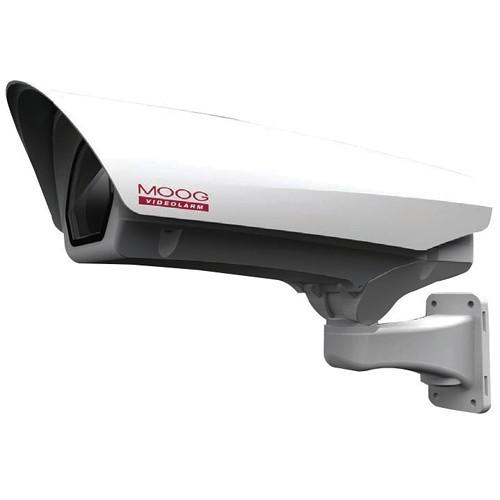

User Manual for Videolarm FCH11C8WQE Fusion Camera Housing with Thermic Cooling Technology Click to enlarge the picture
Contents of the user manual for the Videolarm FCH11C8WQE Fusion Camera Housing with
- Product category: Housings Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Housings
|
User manual for the Videolarm FCH11C8WQE Fusion Camera Housing with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description Provided by third party: The Videoalarm FCH11C8WQE Fusion Camera Housing with Thermic Cooling Technology is a professional grade outdoor camera housing designed to keep advanced IP fixed cameras operating at peak performance. A major threat to outdoor cameras is heat. Today’s IP cameras generate a lot of heat and radiation from the sun is a substantial contributor as well. A typical outdoor camera system may have an ambient temperature of 105°F (40°C), but the temperature inside the camera can be 120°F (50°C) or higher. Over time high temperatures reduce the performance of the camera and can lead to premature failure.
Moog's Thermiq Technology is an effective solution to combat camera heat. This technology requires very little power and maintains the camera enclosure's rugged IP66 rating while ensuring that heat does not build up in the camera. By flowing warm internal air and cool external air over a heat sink designed for maximum efficiency, heat generated by IP camera electronics and sun radiation is evacuated from the housing. The housing has a built-in window defogger for maximizing optical clarity. Available with patent pending Dynamic Power Allocation (DPA) technology, this Fusion model is ideal for your particular surveillance application.
Smart features include a side hinge that allows for easy camera servicing and setup, a camera mounting sled that snaps into the housing for simple and secure camera installation, a strategically placed heater to ensure the housing window and lens are always clear, and a heavy-duty feed through wall/pole mount with conduit input for clean aesthetics. - Meets NEMA type 4X and IP66 standards
- Thermostatically controlled blower
- Standard wall / pole mount
- Accommodates wide-angle lenses up to 135˚
- Fits most fixed camera / lens combinations
- Supports IEEE802.3af compliant cameras, PoE cameras without 12 VDC or 24 VAC options are compatible
- Automatically adjusts for power loss in long cable runs, DPA ensures maximum power to the camera
In the Box Videolarm FCH11C8WQE Fusion Camera Housing with Thermic Cooling Technology Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm FCH11C8WQE Fusion Camera Housing with Thermic Cooling Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm FCH11 Specs | | | Maximum Camera Length | 11" (280 mm) | | Mount Type | Wall or pole | | | | Input Voltage | Housing: PoE (IEEE802.3at) | | Power Output | Housing: IEEE802.3af | | Power Consumption | 25 W (camera, blower & heater) | | | | Construction | Body & Top: Polycarbonate
Mounting Bracket: Cast Aluminum
Window: Scratch resistant polycarbonate | | Mounting Pattern (W x H) | 2 x 4.25" (51 x 108 mm) | | | | Blower | Internal: Yes (continuous) | | Effective Projected Area (EPA) | 105 inch² | | Heater Activates At | 60°F (15.5°C) | | Heater Deactivates At | 80°F (27°C) | | IP/NEMA Rating (Weather Rating) | 66 / 4X | | Windload | Maximum: 150 mph (240 kph) | | Operating Temperature | -50 to 122°F (-45 to 50°C) | | Dimensions (L x W x H) | 19.2 x 6.1 x 11.1" (488 x 155 x 282 mm) | | Weight | 5.3 lb (2.40 kg) |
