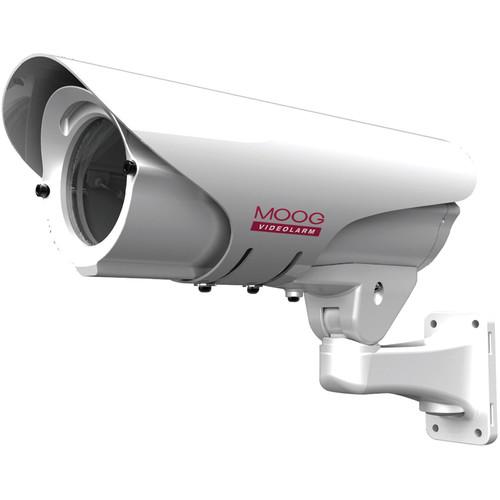

User Manual for Videolarm Fusion DFH10C8WY Dust-Proof Tubular PoE Ready Camera Housing with 30W Midspan, Heater & Blower, Feed-Thru Wall Pole Mount, & Adjustable Sunshield Click to enlarge the picture
Contents of the user manual for the Videolarm Fusion DFH10C8WY Dust-Proof Tubular PoE
- Product category: Housings Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Housings
|
User manual for the Videolarm Fusion DFH10C8WY Dust-Proof Tubular PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description The Videolarm Fusion DFH10C8WY Dust-Proof Tubular PoE Ready Camera Housing protects fixed IP cameras and lenses from debris, chemicals, and other contaminants, extending the life of the camera and reducing service calls. The housing supports IEEE802.3af PoE cameras and comes with (DPA) Dynamic Power Allocation technology, 30W midspan, heater and blower, feed-thru wall/pole mount, and adjustable sunshield. Adaptable to a multitude of outdoor surveillance applications, this camera enclosure offers optimal protection, flexibility, and ease of installation. This rugged tubular housing is constructed of treated aircraft-grade aluminum and 316 stainless steel hardware to protect cameras in harsh, corrosive environments. A heavy-duty feed through wall/pole mount with conduit input protects and conceals wiring. Design features, including easy access to the camera and all serviceable parts, allow for simplified installation and servicing of the camera and enclosure. Maintenance can be achieved while preserving the camera's position and viewing angle. Other installation features include a rotational camera sled to ensure the desired field of view, a rear access door that allows easy wire installation through the mount, and simple plug-in connections requiring no special tools. The PoE Plus IEEE802.3at compliant housing comes with DPA technology that offers intelligent power distribution between the camera and the heater and blower system. DPA prioritizes incoming power so that successful camera operation is guaranteed across a full range of operating conditions. - Powder-coated aluminum and 316 stainless steel hardware
- Thermostatically controlled heater, with continuous blower
- Meets IP67 and NEMA Type 4 standards
- Standard wall / pole mount (no pole adapters needed)
- Camera sled has a built-in leveling bubble
- Only one tool needed to secure and mount all hardware
- Wall mount pan / tilts 15° up on a vertical axis and 67° down
- Sunshield is adjustable in the forward axis and rotates around housing
- PoE Plus IEEE802.3at compliant, compatible with almost any PoE IEEE802.3af camera
- Ensures supply of true PoE power to the camera (no splitter needed for camera)
- DPA technology ensures maximum power supply to the camera with remaining power provided to the heater and blower
- Automatically adjusts to power loss for long cable runs
In the Box Videolarm Fusion DFH10C8WY Dust-Proof Tubular PoE Ready Camera Housing with 30W Midspan, Heater & Blower, Feed-Thru Wall/Pole Mount, & Adjustable Sunshield 30W Midspan Mounting Hardware Packet Limited 5-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm Fusion DFH10C8WY Dust-Proof Tubular PoE Ready Camera Housing with 30W Midspan, Heater & Blower, Feed-Thru Wall Pole Mount, & Adjustable Sunshield in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm DFH10C8WY Specs | | | Input Voltage | PoE | | Power Consumption | 25 W (camera, heater, & blower) | | Power Output | IEEE802.3af | | | | Blower | Yes, continuous | | Effective Projected Area (EPA) | 99 in2 including wall mount | | Windload | Maximum: 150 mph (240 kph) | | Heater | Activates at 60°F (15.5°C)
Deactivates at 80°F (27°C) | | IP Rating | IP67 | | Operating Temperature | -58 to 158°F (-50 to 70°C) | | | | Construction | Body: Aluminum, all hardware is 316 stainless steel
Endcaps:
Front: Cast aluminum
Rear: Plastic
Mounting Bracket: Cast aluminum
Viewing Window: Tempered glass | | Mounting Pattern (W x H) | 2.00 x 4.25" (51.00 x 108.00 mm) | | | | Regulatory Certifications | NEMA rating, RoHS, WEEE, REACH | | Maximum Camera Length | 10" (250 mm) | | Mounting | Wall or pole | | Dimensions | 20 x 12 x 6" (510 x 305 x 153 mm) | | Weight | 10.0 lb (4.6 kg) with mount and sunshield |
