User Manual for Videolarm Fusion Pressurized and Dust-Proof Tubular Camera Housing Click to enlarge the picture
Contents of the user manual for the Videolarm Fusion Pressurized and Dust-Proof Tubular
- Product category: Housings Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Housings
|
User manual for the Videolarm Fusion Pressurized and Dust-Proof Tubular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|

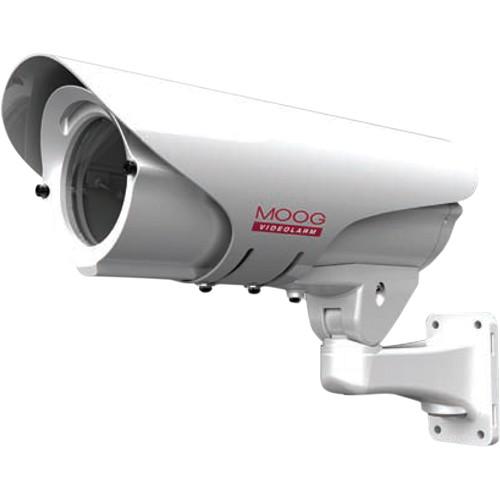

Product description The Videolarm Fusion Pressurized and Dust-Proof Tubular Camera Housing is engineered with camera protection, ease of installation, and flexibility in mind.
The Fusion tubular housing body is constructed of treated aircraft-grade aluminum and 316 stainless steel hardware to ensure camera protection in harsh, corrosive environments. With an IP67-rating, this Fusion Pressurized housing is able to thrive in hostile environments such as sea ports, food processing plants, transportation, and dusty mining applications. Pressurization protects the camera and lens from debris, chemicals and other containments, extending the life of the camera and reducing service calls. The unit includes a 16-pin hermetically-sealed connector to simplify connections. A heavy-duty feed through wall/pole mount with conduit input protects and conceals wiring.
This Fusion Pressurized housing is easy to install and maintain. Easy access to the camera and all serviceable parts allows service to be performed while the camera position and viewing angle are maintained. Other easy-to-install features include a camera sled that can be rotated within the housing to ensure the desired field of view, a rear endcap that allows for easy wire installation through the mount, and a simple plug-in connection board.
The unit includes a PoE input with Moog Videolarm’s proprietary patent pending Dynamic Power Allocation (DPA) technology that offers intelligent power distribution between the camera and the heater and blower system. It prioritizes incoming power so that successful camera operation is guaranteed across a full range of operating conditions. - Powder coated aluminum and 316 stainless steel hardware
- Thermostatically controlled heater with continuous blower
- Meets IP67 and NEMA Type 4X standards
- 5 to 7 psi pressure relief valve eliminates over pressurization
- Schrader valve to fill the housing with nitrogen or another clean stable gas
- Standard wall / pole mount (no pole adapters needed)
- PoE+ IEEE802.3at compliant - compatible with any PoE IEEE802.3af camera
- True PoE power to the camera (no splitter needed for camera)
- DPA ensures maximum power to the camera with remaining power provided to the heater & blower
- Automatically adjusts to power loss for long cable runs
- Camera sled has a built-in leveling bubble
- Only one tool needed to secure and mount all hardware
- Wall mount pan / tilts 15° up on a vertical axis and 67° down
- Sunshield is adjustable in the forward axis and rotates around housing
- Front window with standard model glass
In the Box Videolarm Fusion Pressurized and Dust-Proof Tubular Camera Housing 30 W Midspan Heater & Blower Feed-Thru Wall/Pole Mount Adjustable Sunshield 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm Fusion Pressurized and Dust-Proof Tubular Camera Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm PFH10 Specs | | | Input Voltage | PoE | | Power Consumption | 25 W: Camera, blower & heater | | Power Output | 24/12 V: Same as input, minus power for heater & blower | | PoE | IEEE802.3af | | | | Construction | Body: Aluminum, all hardware is 316 stainless steel
Endcaps: Cast aluminum
Mounting Bracket: Cast aluminum
Viewing Window: Tempered Glass | | Mounting Pattern (W x H) | 2 x 4.25" (51 x 108 mm) | | Pressure Relief Valve | 5 to 7 psi | | Schrader valve | Yes | | | | Blower | Yes (continuous) | | Effective Projected Area (EPA) | 99 sq inches (included wall mount) | | Heater | Yes | | Heater Activates At | 60°F (15.5°C) | | Heater Deactivates At | 80°F (27°C) | | IP Rating | IP67 | | Wind Velocity Resistance | 150 mph (240 kph) | | Operating Temperature | -58 to 158°F (-50 to 70°C) | | Certifications | CE, CUL, NEMA, RoHS, UL Listed, WEEE, REACH, PED | | | | Maximum Camera Length | 10" (250 mm) | | Mounting | Wall or Pole (Standard) | | Dimensions | 20 x 12 x 6" (510 x 305 x 153 mm) | | Weight | 10 lb (4.6 kg) (with mount and sunshield) |
