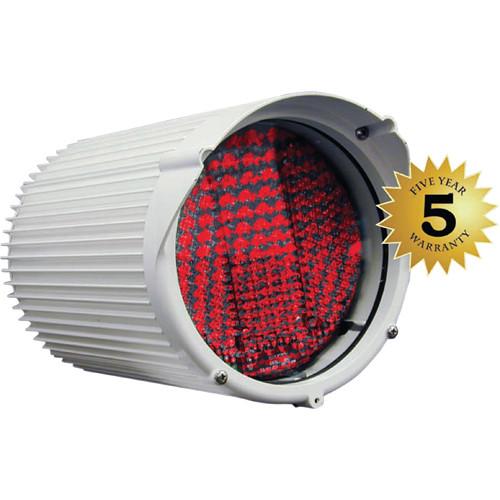

User Manual for Videolarm IR100-36N Fully Adjustable Infrared Illuminator - Click to enlarge the picture
Contents of the user manual for the Videolarm IR100-36N Fully Adjustable Infrared Illuminator
- Product category: Illuminators Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Illuminators
|
User manual for the Videolarm IR100-36N Fully Adjustable Infrared Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description The Videolarm IR100-36N is a powerful IR illuminator that offers adjustable settings for both the beam angle and IR power. This way, you can configure the IR beam for maximum effectiveness according to a specific application and so that the IR characteristics match the capabilities of the particular camera and lens in use. By lowering the IR output power you can also compensate for camera wash outs and hot spots while conserving energy. This unit is compatible with any Day/Night or B/W CCTV camera sensitive to IR light and, with its durable weather resistant design, can be safely used indoors or outdoors. - Adjustable Angle & Power
- With the twist of a flat-head screwdriver you can adjust the IR beam angle to 30°, 45°, or 60° so that you'll get broad or tight IR coverage. You also have 3 power settings to choose from (High/Medium/Low) in order to increase or decrease projection distance. By lowering the IR power you can compensate for camera wash outs and hot spots and at the same time conserve energy.
- Completely Covert
- This IR illuminator uses 940 nm LED technology, with the result that the LEDs are completely untraceable by the naked eye. This is an important factor for applications needing the camera to remain covert.
- Weather Resistant
- With its rugged, weather resistant construction, you can safely install this unit in an outdoor location in most weather conditions. Videolarm also provided it with an automatic fan for heat dissipation, and with a user replaceable fuse for surge protection. You'll also be pleased to know that the LEDs on this unit have a 20,000 hour life cycle, and that this unit is backed by a 5-year warranty.
UPC: 793821029939 In the Box Videolarm IR100-36N Fully Adjustable Infrared Illuminator - (Completely Covert) 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm IR100-36N Fully Adjustable Infrared Illuminator - in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm IR100-36N Specs | Type | 940 nm IR LED | | IR Operating Angle | Adjustable 30°, 45°, 60° | | IR Operating Distance | 100-330' (30-100 m) | | Construction | Extruded aluminum with polycarbonate trim ring | | Power Requirements | 15-30VAC or 18-30VDC | | Power Consumption | 42W | | Dimensions (WxHxD) | 7 x 7 x 11.5" (178 x 178 x 292mm) | | Weight | 3.5 lbs (1.6kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 15.0 x 9.9 x 9.8" |
