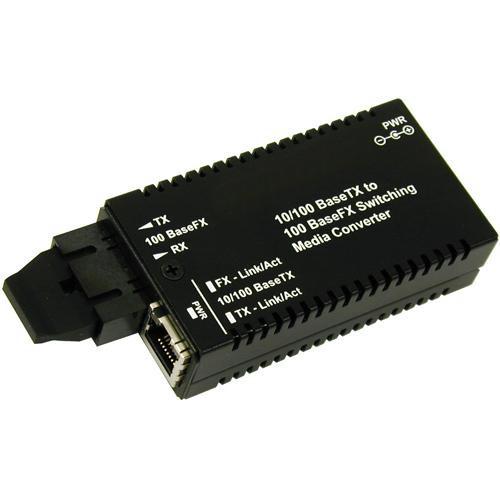

User Manual for Videolarm Mini-media Ethernet over Fiber Converter Click to enlarge the picture
Contents of the user manual for the Videolarm Mini-media Ethernet over Fiber Converter
- Product category: Signal Extenders Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Signal Extenders
|
User manual for the Videolarm Mini-media Ethernet over Fiber Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description The Videolarm Mini-media Ethernet over Fiber Converter is designed to fit most camera housings. It is used for connecting 10 mbps devices to 100 mbps devices. As the converter converts copper to fiber with the smallest available footprints, it has the capability of carrying large data and provides a space saving alternative.
With the UL-listed EF20N converter, you can integrate fiber optic cables into a 10/100 UTP (Ethernet) and benefit from the functionality of IP devices. While communicating data over miles of cables, the converter offers little-to-no noise transmission. It transmits Ethernet data via high-speed fiber optic cables.
The Mini-media Converter is available with the standard SC fiber interface and is meant to be used with multi-mode fibers which offer high bandwidth at high speeds. It includes a power adapter (120VAC to 12VDC). An optional EOF3C multi-mode cross-over cable offers a communication interface between SC fibers and ST. - Compact design and fits most camera housing
- Used for connecting the 10 mbps devices to 100 mbps devices
- Converts copper to fiber with the smallest available footprints
- Provides solution for integrating fiber optic cabling into a 10/100 UTP (Ethernet) environment
- Communicate data over miles of cabling
- Transmit Ethernet data through high-speed fiber optic cable
In the Box Videolarm Mini-media Ethernet over Fiber Converter 120VAC-12VDC Power Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm Mini-media Ethernet over Fiber Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm EOF2N Specs | Network Interface | Port: Ethernet (RJ-45)
Rates Supported: 100BaseT/10BaseT, full/half duplex with auto negotiation
Cable Type: Straight through or cross over, auto detect | | Fiber Connector | SC, Multi-mode fiber | | Power Requirements | 12VDC, 400mA (includes power adapter) | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 1.8 x 3.3 x 8.5" (46 x 84 x 216mm) | | Weight | 2 lbs (907g) |
