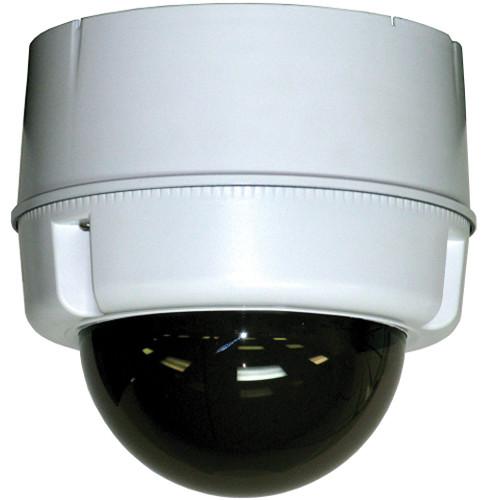

User Manual for Videolarm PoE Ready Outdoor Surface-Mount Dome Housing Click to enlarge the picture
Contents of the user manual for the Videolarm PoE Ready Outdoor Surface-Mount Dome
- Product category: Housings Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Housings
|
User manual for the Videolarm PoE Ready Outdoor Surface-Mount Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description The Videolarm PoE Ready Outdoor Surface-Mount Dome Housing for PoE enabled fixed and PTZ Cameras is incorporated with the DPA (Dynamic Power Allocation) system that distributes power between the camera and the heater / blower. This ensures a smooth camera operation across the full range of the camera's conditions as it designates the maximum incoming power to the camera and the remaining to the heater / blower for maximum operating temperature range.
Being PoE Plus IEEE802.3at compliant, the housing gets power from the network itself without any extra wiring for auxiliary power outlets, thereby making the installation easy and cost-effective. Only a single PoE cable is required to connect to DPA (Dynamic Power Allocation) system. The housing is compatible with cameras from Axis, Panasonic, Toshiba, Arecont, IQivision, and Sony. Note: Please refer to specifications for a complete list of compatible cameras. - DPA (Dynamic Power Allocation) System
-
- Distributes power between the camera and the heater / blower
- Ensures a smooth camera operation across the full range of the camera's conditions as it designates the maximum incoming power to the camera and the remaining to the heater / blower for maximum operating temperature range
- PoE Plus IEEE802.3at Compliant
-
- Housing gets power from the network itself without any extra wiring for auxiliary power outlets thereby making the installation easy and cost-effective
- Requires only a single PoE cable to connect to DPA (Dynamic Power Allocation) system
- Compatibility
-
- Can be used with PoE enabled fixed and PTZ cameras
- Compatible with cameras from Axis, Panasonic, Toshiba, Arecont, IQivision, and Sony
In the Box Videolarm PoE Ready Outdoor Surface-Mount Dome Housing Midspan Heater / Blower Outdoor Pendent Shroud for SM5 Enclosures 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm PoE Ready Outdoor Surface-Mount Dome Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm SM5 Specs | IP Rating | IP66 | | NEMA Rating | 4X | | Effective Projected Area (EPA) | 83" ˆ2 (210.82 cm ˆ2) | | Maximum Distance | Maximum Distance from Midspan/PoE Switch: 328.1' (100m) | | Power Requirements | 100/240Vac, 50-60 Hz (midspan input) | | PoE Power Supply Type | 48-56Vdc, 33 watts | | PowerDsine | 9000G, 9001G, 9501G | | Philong | PoE36*, PoE125*, PoE30*, PoE75 | | Construction | Extruded aluminum polycarbonate
Trim Ring/End Caps: Polycarbonate
Window/Dome Construction: Polycarbonate | | Certifications | CE, RoHS, WEEE | | Compatible Cameras | Arecont: AV13**/21**/28**/31**/51**/10005
Axis: M10**, 212,216
IQivision: IQeye 5xx/7xx series
Panasonic: BB-HCM381/280, WV-NF284/302, WV-NS202, WV-SC385
Sony: SNC-DH140/240
Toshiba: IKWB21A | | Operating Temperature | -20 to 120° F (-29°C to 49° C)
Heater Activates At: 60° F +/- 8° (15° C +/- 8°)
Heater Deactivates At: 80° F +/- 8° (27° C +/- 8°) | | Dimensions | 8.6 x 8.6 x 8.4" (219 x 219 x 214 mm) | | Weight | 3 lb (1.4 Kg) |
