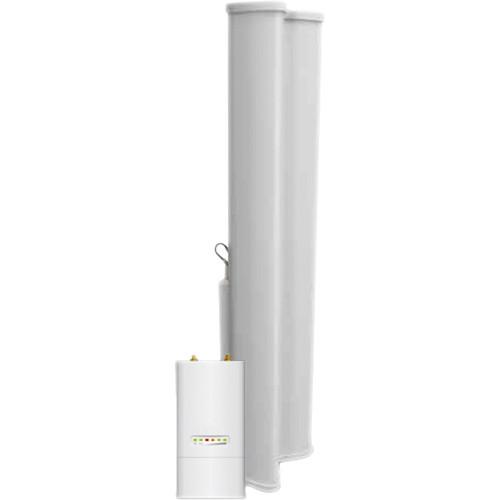

User Manual for Videolarm Wireless MIMO Access Point Click to enlarge the picture
Contents of the user manual for the Videolarm Wireless MIMO Access Point
- Product category: Wireless Transmission Videolarm
- Brand: Videolarm
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videolarm Wireless Transmission
|
User manual for the Videolarm Wireless MIMO Access Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videolarm product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videolarm user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videolarm product will considerably shorten its lifespan!
|
Product description The Videolarm Wireless MIMO Access Point (2.4 GHz) enables wireless transfer of video / data between IP cameras and devices on a wired network. It features MIMO technology that uses multiple signal paths for enhanced efficiency and throughput. The MIMO Access Point features 120° sectional antennae and supports TCPI/IP speeds in excess of 150 Mbps. - Enables wireless transfer of video / data between IP cameras and devices on a wired network
- Supports TCPI/IP speeds in excess of 150 Mbps
- Flexible installation options
- Secondary Ethernet port with POE output
- Includes pole mount hardware
In the Box Videolarm Wireless MIMO Access Point (2.4 GHz) 120° Sectional Antennae Pole Mount Hardware 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videolarm Wireless MIMO Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideolarm VLRM24 Specs | | | Frequency Range | 2.3-2.7 GHz | | Gain | 15.0-16.0 dBi | | Polarization | Dual Linear | | Cross-pol Isolation | 28dB min. | | Max VSWR | 1.5:1 | | Hpol Beamwidth | 123° (6 dB) | | Vpol Beamwidth | 118° (6 dB) | | Elevation Beamwidth | 9° | | Electrical Downtilt | 4° | | ETSI Specification | EN 302 326 DN2 | | Windloading | 160 mph | | | | RF Connector | 2x RPSMA (Waterproof) | | Enclosure Characteristics | Outdoor UV Stabalized Plastic | | Mounting Kit | Pole Mounting Kit included | | Maximum Power Consumption | 6.5 Watts | | Power Supply | 24V, .5A POE Supply Included | | Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) | | Operating Temperature | -22 to 167°F (-30 to 75°C) | | Operating Humidity | 5 to 95% Condensing | | Shock and Vibration | ETSI300-019-1.4 | | Weight | 8.8 lb (4 kg) | | Dimensions | 27.6 x 5.7 x 3.7" (70 x 14.5 x 9.3 cm) |
