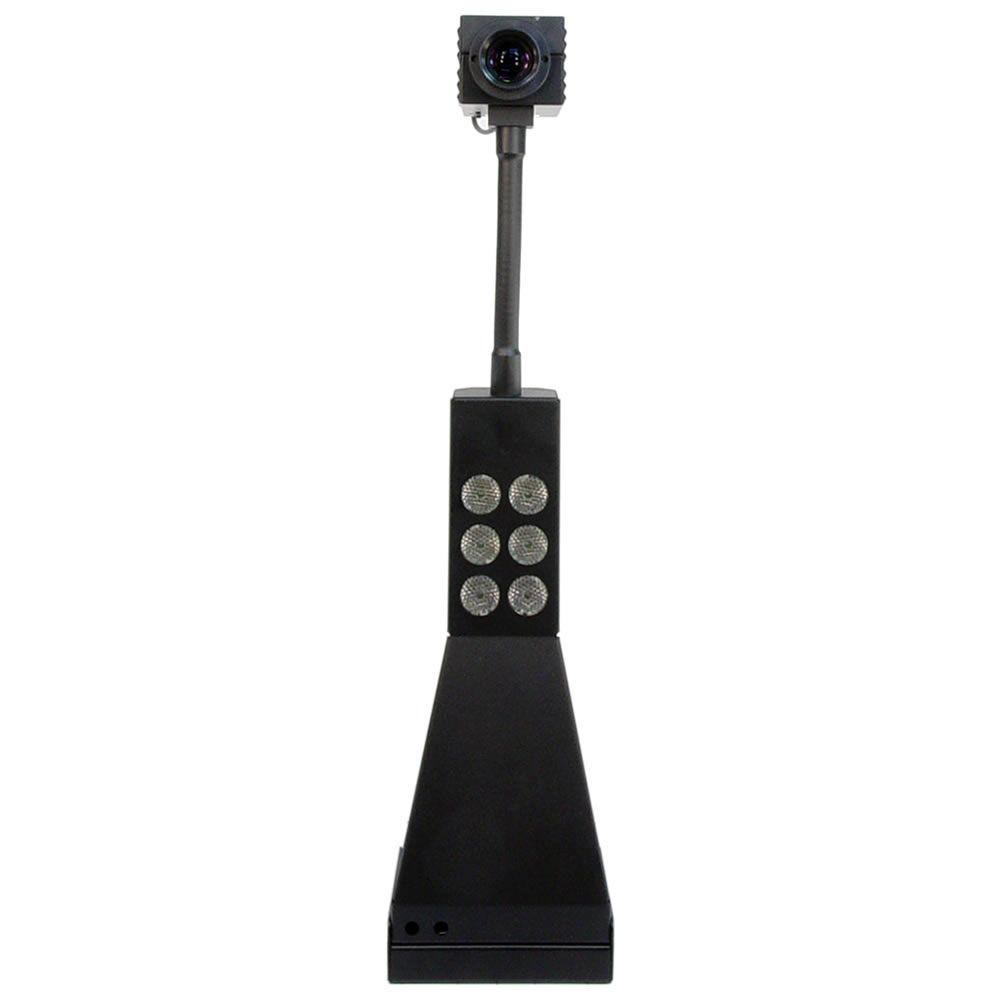

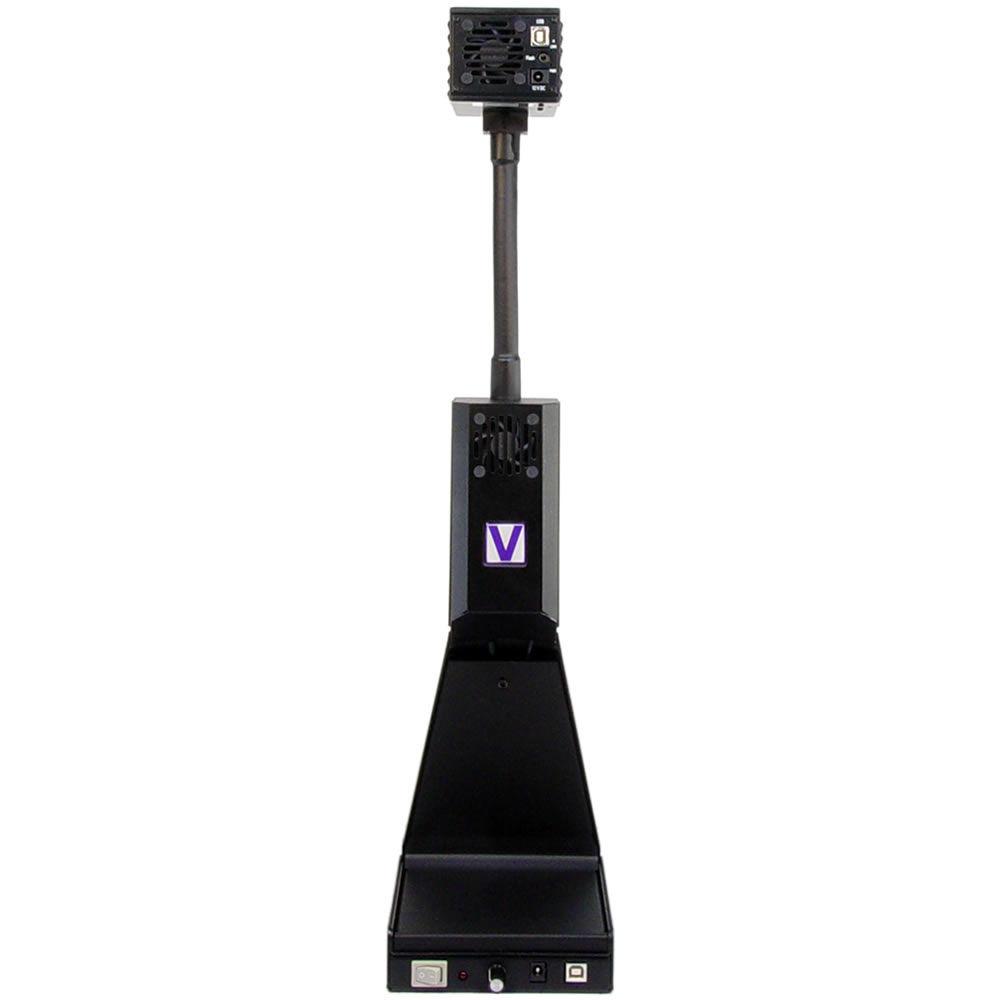

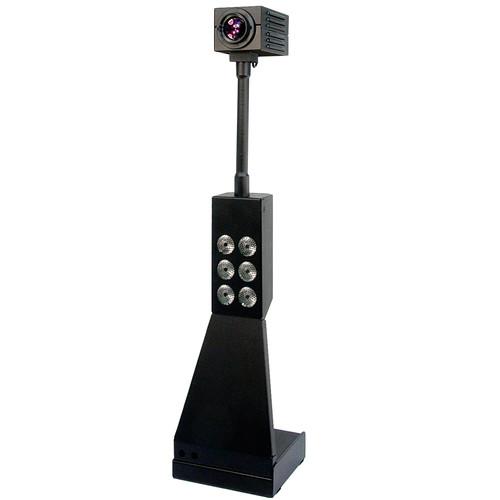

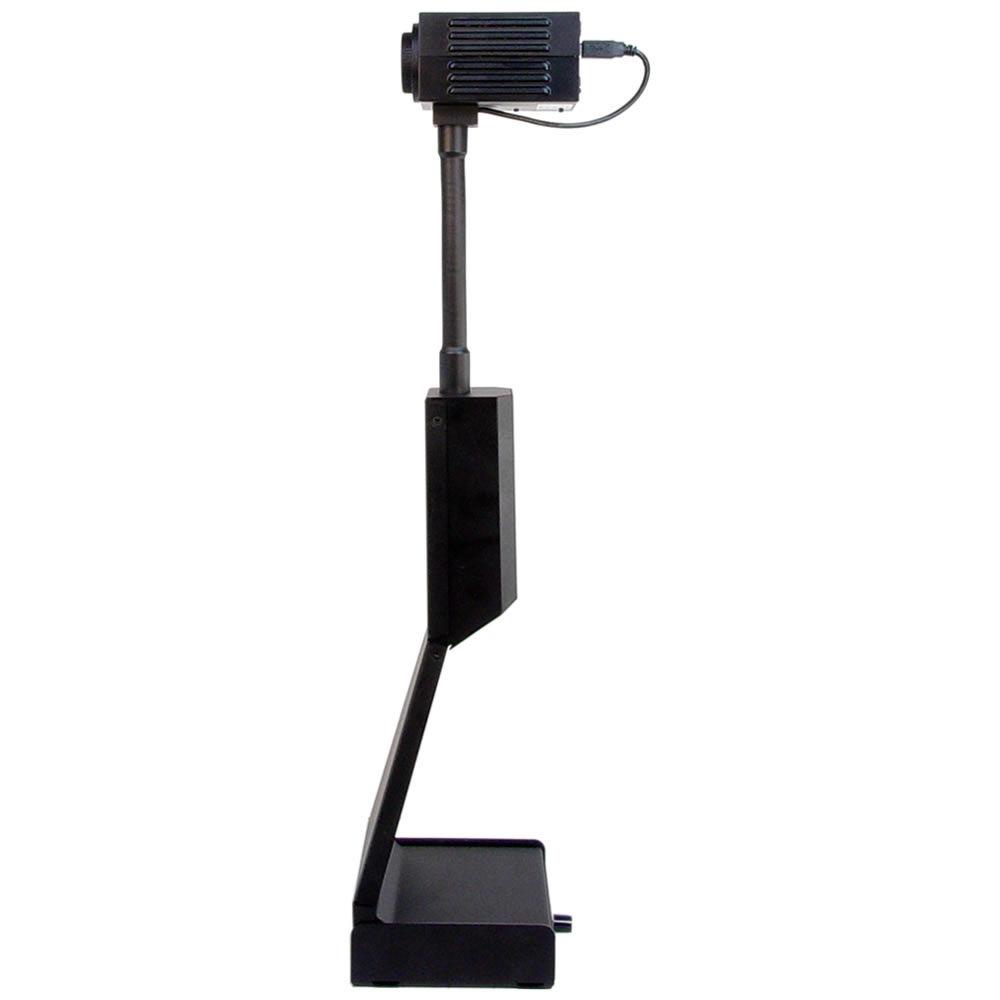

User Manual for Videology 24Z704USB-SYS 2MP Autofocus USB Zoom Camera Module with LED Illuminator Click to enlarge the picture
Contents of the user manual for the Videology 24Z704USB-SYS 2MP Autofocus USB Zoom
- Product category: ID Card Printer Accessories Videology
- Brand: Videology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videology ID Card Printer Accessories
 |
User manual for the Videology 24Z704USB-SYS 2MP Autofocus USB Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videology product will considerably shorten its lifespan!
|
Product description Designed to be easily placed on a table, this 24Z704USB-SYS 2MP Autofocus USB Zoom Camera Module with LED Illuminator from Videology will help you more easily create ID badges with any FIPS 201, WDM, TWAIN, and DirectX/DirectShow compliant system. This unit features a 2MP 1/3" CMOS progressive scan sensor to capture video with an 800 TVL resolution as well as 1280 x 1024 resolution stills. Along with this, it has a 10x optical zoom lens with autofocus capabilities and a dimmable six LED array that will help illuminate subjects without creating unwanted shadows or hot spots. For connection to a computer it uses a USB 2.0 interface and for positioning and durability the camera is mounted on a flexible gooseneck. Made from steel, this system is designed to last. Additionally, it comes with SFT-10002 Viewer software that has WDM, DirectX, and TWAIN compliant drivers. - Camera features sensitivity of 1 lux, or 30 IRE.
- It has an always on flickerless mode as well as other features, including contour enhancement for text or images, a mirror mode, and a positive/negative mode. Special functions include freeze, H/V reverse, save and recall images.
- USB video and stills can be captured via compatible software and the camera will transmit uncompressed YUV422 video.
In the Box Videology 24Z704USB-SYS 2MP Autofocus USB Zoom Camera Module with LED Illuminator AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videology 24Z704USB-SYS 2MP Autofocus USB Zoom Camera Module with LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideology 24Z704USB-SYS Specs | Image Sensor | 2 MP 1/3" CMOS progressive scan | | Resolution | 800 TVL
Active Pixels: 1280 x 1024
Total Pixels: 1600 x 1200 | | Pixel Size | 3.0 x 3.0 µm | | Scanning Frequency | 19.5 kHz x 15 Hz | | Sensitivity | 1 lux / 30 IRE | | Signal-to-Noise Ratio | Maximum: <40 dB | | Shutter Speed | 1/20 to 1/1000 sec | | White Balance | Auto
Manual | | Brightness | Manual | | Iris | Auto
Manual | | Image Format | Uncompressed YUV422 | | Illumination | 6 x LEDs | | Computer Interface | USB 2.0 | | OS Compatibility | Windows XP SP2, Vista, 7 (32/64-bit) | | System Requirements | 2.3 GHz Intel Pentium IV processor or better
1 GB hard disk space
USB 2.0 port
DirectX 9.0c or later | | Power Requirements | 10-14 VDC | | Power Consumption | Maximum: 3 A | | Operating Conditions | Temperature: 14 to 122°F / -10 to 50°C
Recommended Temperature: 41 to 104°F / 5 to 40°C | | Dimensions | 5.3 x 23.5 x 4.8" / 13.5 x 59.7 x 12.2 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 28.5 x 8.5 x 8.5" |
