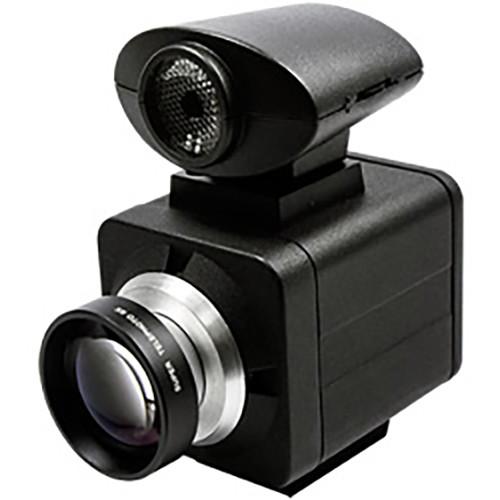

User Manual for Videology 5MP USB 2.0 Camera with Synchronized Flash and Autofocus Click to enlarge the picture
Contents of the user manual for the Videology 5MP USB 2.0 Camera with
- Product category: ID Card Printer Accessories Videology
- Brand: Videology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videology ID Card Printer Accessories
|
User manual for the Videology 5MP USB 2.0 Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videology product will considerably shorten its lifespan!
|
Product description Capture the images you need with consistency and quality by adding a 5MP USB 2.0 Camera with Synchronized Flash and Autofocus from Videology to your system. Equipped with a 5MP 1/4" progressive scan sensor, users will be able to capture JPEG stills at up to 2592 x 1944 resolution as well as output video at this high resolution at 2.5 fps. The lens provides a field of view of 40 x 30° and thanks to an LED flash with manual control dial you can get it setup to illuminate subjects with ease. Also, the video output can be either compressed MJPEG format or YUV 422 raw data.
Being UVC and TWAIN compliant, this USB 2.0 connected camera is easily integrated into many standard systems. It also has a full SDK available for more specific customer applications. Along with this, it has the ability to have many image parameters adjusted via software as well as support for auto and manual focus. For simplicity, the camera is powered through the USB connection and it has a 1/4"-20 thread on the base for mounting to most standard tripods and supports. In the Box Videology 5MP USB 2.0 Camera with Synchronized Flash and Autofocus 10' USB 2.0 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videology 5MP USB 2.0 Camera with Synchronized Flash and Autofocus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideology 24C708AF Specs Image Sensor | 1/4" Progressive Scan | Pixel Size | 1.4 x 1.4 μm | Resolution | 2592 x 1944 | Field of View (H x V) | 40 x 30° | Sensitivity | 600 mV/lux-sec | Frame Rate | 30 fps at 320 x 240, 352 x 288, 640 x 480 15 fps at 800 x 600 10 fps at 1024 x 768 7.5 fps at 1280 x 720 5 fps at 1600 x 1200, 1920 x 1080 2.5 fps at 2048 x 1536, 2592 x 1944 | Dynamic Range | 68 dB | Signal-to-Noise Ratio | 36 dB | Shutter Type | Electronic rolling shutter | Data Format | YUV 422 | File Formats | JPEG MJPEG | Flash | LED with manual control Connection for second flash | Gamma | Selectable | Scan Mode | Progressive | White Balance | Auto Manual | Focus | Auto Manual | Computer Interface | USB 2.0 | Cable | 10' / 3 m | Tripod Mount | 1/4"-20 | OS Compatibility | Windows XP SP2, Vista, 7, 8, 10 (32/64-bit) macOS 10.4.3 Linux 2.6.26 or later | Power Requirements | 5 VDC (USB bus power) | Power Consumption | Maximum: <0.5 mA | Certifications | UVC TWAIN | Operating Conditions | Temperature: 5 to 131°F / -15 to 55°C Humidity: 20 to 93% | Storage Conditions | Temperature: -13 to 158°F / -25 to 70°C Humidity: 0 to 98% | Dimensions | 2 x 3.9 x 3" / 50 x 100 x 75 mm | Weight | 5.4 oz / 154 g | | Package Weight | 1.15 lb | Box Dimensions (LxWxH) | 8.8 x 5.3 x 2.4" |
